SmartAligner Antenna Alignment Tool with Case by Multiwave

Rating:
100% of 100
SKU: SMARTALIGN
Status:
Typically ships same day if ordered by 7pm EST
$5,995.00

TheSmartAligner Antenna Alignment Tool by Multiwave is the first foldable GPS Antenna alignment tool equipped with GLONASS for increased performance.

SmartAligner Antenna Alignment Tool by Multiwave

1-Year easy financing available. Click Here to see more information.

Click on the "Downloads" tab to view more info about the SmartAligner, such as brochures, specs, and other info. Also, check out the informative video under the "Video" tab.

Features:

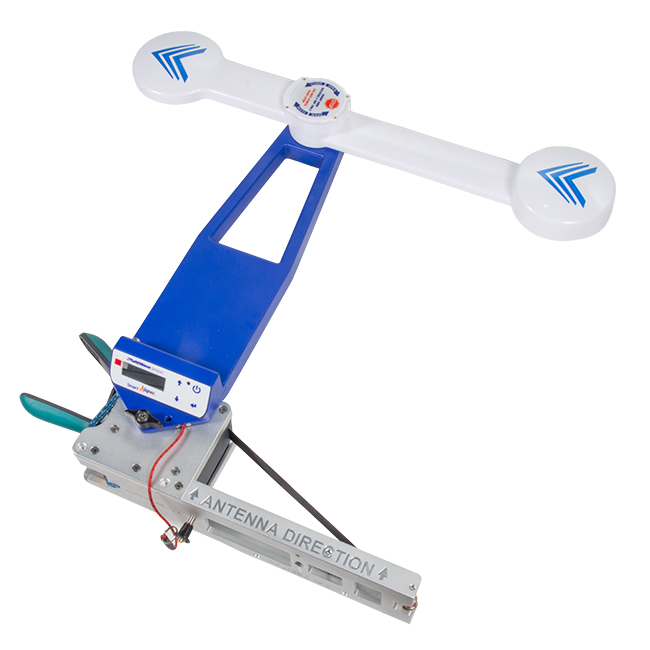

  • First foldable GPS Antenna Alignment Tool

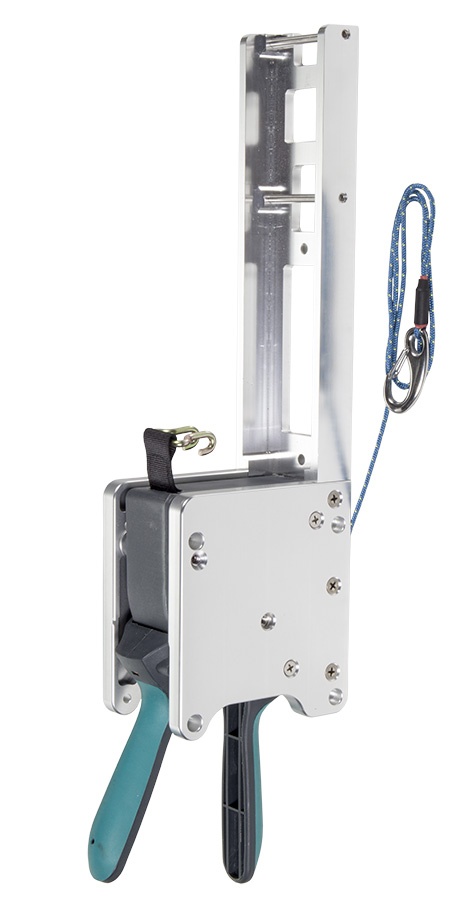

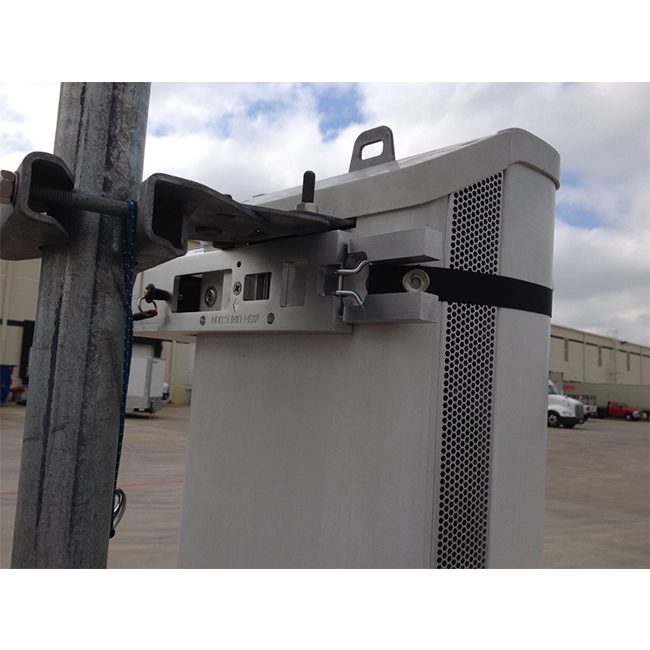

  • Universal Mounting Bracket - only one bracket required

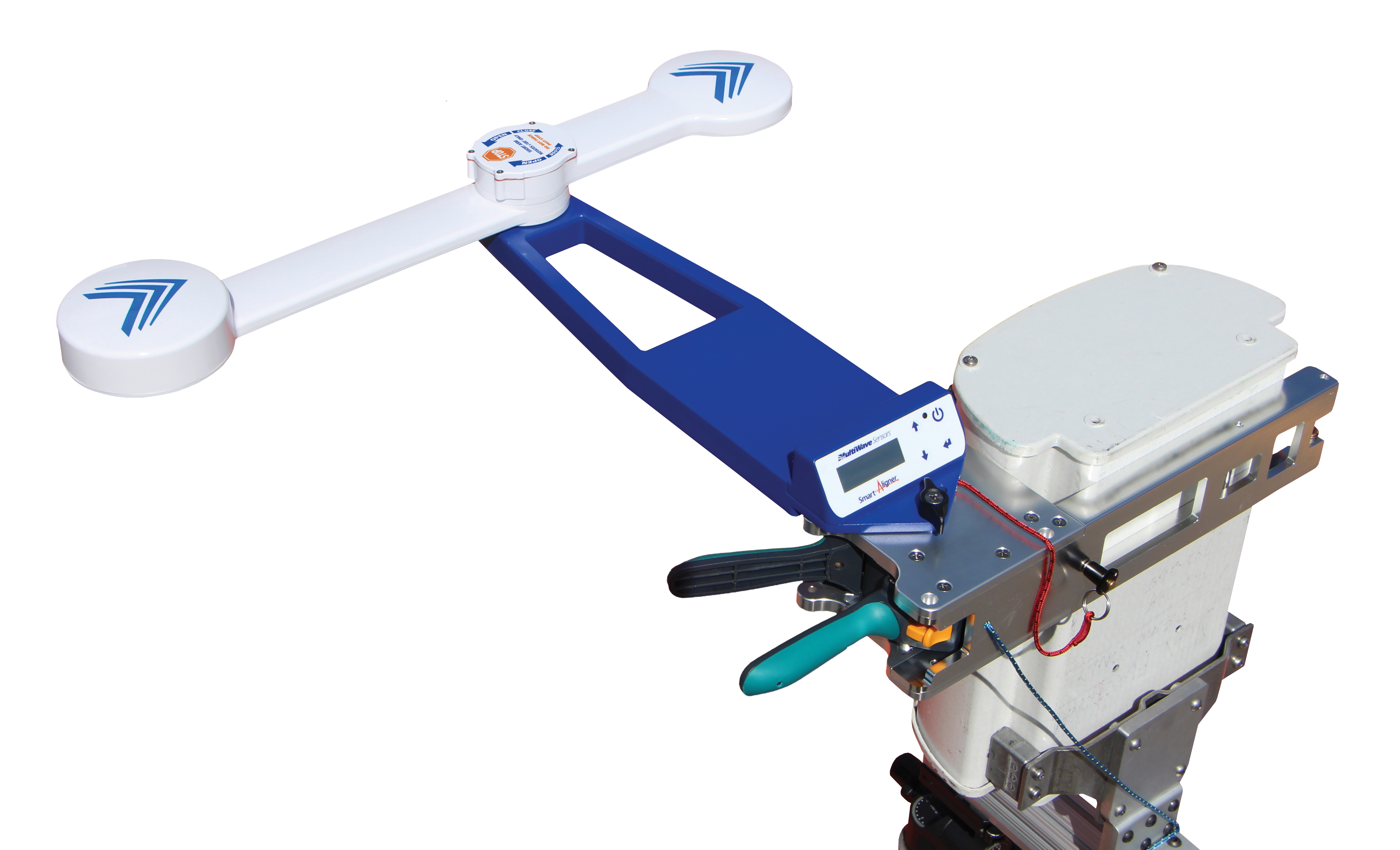

  • Multiple antenna mounting configurations for the most demanding spatial and RF conditions

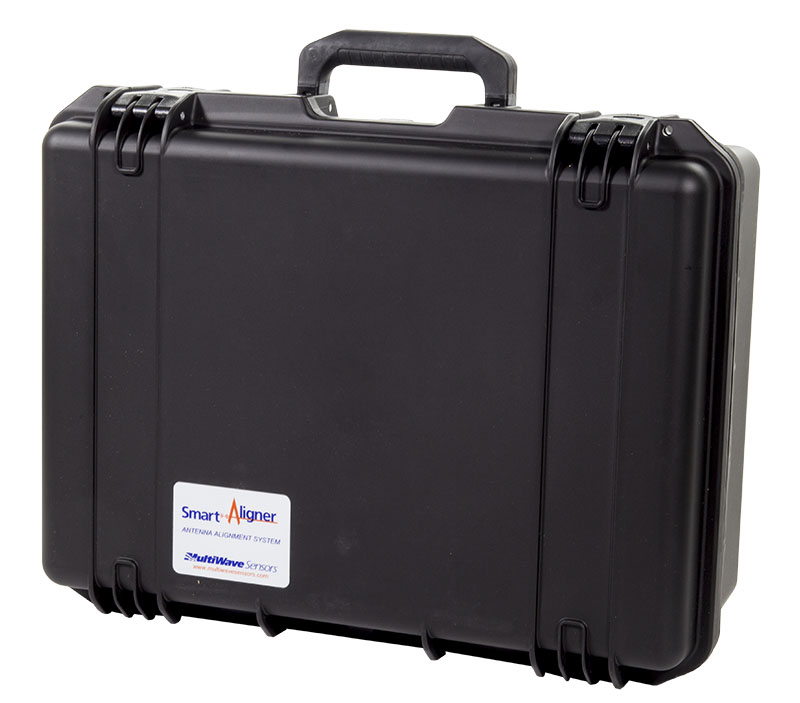

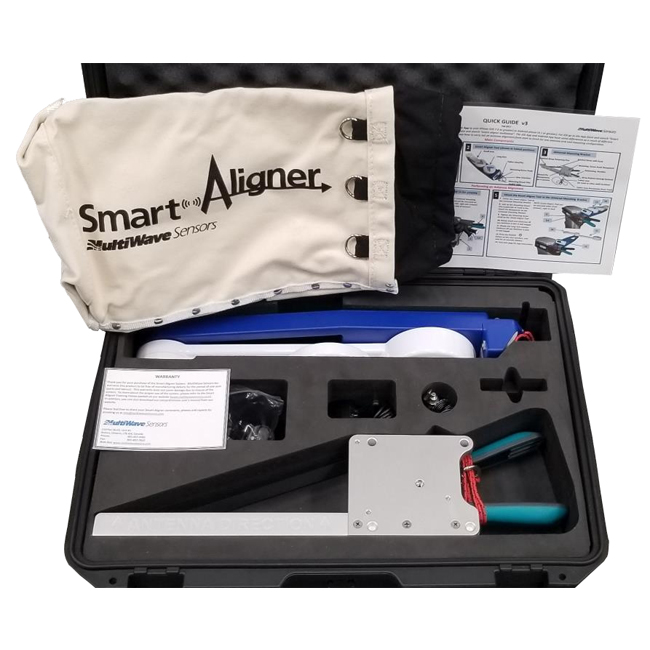

  • Tool and Bracket fit into Ruggedized Smart Case (Included)
  • Carry on baggage acceptable size
  • Included top-closing canvas bolt bag to carry the Smart Aligner
  • GLONASS (Global Navigation Satellite System) enabled for increased performance
  • Free smartphone app
  • Pre-site setup using app:
    • Azimuth and Tilt targets
    • Sector/Position
    • Antenna types
  • Measure, Verify and Save data using app
  • Create Report from app
    • Include up to four photos in the report
    • Email Report directly from app
    • Database-ready data
  • Import emailed Site data directly to app

 Optional Accessories:

Specifications:

  • Azimuth accuracy: 0.5º
  • Tilt and roll accuracy: 0.1º
  • Position accuracy: 60 cm with SBAS
  • Start up time: < 30 seconds
  • Internal battery: Rechargeable lithium ion
  • Operation time: 7 hrs (over 80 alignments)
  • Battery charger: AC wall charger and DC car charger
  • Dimensions: 19”x 4.5”x 3” (48.3 cm x 11.4 cm x 7.6 cm)
  • Weight: 4 lb (1.8 kg)
  • Universal Mounting Bracket (patented)
  • Dimensions: 19”x 5”x 3” (48.3 cm x 12.7 cm x 7.6 cm)
  • Weight: 5 lb (2.3 kg)
  • Carrying Smart Case (Included, can contain all components)
  • Dimensions: 21”x 16”x 8.5” (53.3 cm x 40.6 cm x 21.6 cm)
  • Weight: 12 lb (5.4 kg)
  • TOTAL WEIGHT 21 lb (9.5 kg)

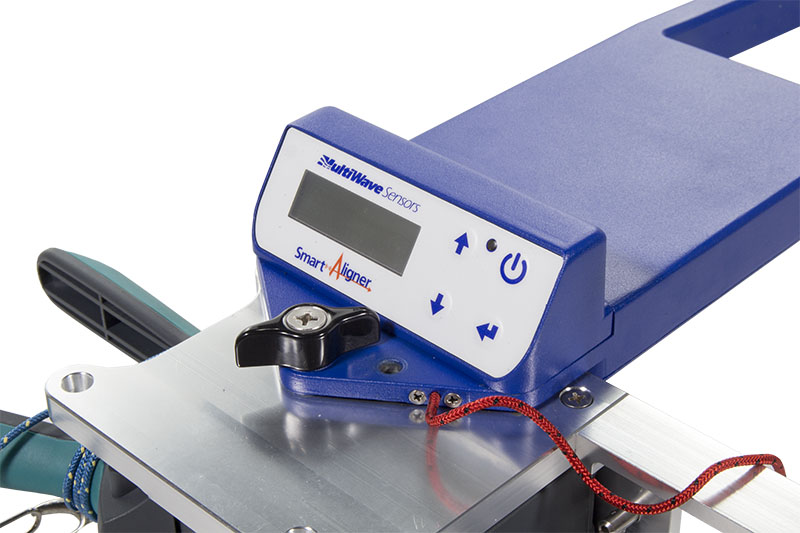

  • LED backlit display: User interface and display
  • Wi-Fi: Smart Aligner to user’s mobile device
  • Connectivity: Smartphone/Tablet – iOS or Android
  • Cable interface: Serial RS-232
  • Report formats: JPEG (screenshot), PDF or CSV
  • Photos: Embedded in PDF report
  • Operational temp: -22º F to +158º F (-30º C to + 70º C)
  • Sealing: NEMA 4X, IP67
  • Shock/vibration: IEC 68-2-27 / IEC 68-2-6
  • EMI: FCC Part 15 Subpart B: 2008 and ICES-003:2004
  • Approvals: CE and FCC

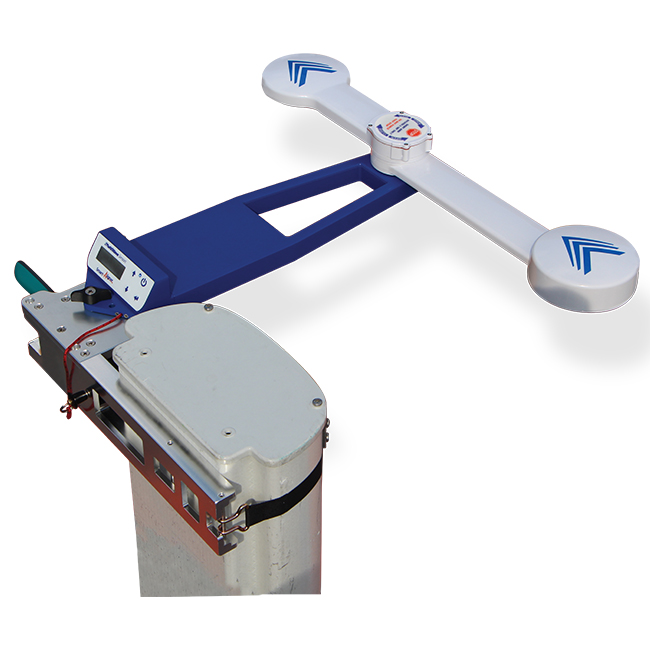

Mounting Configurations to Antenna:

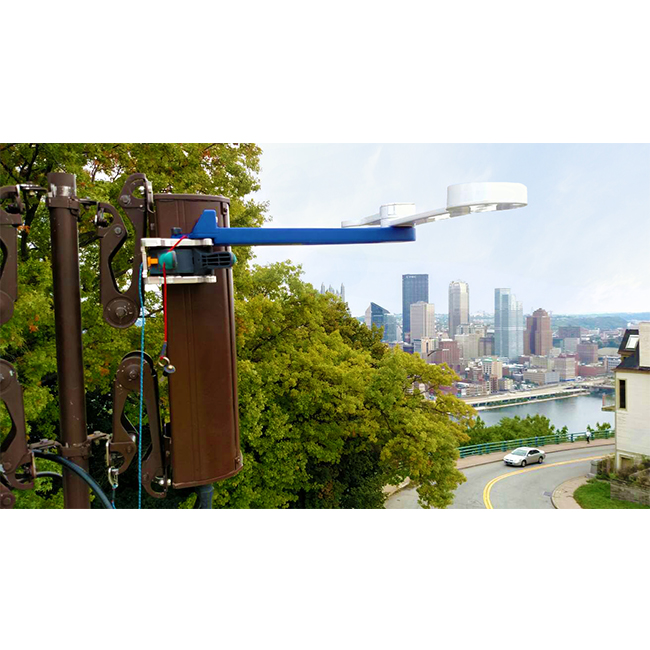

  • Multiple offset positions from bracket: forward, side, backward on left or right side of the antenna

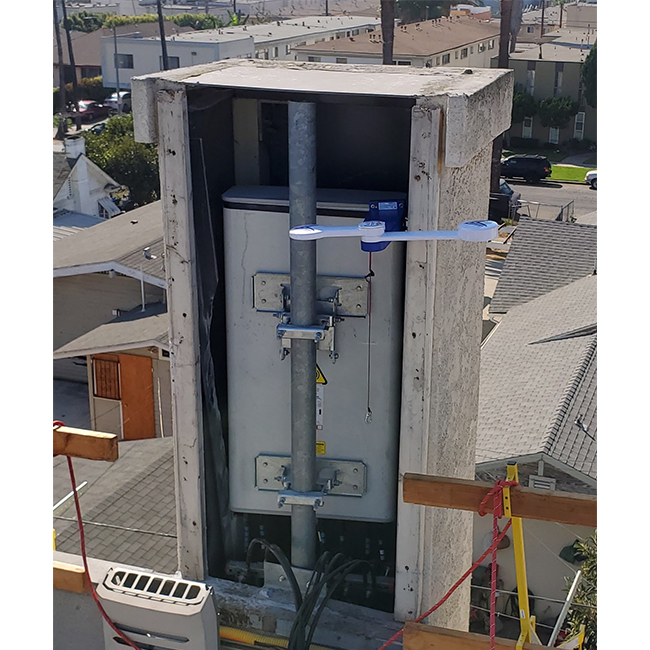

  • Multiple arm positions: user can orientate the arms according to physical limitations
  • Offset and arm position tracking: sensors track tool configuration and adjust the azimuth and tilt relative to the antenna
  • Number of mounting configurations: 18

Modes of Use (Smart Aligner App):

  • Quick measure: real-time display of antenna orientation information with an option to save a screenshot of the data
  • Site survey: set up of site and antenna information
  • Align antenna: real-time display of antenna orientation information with the option to verify the alignment
  • Verify: verify the alignment - ability to ”Save” the alignment information after verification
  • Report mode: create PDF reports from verified alignments or historically saved sites - automatic attachment to an email message
  • Import profiles: import CSV file with site and antenna information
  • Export profiles: export completed CSV file with appended measured alignment information - automatic attachment to an email message

Approved Carriers, Turf Vendors, and Firms

  • AT&T
  • Sprint
  • Verizon - most regional areas
  • MetroPCS
  • GOGO (formerly Aircell)
  • Ericsson
  • Crown Castle
  • Black & Veatch
  • Bechtel

For any carrier, turf vendor, or firm not listed at this point in time, Multiwave assures that the SmartAligner will meet or exceed any carrier's requirements. If there is any question with a Carrier over the ability of the SmartAligner to perform alignments within specification, Multiwave will represent the customer in any way possible to rectify the situation.

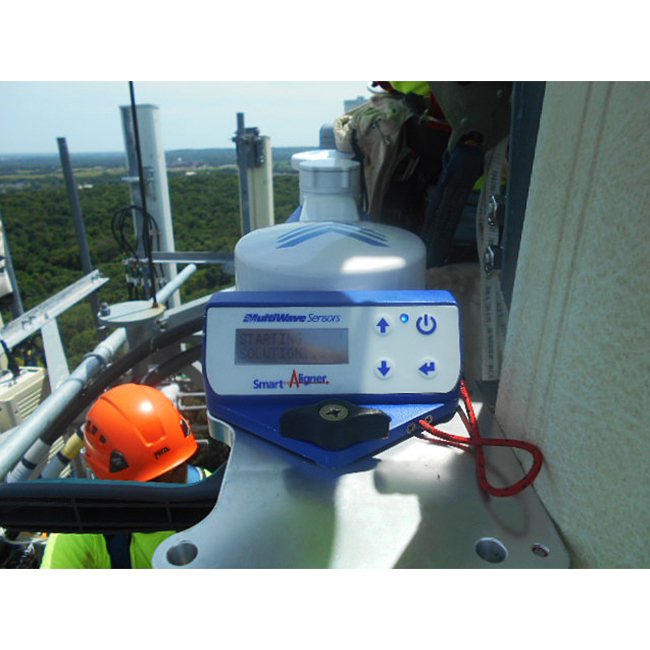

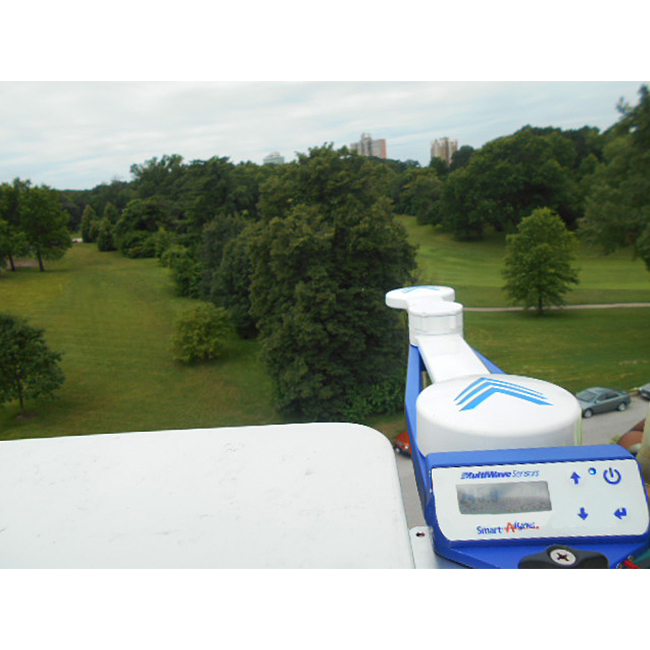

The SmartAligner Antenna Alignment Tool by Multiwave is a GPS-based compass designed to effectively and efficiently align your antennas in real time. The SmartAligner solution is an antenna alignment tool designed for ease of use and unparalleled accuracy that provides a True North or Grid North azimuth measurement, Tilt, Roll, and Position. Once the system is mounted to the antenna, it is simply turned on. From there the user interface is the full-featured app on any iOS and Android smart device.

Reporting with this antenna aligner is as simple as a few clicks with the report being able to be emailed directly from the app. The system has been tested in the harshest RF live antenna environment while still maintaining its accuracy. The SmartAligner solution is an accurate, fast, and scalable antenna alignment tool creating an effective solution for all your alignment needs.

More Information
SKU MW-SMARTALIGN W/CASE
Manufacturer Multiwave Sensors
Manufacturer Model SMARTALIGN
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
