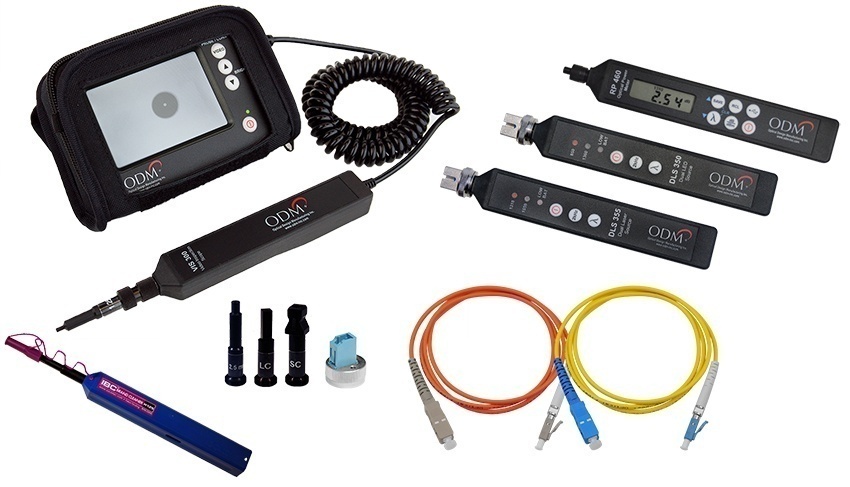

ODM General Test and Inspection Kit

Includes:

• DLS 350 | Dual LED Source 850nm/1300nm with SC Connector output
• DLS 355 | Dual Laser Source 1310nm/1550nm SC Conn.
• RP 460 | Power Meter w/ Zero dB/Set Ref, 1000 data point store & USB download
• VIS 300 | Video Inspection Scope with 4 inspection tips, 3.5” monitor w/USB and InSpec Software
• AC 029 | LC Adapter for RP460 Optical Power Meter
• AC 300 | CR2 Battery Kit / 5 per pack
• AC 500 | LC-SC, SM, 9/125 Fiber, 1 Meter Cable
• AC 502 | LC-LC, SM, 9/125 Fiber, 2 Foot Cable
• AC 550 | LC-SC, MM 50/125 fiber
• AC 552 | LC-LC, MM 50/125 fiber
• AC 600 | SC-SC Simplex Adapter
• AC 602 | LC-LC Duplex Adapter
• AC 800 | Two (2) USB cables
• AC 089 | One-Click Connector Cleaner
• AC 012 | ODM 17” Hard Carry Case
• CK 125 | Cleaning Kit - fiber wash pen, wipes, 1.25mm swabs, 2.5mm swabs

Features:

• dB loss/dBm testing
• Cleaning tools
• Closeout report software

ODM’s TTK 500 provides test technicians and contractors with high-end hardware and software to guarantee industry standard compliance in fiber optic-based telecommunications. The TTK 500 contains all equipment necessary to inspect, clean, and test fiber optic cables, while ODM’s proprietary software allows for professional closeout reporting.

The VIS 300 Monitor and Fiber Inspection Scope allow testers to evaluate and grade connector endfaces using IEC standards before joining fibers, guaranteeing a clean and reliable optical connection. To properly clean connector endfaces that fail to meet the IEC standard, the TTK 500 contains a complete system of “one-click” dry cleaners and the SqR Cleaning Pad with Fiber Wash Pen for wet/dry cleaning. When used correctly, these tools can clean endfaces to meet the IEC 61300-3-35 industry standard.

The RP 460 Optical Power Meter, when used in conjunction with the DLS 355 or DLS 350 Light Sources, offers complete end-to-end dB loss readings for the most commonly used transmission wavelengths for wireless carriers. The RP 460 stores thousands of readings in non-volatile memory, so technicians can be sure that all data is secure. The Optical Power Meter can be used in conjunction with InSpec™ software to provide live readings for image archiving and closeout loss reports.

Additional Test Jumpers Sold Seperatly:

• ODM SC-LC to LC-LC Multi-Mode Test Cable
• ODM SC-LC to LC-LC Single Mode Test Cable
