Model#: S-209
Stock#: C-CY-1018428
$13.99 to $258.00
FREE SHIPPING OVER $75!
Please select an option below
Model#: S-209
Stock#: C-CY-1018428
$13.99 to $258.00
FREE SHIPPING OVER $75!
Please select an option below

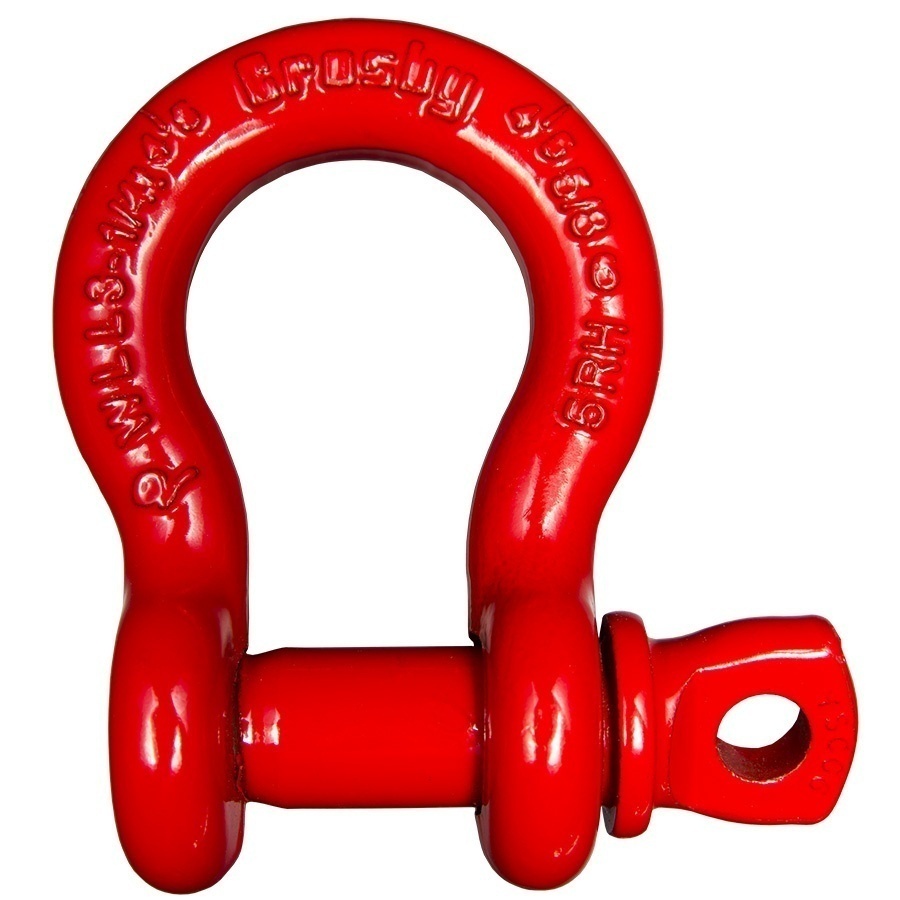

Crosby's Screw Pin Shackles feature the working load limit and grade "6" permanently marked on each. These Crosby shackles are quenched and tempered, and fatigue rated to offer strength and durability for lifting applications. Crosby Shackles and clevises meet the requirements of the Federal Specification RR-C-271D, Type IVA.
Crosby Self-Colored S-209 Screw Pin Shackle Chart
|
PART |
DIAMETER |
WLL |
WEIGHT |
|
1018428 |
3/8” |
1 ton |
0.31 lbs |
|
1018464 |
1/2” |
2 tons |
0.72 lbs |
|
1018482 |
5/8” |
3.25 tons |
1.37 lbs |
|
1018507 |
3/4” |
4.75 tons |
2.35 lbs |
|
1018525 |
7/8” |
6.5 tons |
3.62 lbs |
|
1018543 |
1” |
8.5 tons |
5.03 lbs |
|
1018561 |
1-1/8” |
9.5 tons |
7.41 lbs |
|
1018589 |
1-1/4” |
12 tons |
9.5 lbs |
|
1018605 |
1-3/8” |
13.5 tons |
13.53 lbs |
