Home > Crosby Galvanized Screw Pin Shackles

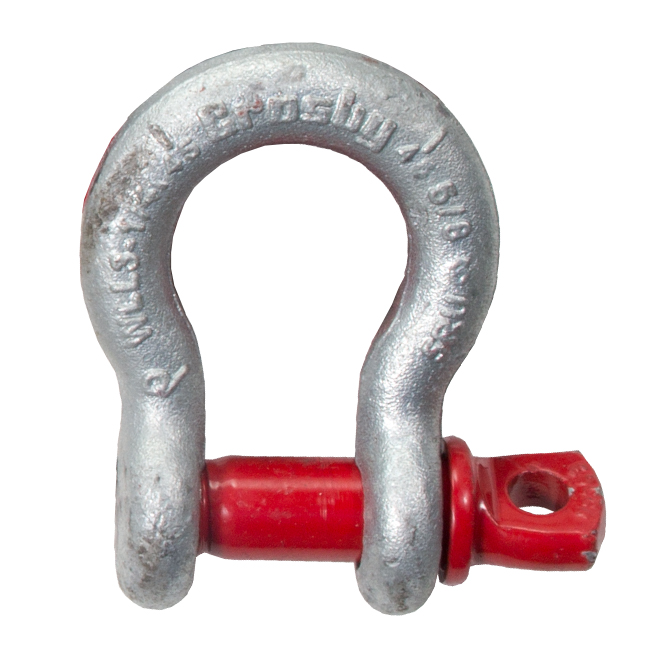

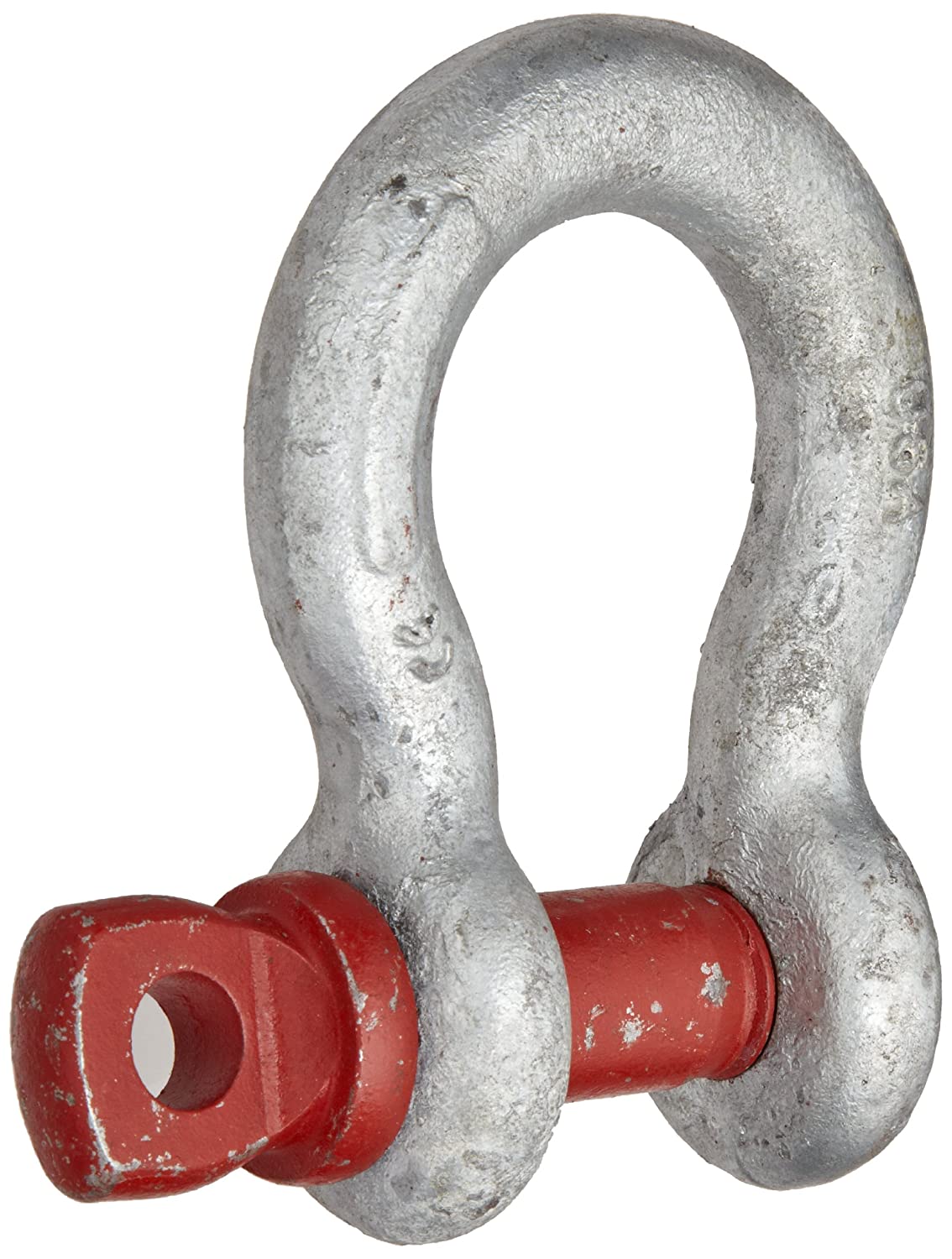

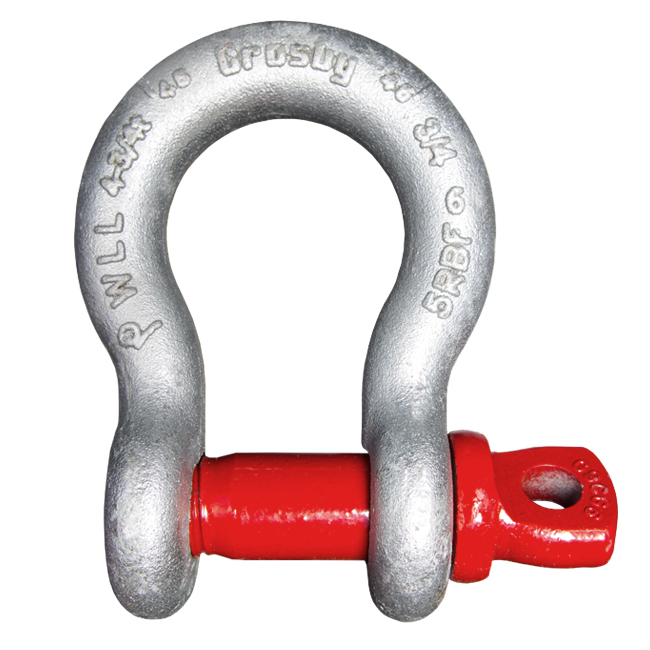

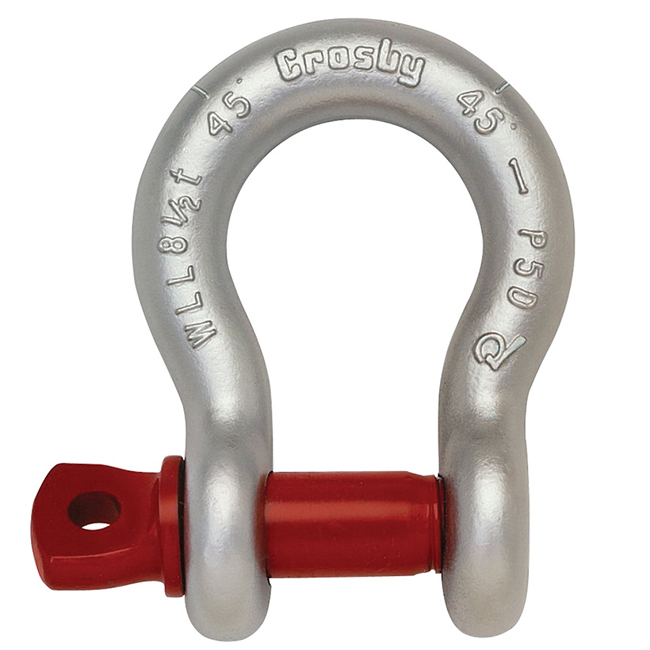

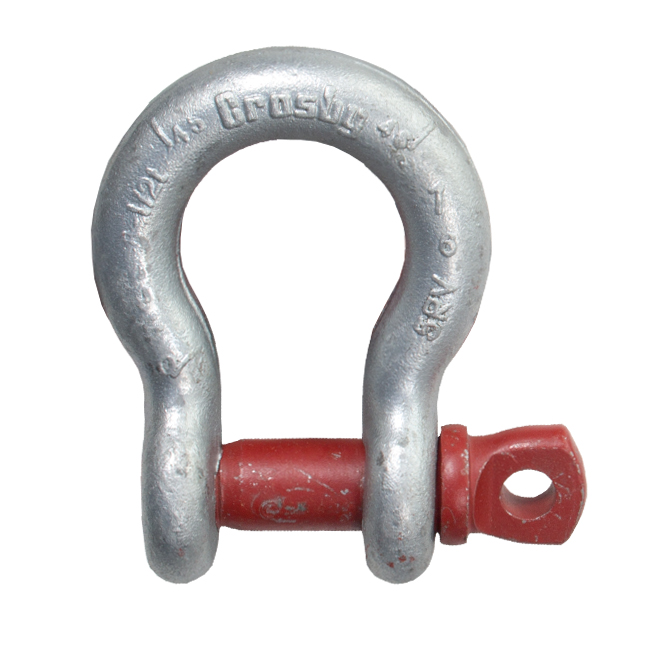

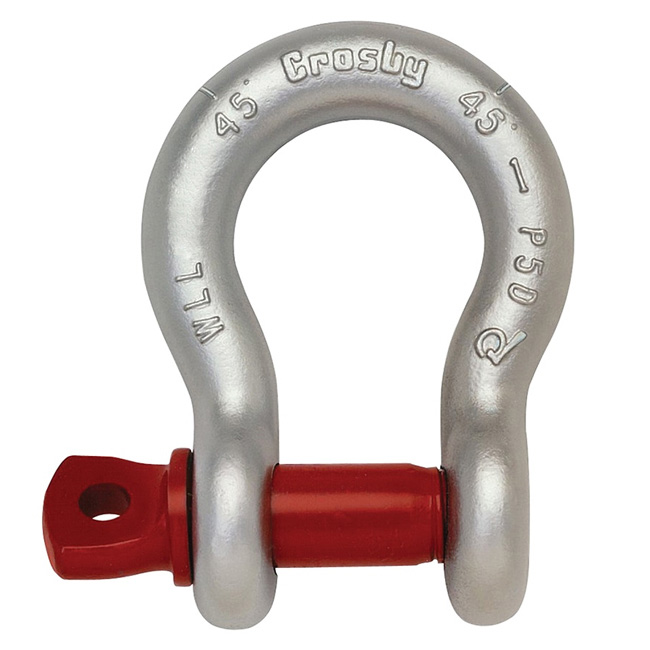

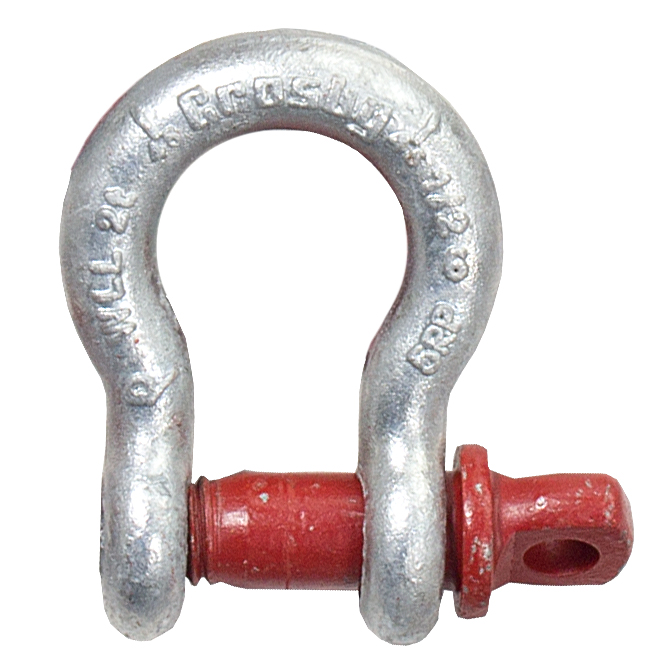

Crosby Galvanized Screw Pin Shackles

Multiple Options Available
Please select an option below
FREE SHIPPING OVER $35!
MADE IN USA

$7.22 to $211.00


Diameter *

Crosby Galvanized Screw Pin Shackles

Crosby's Galvanized Screw Pin Shackles feature the working load limit and grade "6" permanently marked on each. These Crosby shackles are hot dip galvanized and quenched and tempered to provide durability for lifting applications. Crosby shackles and clevises meet the requirements of the Federal Specification RR-C-271D, Type IVA.

Crosby Galvanized G-209 Screw Pin Shackle Chart

Available Options:

PART

DIAMETER

WLL

WEIGHT

1018375

1/4"

1/2 ton

.10 lbs

1018419

3/8"

1 ton

0.31 lbs

1018437

7/16"

1.5 ton

.38 lbs

1018455

1/2"

2 tons

0.72 lbs

1018473

5/8"

3.25 tons

1.37 lbs

1018491

3/4"

4.75 tons

2.35 lbs

1018516

7/8"

6.5 tons

3.62 lbs

1018534

1"

8.5 tons

5.03 lbs

1018552

1-1/8"

9.5 tons

7.41 lbs

1018570

1-1/4"

12 tons

9.5 lbs

1018598

1-3/8"

13.5 tons

13.53 lbs



Other Crosby Shackles:

SKU C-CY-1018419
Manufacturer Crosby
