Home > Crosby Galvanized Bolt Type Shackles

Crosby Galvanized Bolt Type Shackles

Multiple Options Available
Please select an option below
FREE SHIPPING OVER $35!
MADE IN USA

$15.19 to $245.00


Available Options *

Crosby Galvanized Bolt Type Shackles

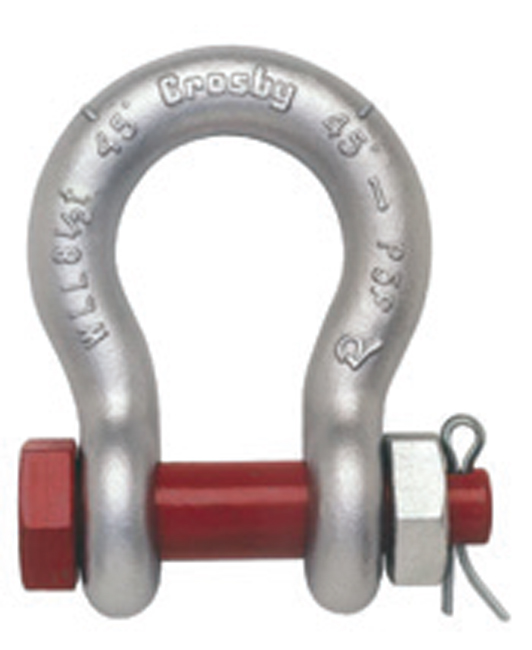

Crosby's Galvanized Bolt Type Shackles feature the working load limit and grade "6" permanently marked on each. These Crosby shackles are quenched and tempered then hot dip galvanized to offer durability for lifting applications. Crosby shackles and clevises meet the requirements of the Federal Specification RR-C-271D, Type IVA. Each shackle includes an alloy bolt.

Crosby Galvanized G-2130 Bolt Shackle Chart

Available Options:


PART

DIAMETER

WLL

WEIGHT

1019470

3/8”

1 ton

0.33 lbs

1019472

1/2”

2 tons

0.79 lbs

1019490

5/8”

3.25 tons

1.68 lbs

1019515

3/4”

4.75 tons

2.72 lbs

1019533

7/8”

6.5 tons

3.95 lbs

1019551

1”

8.5 tons

5.66 lbs

1019579

1-1/8”

9.5 tons

8.27 lbs

1019597

1-1/4”

12 tons

11.71 lbs

1019613

1-3/8”

13.5 tons

15.83 lbs



Other Crosby Shackles:

SKU C-CY-1019470
Configurable Model None
Manufacturer Crosby
