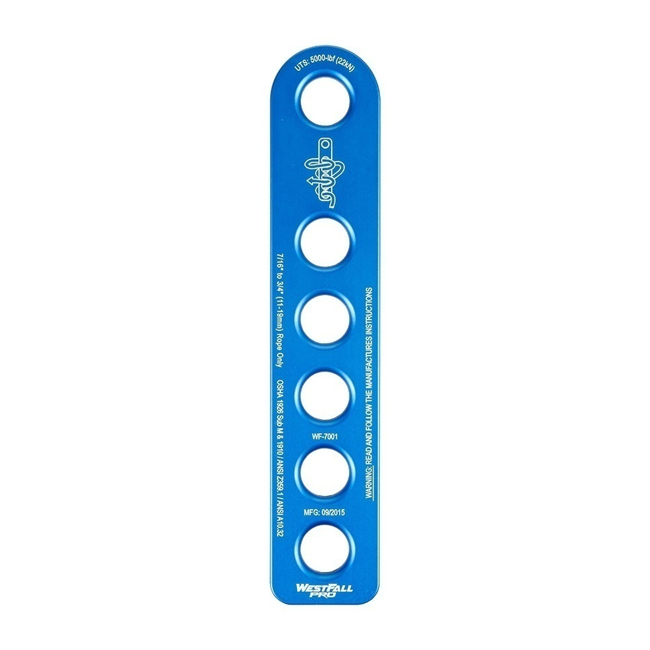

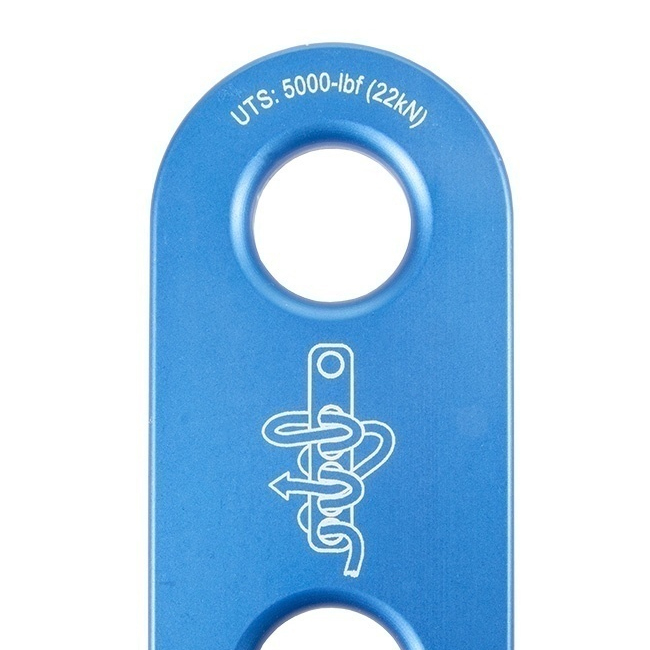

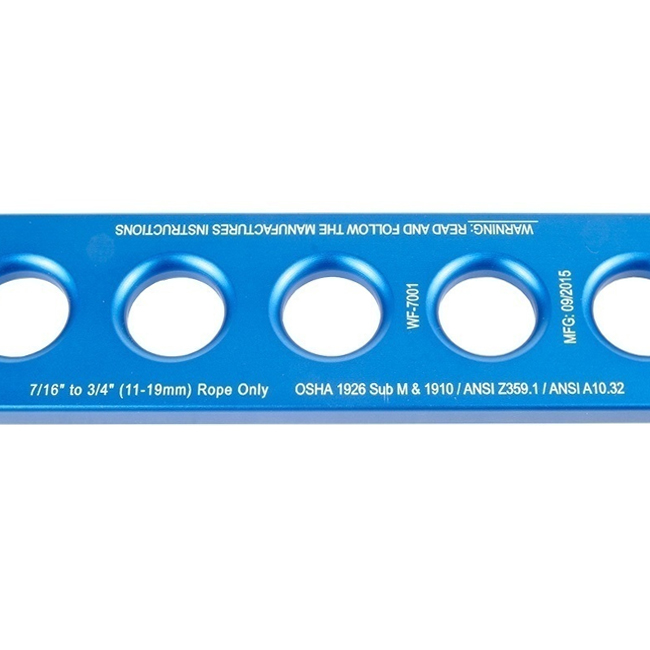

WestFall Pro Rope Termination Plate

The WestFall Pro Rope Termination Plate is used to quickly and easily create a compliant terminated rope end that can be connected to an anchorage point. Made from aluminum, this termination plate offers a lightweight alternative to factory terminated rope ends. Use the top hole for connecting to anchorage and the others for threading the rope. For use with 7/16" to 3/4" kernmantle rope or 5/8" to 3/4" three strand rope.

Specifications:

• For use with:
• 7/16" to 3/4" kernmantle rope
• 5/8" to 3/4" three strand rope
• UTS: 5,000 lbf (22kN)
• Max User Weight: 310 lbs
• Working Load: 1,000 lbs
• Material: Aluminum
• Finish: Anodized
• Color: Blue
• Meets: OSHA 1926 SUB M, OSHA 1910, ANSI Z359.1, and ANSI A10.32
