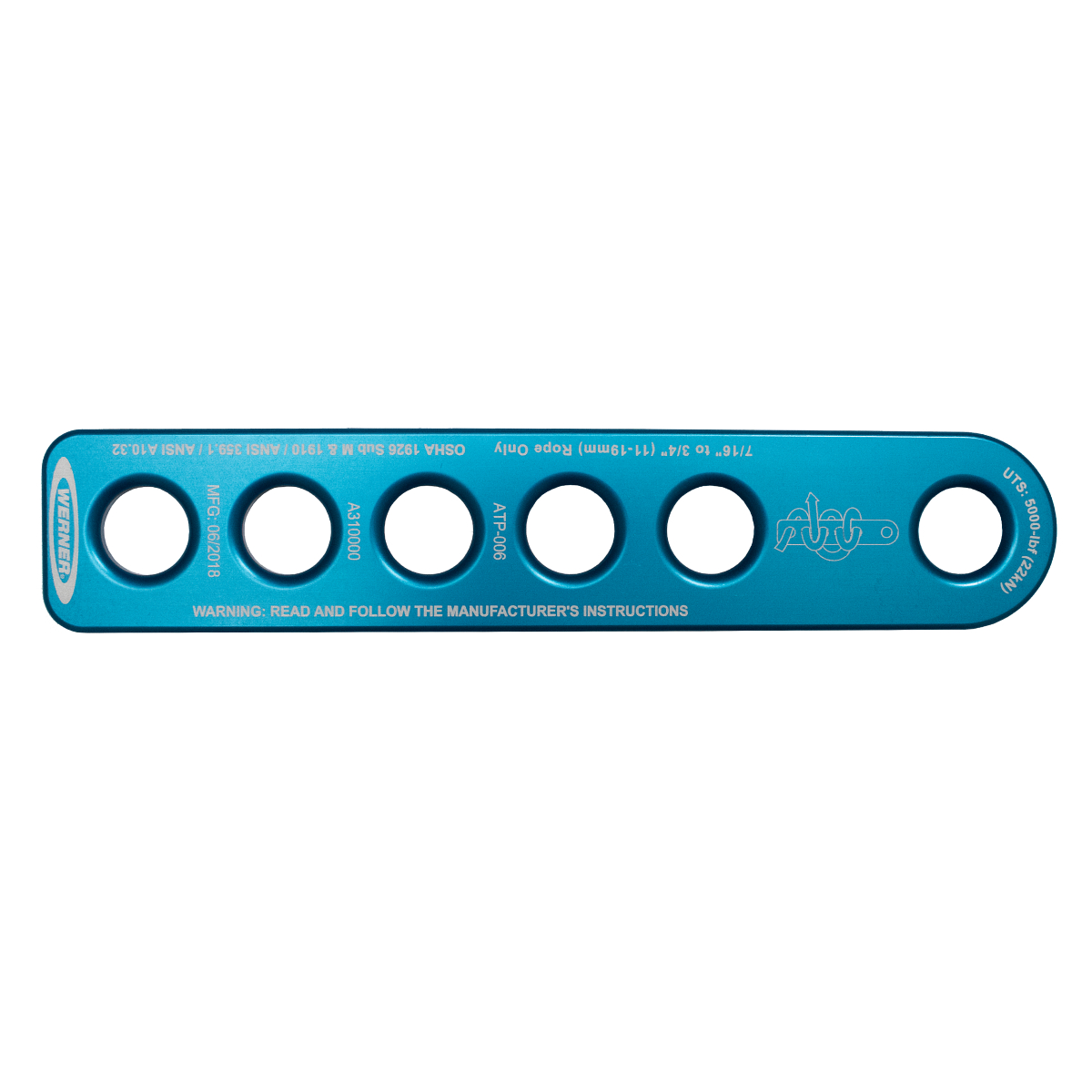

Werner A310000 Rope Termination Plate

The Werner A310000 Rope Termination Plate is constructed with anodized aluminum used to connect three strands of kernmantle rope without the use of knots or factory terminations.

Features:

• Anodized aluminum construction
• Used with 5/8 inch to 3/4 inch (16mm-19mm) three strand rope; or 7/16 inch to 3/4 inch (11mm-19mm) Kernmantle rope
• Minimum Breaking Strength (MBS): 5,000 lb (22.2 kN)
• Meets ANSI and OSHA Standards
  • ANSI Z359.18-2017
  • OSHA 1910.140
  • OSHA 1926.502

Specifications:

• Style: Connecting Hardware
• Color: Silver
• Material: Aluminum
• Anchor Application: General (all-purpose)
• Certifications: OSHA Compliant,ANSI Z359.18
• Permanent/Temporary: Temporary
• Approx. Product Length (in): 10
• Approx. Product Height (in): 0.3
• Approx. Product Width (in): 2
• Approx. Product Weight (lb): 1
• Approx. Shipping Length (in): 12
• Approx. Shipping Width (in): 2.4
• Approx. Shipping Height (in): 1.2
