Home > Rock Exotica P53 Omni-Block Swivel Pulley, 2.0"

Rock Exotica P53 Omni-Block Swivel Pulley

Multiple Options Available
Please select an option below
FREE SHIPPING OVER $75!
Sale!

$125.00 to $126.00 $100.00 to $100.80


Color *

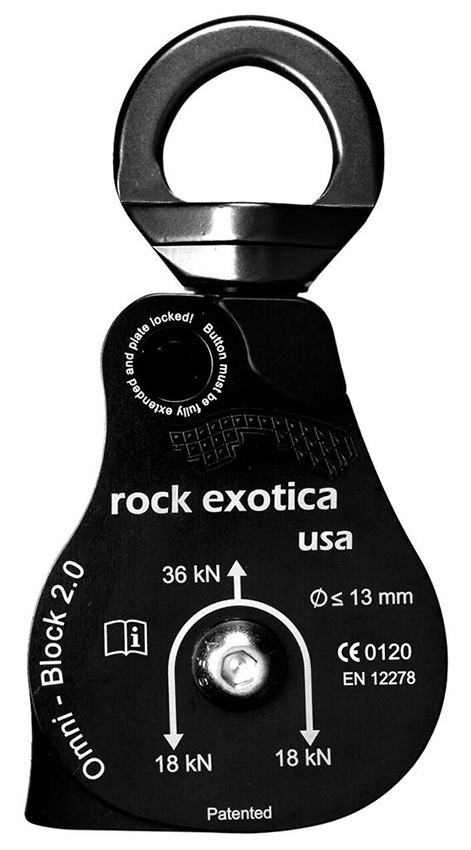

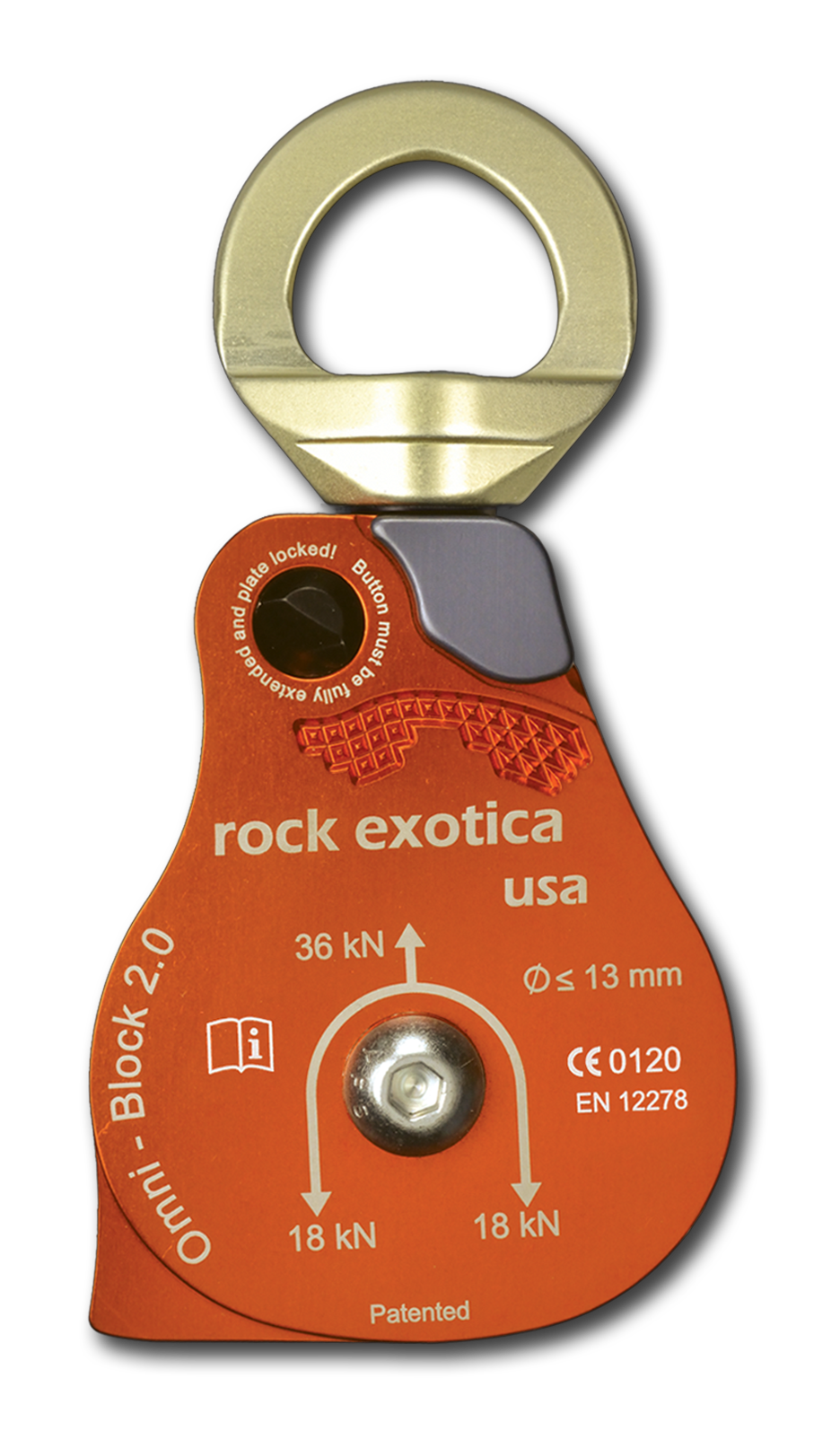

Rock Exotica P53 Omni-Block Swivel Pulley

The Omni-Block combines a pulley with a swivel and offers tremendous advantages. It can replace a conventional pulley, carabiner & swivel and is lighter, less expensive and saves valuable vertical space. It also allows installing/removing the rope while the pulley is still anchored, which prevents dropping it & is often easier when rigging mechanical advantage systems. It does require that the user understand how it works and takes responsibility for making sure the side plates are closed & locked.

Technical Specifications:

  • (MBS) Minimum Breaking Strain (kN) : 36
  • (MBS) Minimum Breaking Strain (lbf) : 8,093
  • Certification : CE EN 12278
  • Compatible with rope diameter (mm) : Max 13 mm
  • Weight (grams) : 348
  • Weight (ounces) : 12.3
  • Sheave : 2.0"
  • Working Load : (2 x 4kN) = 8 kN
  • Breaking Strength : (2 x 18kN) = 36 kN
  • Color : Orange (P53) or Black (P53B)

Rock Exotica Omni-Block Chart

ROCK EXOTICA OMNI-BLOCKS

DESCRIPTION

SHEAVE

MATERIAL

COLOR

WEIGHT

MBS

WLL

MAX ROPE

CERTIFICATION

P54 - Omni-Block 1.1” Single

1.1” (28 mm)

Aluminum

Standard

5.1 oz (145 gm)

23 kN

5 kN

0.5” (13 mm)

CE / UIAA

P54-B - Omni-Block 1.1” Single

1.1” (28 mm)

Aluminum

Black

5.1 oz (145 gm)

23 kN

5 kN

0.5” (13 mm)

CE / UIAA

P51 - Omni-Block 1.5” Single

1.5” (38 mm)

Aluminum

Standard

9.2 oz (260 gm)

36 kN

8 kN

0.5” (13 mm)

CE / UIAA

P51-B - Omni-Block 1.5” Single

1.5” (38 mm)

Aluminum

Black

9.2 oz (260 gm)

36 kN

8 kN

0.5” (13 mm)

CE / UIAA

P51 SH-B - Omni-Block 1.5” Single

1.5” (38 mm)

Aluminum

Black

10.7 oz (303 gm)

36 kN

8 kN

0.5” (13 mm)

CE / UIAA

P51 D - Omni-Block 1.5” Double

1.5” (38 mm)

Aluminum

Standard

14.5 oz (411 gm)

36 kN

8 kN

0.5” (13 mm)

CE / UIAA

P51 D-B - Omni-Block 1.5” Double

1.5” (38 mm)

Aluminum

Black

14.5 oz (411 gm)

36 kN

8 kN

0.5” (13 mm)

CE / UIAA

P53 - Omni-Block 2.0” Single

2.0” (51 mm)

Aluminum

Standard

12.3 oz (348 gm)

36 kN

8 kN

0.5” (13 mm)

CE / UIAA

P53-B - Omni-Block 2.0” Single

2.0” (51 mm)

Aluminum

Black

12.3 oz (348 gm)

36 kN

8 kN

0.5” (13 mm)

CE / UIAA

P53 D - Omni-Block 2.0” Double

2.0” (51 mm)

Aluminum

Standard

19.4 oz (548 gm)

40 kN

8 kN

0.5” (13 mm)

CE / UIAA

P53 D-B - Omni-Block 2.0” Double

2.0” (51 mm)

Aluminum

Black

19.4 oz (548 gm)

40 kN

8 kN

0.5” (13 mm)

CE / UIAA

P55 - Omni-Block 2.6” Single

2.6” (66 mm)

Aluminum

Standard

1.9 lbs (850 gm)

80 kN

20 kN

0.5” (13 mm)

CE / UIAA



C-RX-P53
Manufacturer: Rock Exotica
Type: Single
RX-P53
RX-P53-B
