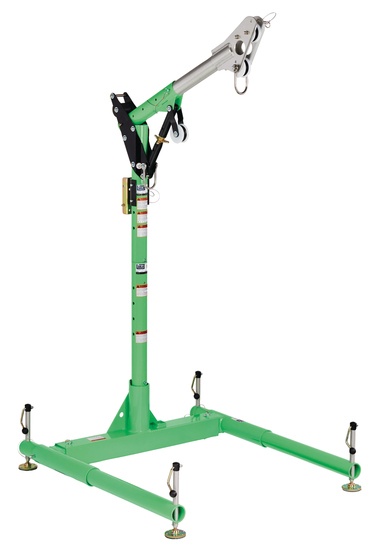

DBI Sala 8518000 Advanced 5-Piece Davit Hoist System
The DBI Sala 8518000 Advanced 5-Piece Davit Hoist System is designed for manhole and confined space rescue retrieval applications. This unit is constructed of lightweight materials including high-strength aluminum. The Davit pivots for ease of rescue and has a limited adjustment for overhead clearance restrictions. The lower base adjusts to fit most standard entries. It features a 3 piece adjustable portable base, unique foot level and height adjustment system, and an integrated 5,000 lb. (22 kN) mast anchorage point.
Features:
- 5-piece davit hoist system
- Integrated 5,000 lb. (22 kN) mast anchorage point
- Fall arrest rated in all davit offset mast positions
- Adjustable offset upper davit mast
- Telescoping reach of 11-1/2 in. to 27-1/2 in. (29.2 to 69.8 cm)
- Adjustable vertical height of 33 in. to 43 in. (83.8 to 109.2 cm)
- Built-in primary and secondary pulleys
- Quick mount winch/SRL bracket (sold separately)
- Detent and knob style adjustment
- 33 in. (83.8 cm) lower davit mast extension
- Combine up to 2 extensions
- Extends your davit mast height
- 3-piece adjustable portable base
- Base width adjusts from 37 in. to 64 in. (94 to 162.6 cm)
- Unique foot level and height adjustment system
- Lightweight, corrosion-resistant aluminum construction
Specifications:
- Capacity: 450 lbs. (204 kg)
- Label: Polyester
- Primary Hardware Material: Aluminum
- Physical Weight: 83.20 lbs. (37.7 kg)
- Standards: OSHA 1926.502, ANSI Z359.1, Capital Safety Gen. Mfg. Req.
System Includes:
**Winch and SRLs sold separately
