CommScope Control Unit Interface Adapter Kit for RET Antenna Setup

KP-ATC200-LITE-USB
This item qualifies for Quick Ship. Quick ship items typically ship out the same day you order them as long as the order is placed before 6pm EST, Monday through Friday. Get It By Jun 18
FREE SHIPPING OVER $75!
Sale!

$625.00 $535.95


CommScope Control Unit Interface Adapter Kit for RET Antenna Setup

Features:

  • Carried from site to site for RET antenna setup and optimization
  • Supports up to 32 RET actuators operating in a mix of AISG modes

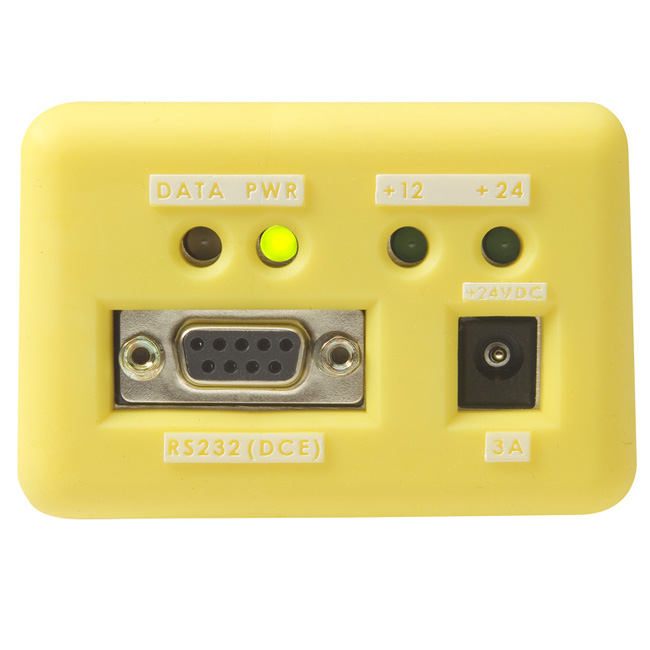

  • LED display indicates the presence of input power, output power, and data communication
  • Equipped with USB and serial connectors
  • Power supply efficiency is Energy Star® Level IV rated.

Specifications:
  • Protocol: AISG 1.1   |   AISG 2.0

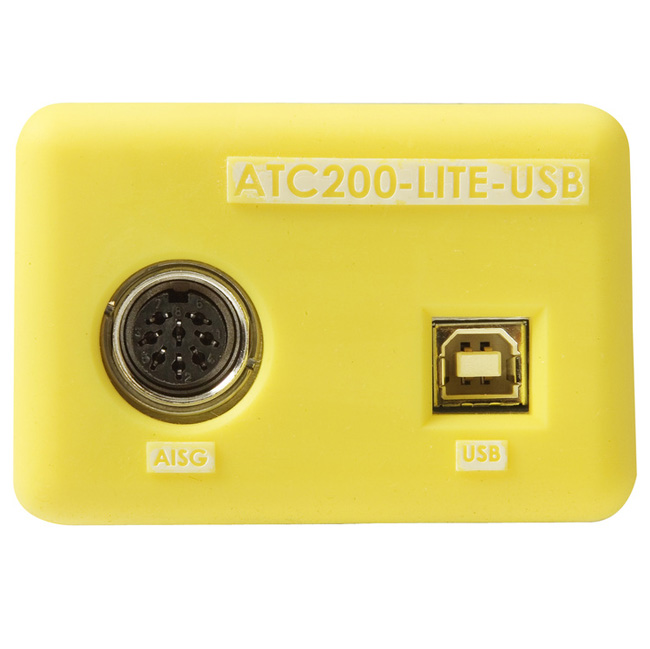

  • AISG Output Connector: 8-pin DIN Female
    • single port
  • Interface Protocol Signal: Data | dc
  • Input Voltage: 110/240 Vac
  • Output Current at Voltage, continuous: 3.0 A @ 24 V
  • Output current at Voltage, maximum: 3.0 A @ 24 V
  • Output Voltage, typical: 24 V
  • Power Supply: dc Jack
  • Electrical Safety Standard: CB   |   CE   |   IEC 60950-1
  • Operating Temperature: 40 °C to +55 °C (-40 °F to +131 °F)
  • Relative Humidity: up to 95%, non-condensing

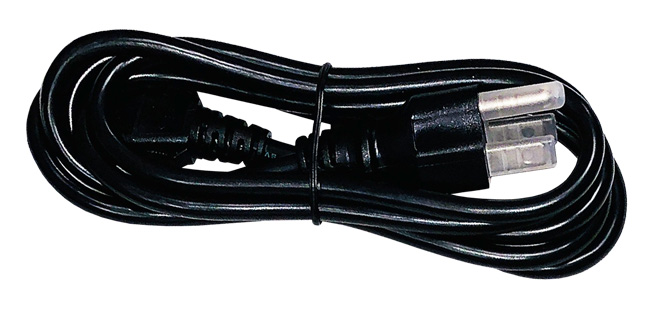

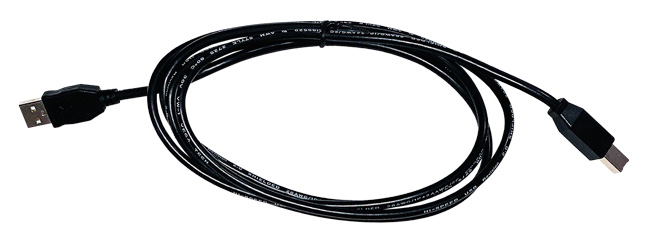

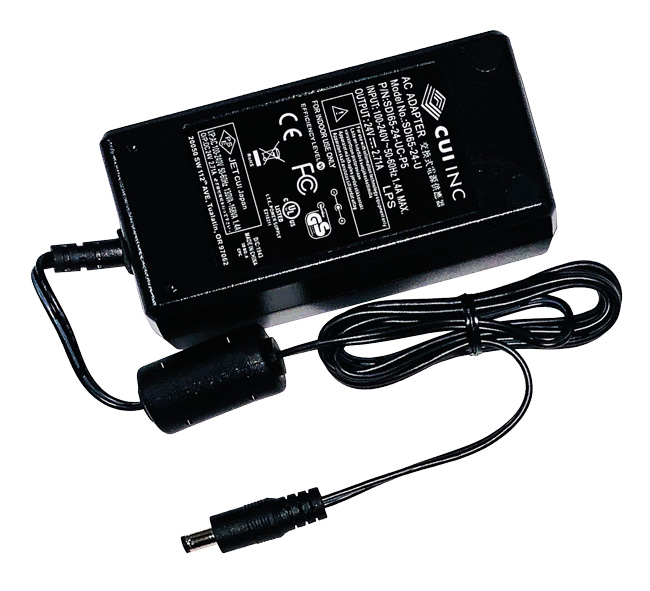

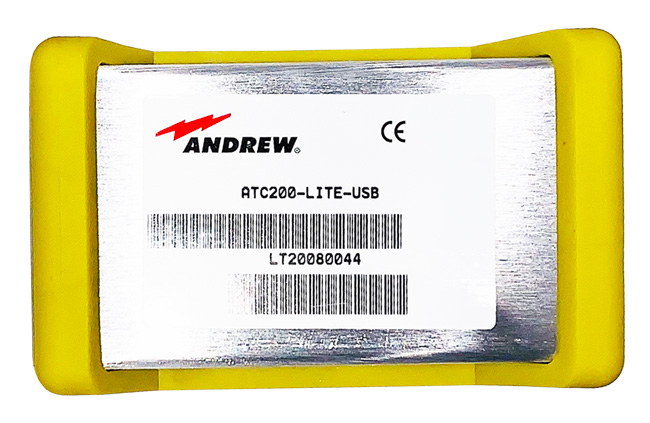

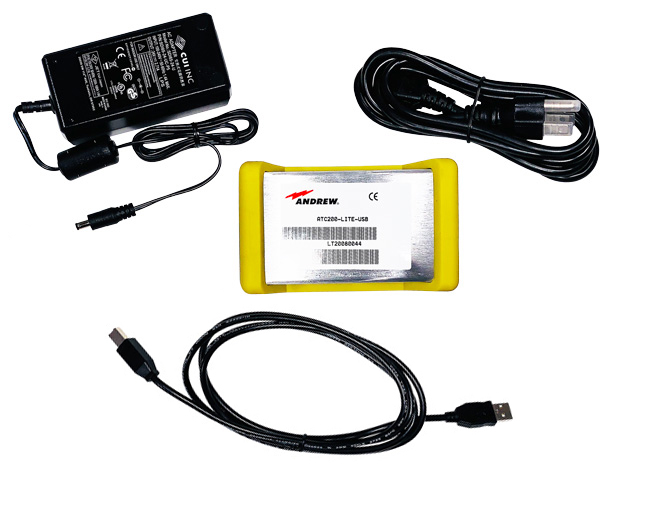

The Commscope Control Unit Interface is a portable controller that can be carried from site to site for RET antenna setup. This adapter kit includes a control unit, power supply, site configuration worksheet, US adapter, and USB cable. This kit supports up to 32 RET actuators that operate in a mix of AISG modes.

KP-ATC200-LITE-USB
AMPS: 3 Amps
Color: Gray
Yellow
Features: AISG Output Connector: 8-pin DIN Female (1)
Auxiliary Interface: USB
Height (Generic): 2"
Industry: Tower Climbing
Manufacturer: CommScope
Material: Aluminum
Short name: CommScope Control Unit
Standards: CB
CE
CHINA-ROHS
IEC 60950-1
ISO 9001:2015
REACH-SVHC
ROHS Compliant
Voltage: Input: 110/240 Vac
Output: Continuous 3.0A @ 24 V
Output: Maximum 3.0A @ 24 V
Output: Typical 24 V
