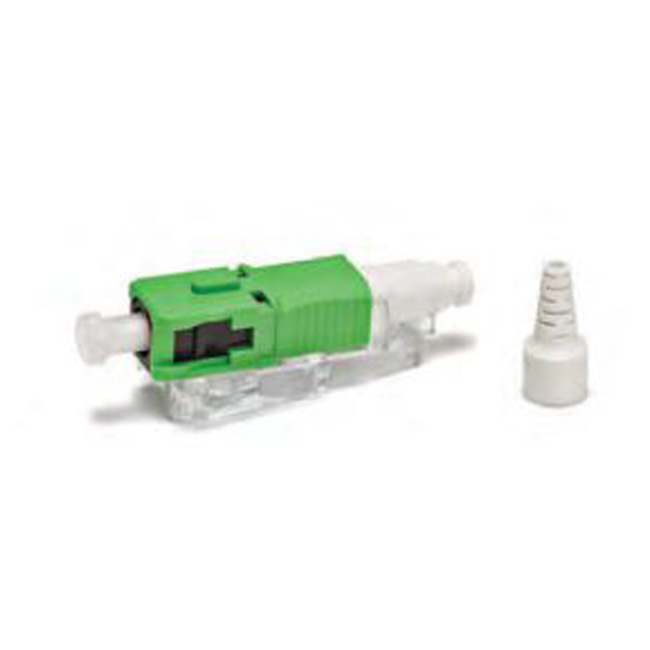

WireWerks SC Field-Installable Fiber Optic Connector (APC) (Non-Splice)

Features:

• Fast, simple installation process with reliable, high-performance, high-yield results
• Integrated Visual Fault Locator (VFL) for instant visual verification of termination
• Common 3-Step Procedure for all connector types is easy to learn and repeat
• Low Insertion Loss
• No crimp, no epoxy and no polishing reduces installation time and cost
• Follow TIA/EIA-568-C.3 color identification scheme for easy identification of fiber type; visually compatible with patch cords and connectivity that also follow the color ID scheme

Wirewerks LC Field-Installable Fiber Optic Connector is a pre-polished, pre-assembled connector that eliminates the need for hand polishing and epoxy in the field, allowing fast, reliable, high-quality terminations in the field in less than 2 minutes from stripping to installation. Using a Visual Fault Locator (VFL), a ‘light pipe’ on the connector body provides instant visual verification of a successful installation. The connector comes with an assembly jig and fiber holder to ensure accurate alignment and fiber cleave when terminating. Wirewerks LC Field-Installable Fiber Optic Connectors are fully compatible with all standard LC connectors and are available in single mode and multimode (50µm or 62.5µm) configurations for termination on 250µm or 900µm tight-buffered fiber.

Standards:

• ANSI/TIA-568-B.3: Optical Fiber Cabling Component Standard
• GR-326-CORE: Generic Requirements for Single Mode Optical Connectors and Jumper Assemblies.
• TIA-604-10: Fiber Optic Connector Intermateability Standard - Type LC
• IEC61754-20: Fibre Optic Connector Interfaces - Part 20: Type LC connector family
• UL 94: Tests for Flammability of Plastic Material for Parts in Devices and Appliances.
• RoHS: Directive on Restriction of Hazardous Substances
