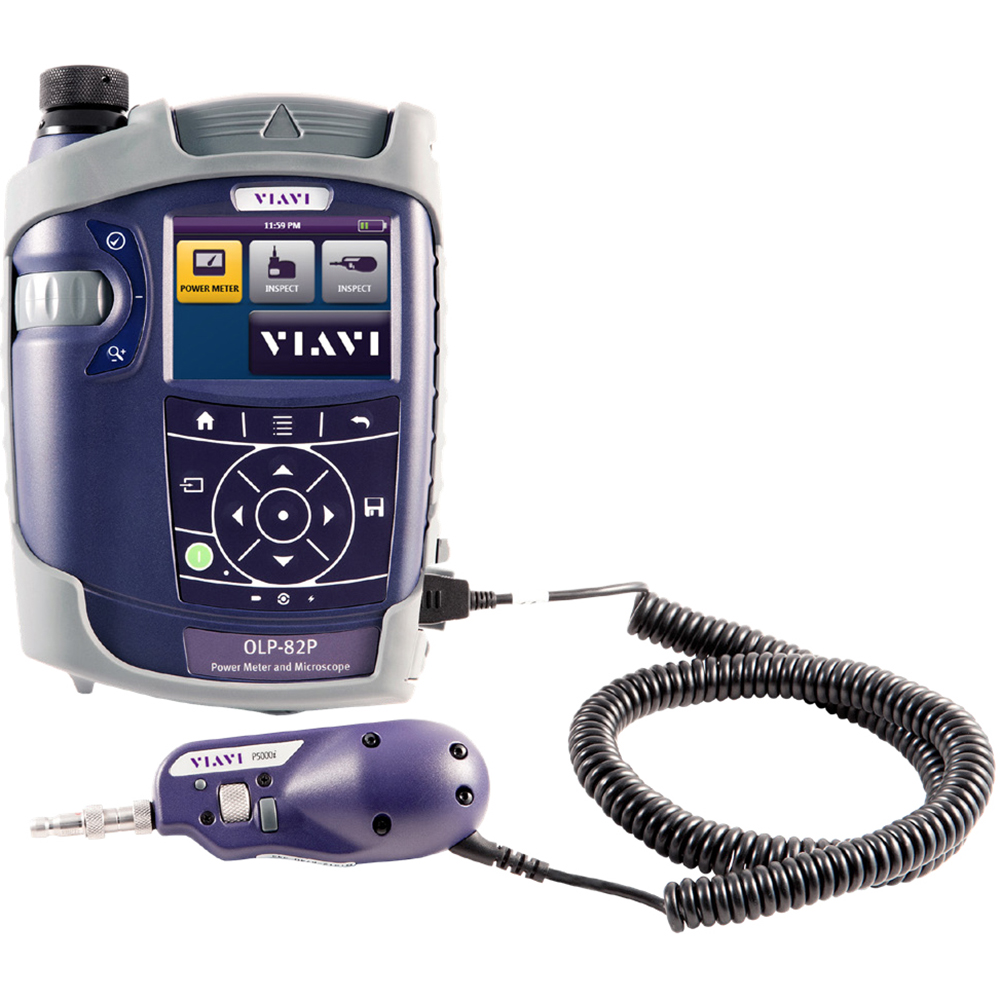

VIAVI P5000i and OLP-87P Probe Kit with 5 Tips

Viavi P5000i and OLP-87P Probe Kit with 5 Tips

The Viavi P5000i and OLP-87P Probe Kit with 5 Tips is an FTTx/PON power meter for use in activating and troubleshooting B-PON, E-PON and G-PON and next generation high speed 10G PON such as XG-PON and 10G-EPON networks, and higher capacity NG-PON2 networks. The OLP-87 combines a high-performance wavelength-selective power meter with pass/fail fiber inspection analysis capability into one portable solution.

Features:

• Through-mode capability for simultaneous measurement and display of voice, data and RF video signals on fiber at 1490/1550/1578nm downstream and 1270nm/1310nm upstream for B/E/G/XG(S)/10G
• Individual, wavelength selective, through mode power level measurement for multiple NG-PON2 downstream and upstream channels
• Burst mode measurement for 1270nm, 1310nm and 1535nm upstream signals
• High performance broadband power-meter option
• Up to 10.000 measurement results storage downloadable through USB or Ethernet interfaces
• Automated pass/fail fiber inspection analysis with optional P5000i microscope Integrated patchcord microscope version available
• Service activation and troubleshooting Simultaneous power measurement of all upstream & downstream wavelengths on live PON networks Supports tests in B-PON, E-PON, G-PON and XG-PON/10G-EPON networks Network activation/testing as part of 5G deployments
