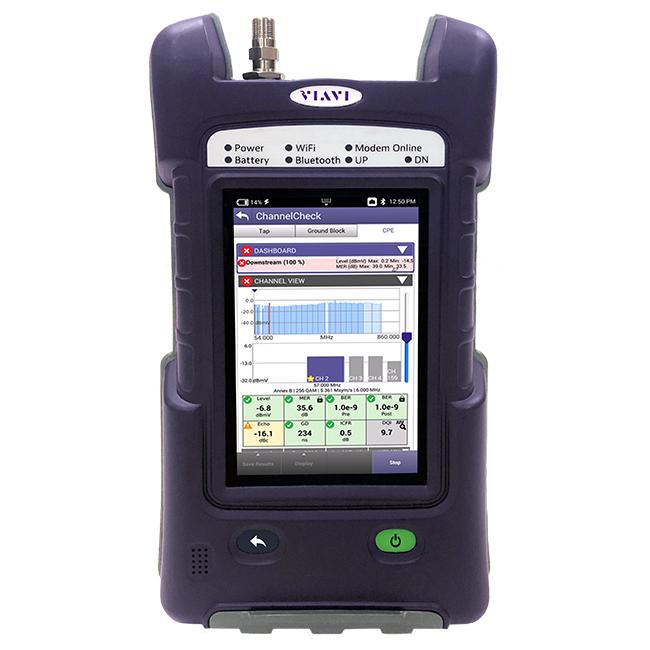

Viavi OneExpert DSP Installation & Service Meter D31enabled Meter 42/85MHz - 1.0G/1.2G - SWX PKG

The Viavi ONX-630D31-4285-1012-SWX OneExpert CATV ONX-630 Signal Analysis Meter Platform helps field technicians fix problems right-the first time.

Features:

• Plant maintenance model with forward and reverse sweep and alignment
• Dual port design allows simultaneous ingress and downstream testing
• Automatic channel identification eliminates the need for channel plans and plan-related errors
• Dashboard clearly shows summarized results of entire lineup
• Completes downstream scan including MER/BER in about 60 seconds
• Session Expert feature offers background analysis and VIAVI expertise to identify and fix problems
• Dual-diplexer design supports 42/85 or 65/204 MHz networks
• Return signal generator transmits up to 8 CW or QAM signals
• Built-in guide allows technicians to learn about the meter on the job
• Cloud-enabled via StrataSync for tracking of test results and compliance



Includes

• OneExpert CATV ONX-630/SWX Signal Analysis Meter Platform
• Protective Case with Hand Strap and Detachable Shoulder Strap
• AC Power Supply
• Quick Start Guide
