Viavi OneAdvisor 800 OTDR/CAA and 3Z RF Vision Antenna Alignment Tool Bundle with Scope

Viavi OneAdvisor 800 OTDR/CAA and 3Z RF Vision Antenna Alignment Tool Bundle with Scope

The Viavi OneAdvisor 800 OTDR/CAA and 3Z RF Vision Antenna Alignment Tool Bundle with Scope has been designed to address the evolving requirements of service providers and contractors as they scale 5G infrastructure.

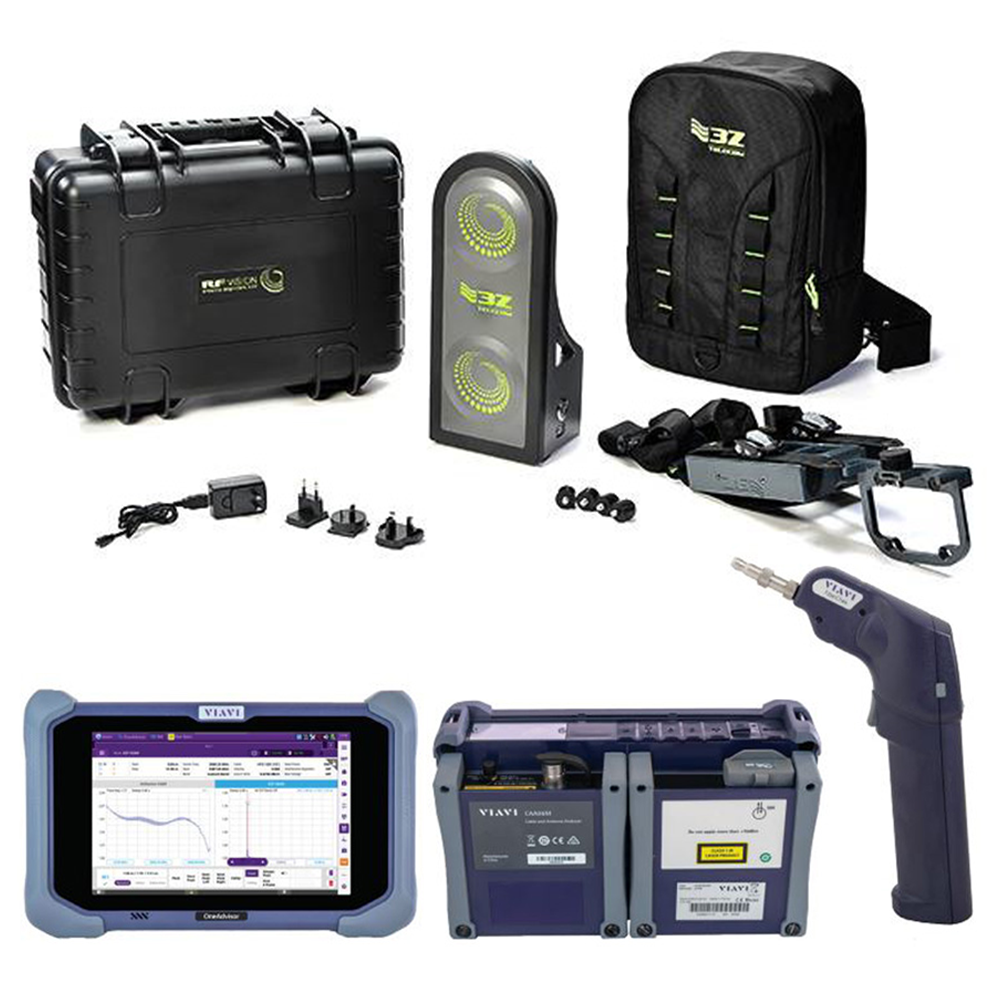

Bundle Includes:

• ONA-800 OneAdvisor + Scope (ONA800A-C-OSM-A)
  • (1) OTDR Module
  • (1) Cable & Antenna Sweep Module
  • (1) FiberCheck Probe Scope
  • (1) LC Connector
  • (1) FiberChek Microscope
  • (1) Fiber and RF Accessories
  • (1) Hard-carrying case with wheels
  • (1) OSL Calibration kit
  • (1) RF Cable Type-N(m) – Type-N (f) 1.5 mm
  • (1) RF Adapter Type-N(m) – DIN (f)
  • (1) RF Adapter Type-N(m) – MiniDIN 4.3-10 (f)
• 3Z RF Vision Antenna Alignment Tool (RFV-2000)
  • Rugged designed hard-case
  • Universal strap clamp
  • Water-resistant carrying soft-case bag
  • Rubber bumpers for microwave antennas
  • AC/DC Power charger & worldwide power adaptors

ONA-800 OneAdvisor + Scope:

Features:

• Carrier Reporting
• Fiber Inspection with Auto Pass/Fail
• OTDR testing for SM fibers (1310/1550)
• Cable and Antenna Analysis:  Return Loss/VSWR, Distance to Fault (DTF), Cale Loss of coax and antenna systems
• Replaces up to 3 other instruments
• Optional modules to perform RF Interference Analysis, LTE / 5G Analysis, CPRI testing.

The OneAdvisor 800 allows cell site technicians to test fiber, RF, and CPRI/Ethernet from a single instrument, replacing multiple independent tools (OTDR, CAA, Fiber Scope) and significantly reducing the total cost of ownership.

Via its multi-test capability and test process automation, OneAdvisor-800 streamlines work into a short sequence of push-button tests, making sure that everyone completes the job in the same way and to the same specifications. With its guided workflow, new hires get up to speed more quickly and experienced hands to work even faster.

3Z RF Vision:

The 3Z RF Vision Antenna Alignment Tool replaces a compass, GPS, and range finder. This antenna alignment tool is effective and reliable to ensure that installers perform jobs as indicated on RF design specifications. Use the Vision Antenna Alignment Tool for accurate antenna alignment to prevent coverage gaps, network performance gradation, and loss of revenue.

For the first time, an antenna alignment tool can align the antenna and also show you where it is pointing with the built-in HD camera. The camera provides a line of sight image that is mechanically aligned with the tool. The license to use this camera is optional and can be purchased for an additional fee (does not come included with the alignment tool). There is a 30-day free trial of the camera license.

The 3Z RF Vision Antenna Alignment Tool is compatible with all the same accessories (besides the charger) as the 3Z RF Aligner Antenna Alignment Tool.

Features:

• Reduces OPEX costs
• Guarantees field installation and RF Design match
• Maximizes voice quality & data traffic
• Improves data user throughput & KPIs
• Reduces churn
• Keeps your customers happy
• Mechanically Aligned with HD Camera
• Rugged Design & Weather Resistant
• Impact Resistant Display
• 5” Touch Screen LED Display
• Embedded Augmented Reality
• Connects to multiple constellations
• Multiple-frequency technology
• Optional Camera License: allows you to use the built-in camera on the alignment tool
