Viavi 3Z RF Vision Antenna Alignment Tool and Loss Test Scope Bundle

The Viavi 3Z RF Vision Antenna Alignment Tool and Loss Test Scope Bundle provides antenna alignment and fiber inspection in an all-in-one kit.

Features:

• Recommended bundle for contractors working with Fiber to the tower and aligning antenna.
• Complies with reporting requirements from all major carriers, auto PASS/FAIL criteria for fiber work and Antenna Alignment
• 2-Year Damage Protection Plan available for RF Vision
• 3 Year Warranty

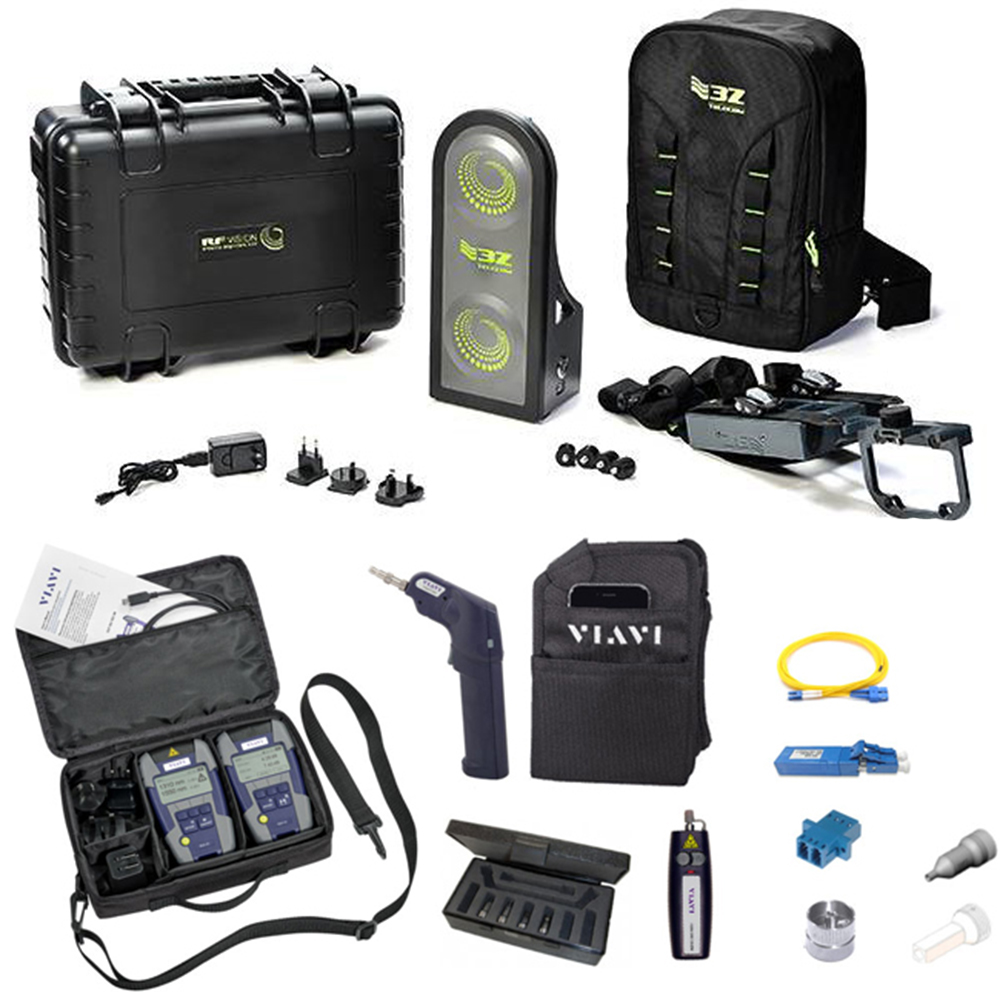

Bundle Includes:

• 3Z RF Vision Antenna Alignment Tool (RFV-2000)
  • Rugged designed hard-case
  • Universal strap clamp
  • Water-resistant carrying soft-case bag
  • Rubber bumpers for microwave antennas
  • AC/DC Power charger & worldwide power adaptors
• VIAVI Fiber Insertion Loss and Inspection Pro Kit (OMK-WLS-PRO)
  • OLP-35 Optical Power Meter with USB w/2.5mm and 1.25mm UPP
  • OLS-35 Laser Source 1310/1550nm SM SC mounted FC enclosed
  • USB Cable USB-A to Micro-USB
  • SNT-505 Universal AC Power Adapter Micro USB Connector
  • 2-SM 2m Cables LC-PC to SC-PC
  • Mating Sleeve for LC LC Included
  • Fiber Loopback LC SM UPC
  • MT-2P Soft Bag 2X SmartPocket HH+Accessories
  • FiberChek Probe Autofocus Microscope
  • Inspection Tips and Case – LC/SC cord and bulkhead
  • Single USB Output AC Input Charger With US EU UK AU Adapters
  • FL-050 Visual Fault Locator Pocket Size 2.5mm 1.25mm Adapter

3Z RF Vision:

The 3Z RF Vision Antenna Alignment Tool replaces a compass, GPS, and range finder. This antenna alignment tool is effective and reliable to ensure that installers perform jobs as indicated on RF design specifications. Use the Vision Antenna Alignment Tool for accurate antenna alignment to prevent coverage gaps, network performance gradation, and loss of revenue.

For the first time, an antenna alignment tool can align the antenna and also show you where it is pointing with the built-in HD camera. The camera provides a line of sight image that is mechanically aligned with the tool. The license to use this camera is optional and can be purchased for an additional fee (does not come included with the alignment tool). There is a 30-day free trial of the camera license.

The 3Z RF Vision Antenna Alignment Tool is compatible with all the same accessories (besides the charger) as the 3Z RF Aligner Antenna Alignment Tool.

Features:

• Reduces OPEX costs
• Guarantees field installation and RF Design match
• Maximizes voice quality & data traffic
• Improves data user throughput & KPIs
• Reduces churn
• Keeps your customers happy
• Mechanically Aligned with HD Camera
• Rugged Design & Weather Resistant
• Impact Resistant Display
• 5” Touch Screen LED Display
• Embedded Augmented Reality
• Connects to multiple constellations
• Multiple-frequency technology
• Optional Camera License: allows you to use the built-in camera on the alignment tool

Fiber Insertion Loss and Inspection Kit

The VIAVI Fiber Insertion Loss and Inspection Kits are designed with a focus on ease-of-use, accurate measurements, and simple reporting. The kits feature everything needed to measure optical loss and inspect fiber end-faces during Fiber-to-the-Antenna (FTTA) construction, including a SmartPocket V2 optical light source (OLS-35) and an optical power meter (OLP-35). Along with a loopback plug and launch cables, the basic needs of a fiber technician are met with this highly optioned loss measurement kit. The VIAVI SmartPocket V2 is a new generation of pocket-sized, low-cost, optical handheld tools designed with the 5G technician in mind.

A lightweight, shock-resistant splash-proof design and an extended operating time make SmartPocket V2 test kits ideal solutions for field use. A switchable adapter system on the light source with a universal push pull (UPP) adapter on the power meter that handles all 2.5 mm and 1.25 mm connectors make the kits ready for every connector type in the field.

The FiberChek Probe is an all-in-one handheld fiber endface inspection probe, ideal for top hand technicians at every skill level. Meeting all fiber inspection needs with built-in image viewing, auto-focus, pass/fail analysis, and result storage and recall, the FiberChek probe completely automates inspection workflows to ensure fast and accurate performance. This probe is included with the OMK-WLS-PRO kit.

VIAVI SmartReporter software lets users quickly and efficiently download test results data from the power meter’s memory with just a few clicks. After it’s downloaded, the software reporting functions let users generate and customize professional certification reports.

Features:

• High-visibility backlit graphical display with context-sensitive softkey
• No setup ‘OptiChek’ measurement mode
• Fast auto-λ, multi-λ mode (~ 1 sec)
• Clear pass/fail information
• Automatic upload of results via VIAVI Mobile Tech application
• Dependable, German design
• Designed with outdoor environment in mind
• Low power consumption for extended continuous use
• Unlimited storage to unit / cloud automatically
• Instant on – no boot time
• Long battery life
