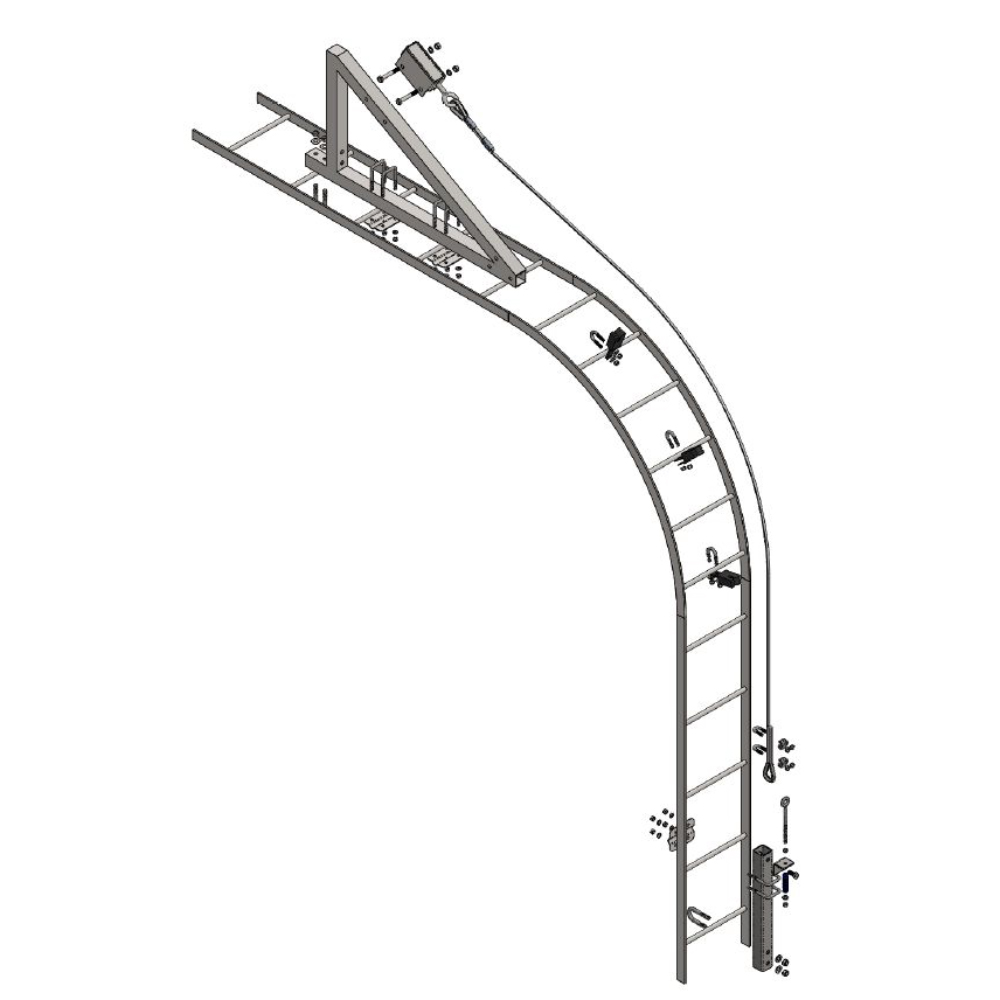

Tuf-Tug Water Tank Tower Cable Safe Climb System with Curved Ladder

Tuf-Tug Water Tank Tower Cable Safe Climb System with Curved Ladder

The Tuf-Tug Water Tank Tower Cable Safe Climb System with Curved Ladder is designed to meet the performance requirements of ANSI/OSHA for personnel fall arrest on fixed ladders. It utilizes a 3/8” solid core cable with swaged sleeves to provide an anchorage capable of maintaining a min. 5,000 lb. tensile load. An impact attenuator is incorporated in the anchor head to help dampen any extreme shock loads that may occur as a result of a fall. Cable stand-offs are provided with systems over 25 ft. to stabilize and maintain the cable in a good operable condition. The base anchor bracket is supplied with a line adjustment mechanism for a 220 lb. tension load.

Features:

• 50 foot Cable Length
• The continuous climb from base to top
• Designed to match the curved structure
• Systems for the interior & exterior of the tower
• Recommend Tuf-Tug 3/8” wire grab fall arrestor tested to ANSI Z359.16 functions to angles up to 45 degrees (included upon request)
• Extra heavy-duty 2” square steel tube supports with 5,000 lb. load rating for up to four multiple users simultaneously
