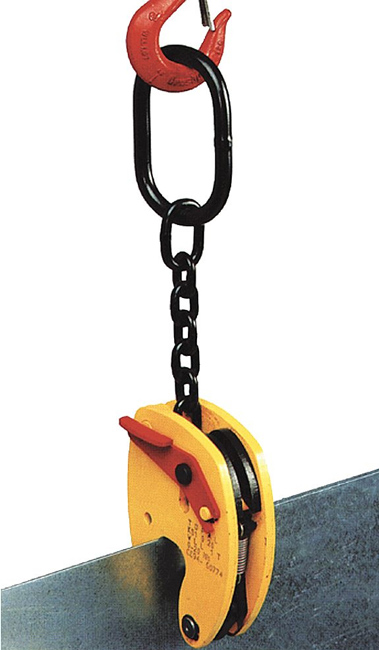

Tractel Topal Lifting Clamp

Features:

• Manufactured without load-bearing welds
• Hot epoxy coating
• Safety factor: 3
• Self-locking
• Complies with:
  • ASME B30.20

Specifications:

• Jaw Material:
  • Steel
• Lifting point:
  • Chain with load ring

NOTE: Using a KS marks the load

Dimensions: (millimeters)

KS075 (50238)

• Working Load Limit
  • 0.75 Ton
•  Opening:
  • Min: 0
  • Max: 15

KS2 (50258)

• Working Load Limit
  • 2 Ton
•  Opening
  • Min: 0
  • Max: 25

Suitable for lifting plates, beams, profiles and steel constructions from any position, the KS clamp has a safety spring and, depending on the weight of the load, will only leave a mark on one side.

To open the clamp’s cam, push the locking lever downwards. The locking is automatic when the lever is being freed. The clamp’s corrugated cam penetrates the load’s material. Lifting ensures proportional clamping, thus avoiding marking the load excessively. Loads may be grasped horizontally or vertically and revolved in inverse position (90 or 180°).

Clamps fitted with a safety spring mechanism for a permanent contact of the cam onto the piece to be lifted,
even when it is being put down. The locking lever does not stick out so that the clamp may be used on the
bare ground. The chain enables the revolving and makes the clamp’s positioning easier. The corrugated cam
only marks one side of the load.
