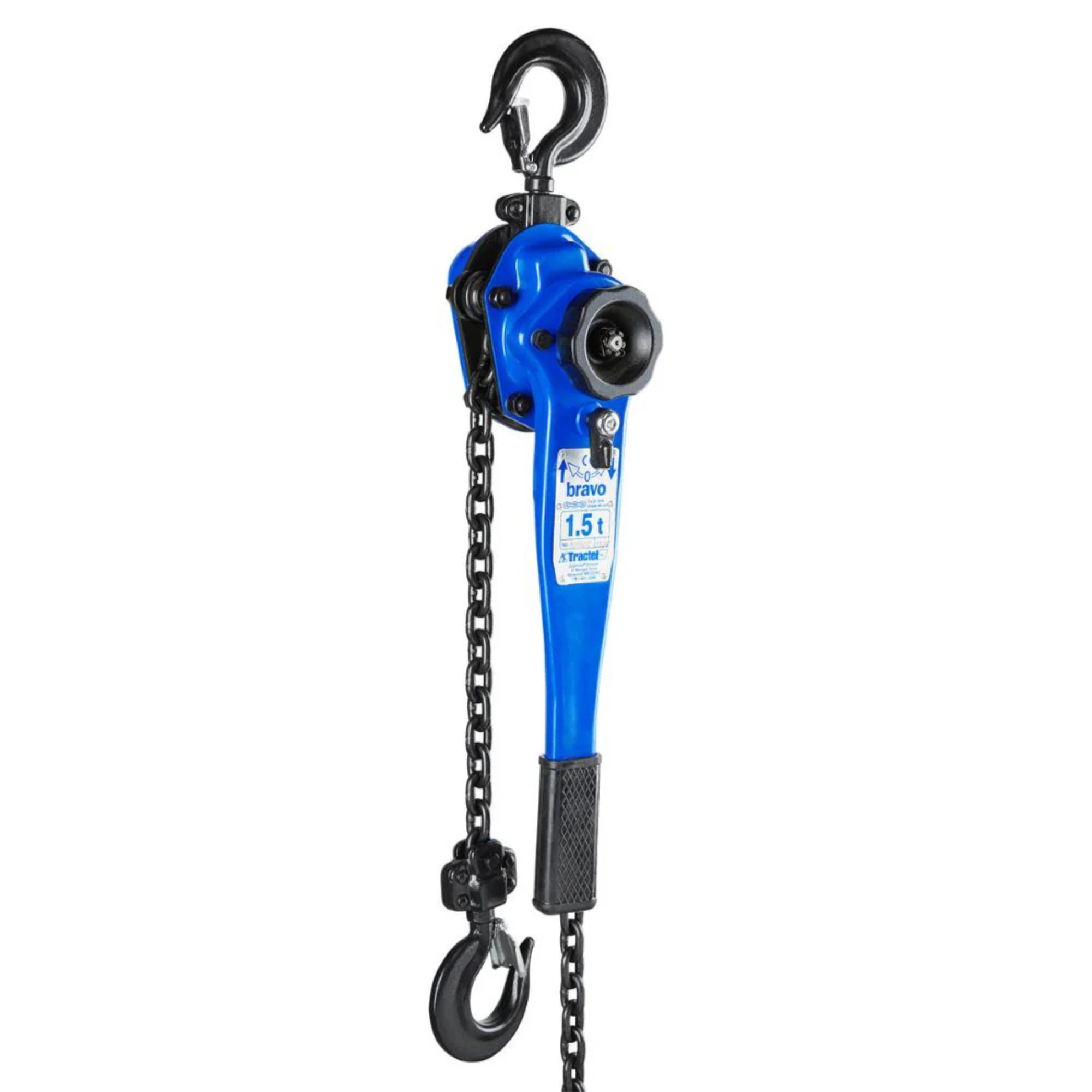

The bravo lever hoist is ideal for industrial and building/civil engineering applications. It is designed for pulling, lifting, positioning and adjusting loads in workshops and/or building sites.Suitable for a wide variety of lifting, pulling and tensioning applications: for lifting and lowering loads in manufacturing and assembly operations, removing engines, rigging and moving loads, applying tension to conveyor. The bravo is a rugged, quality built hoist designed for reliable operations even in the toughest conditions.



• Working Load Limit: 3,000 lbs. / 1.5 Ton
• Lengths Available: 5, 10, 15, 20, 30, 40 Feet Lift
• Load Chain Size : 7 x 21 mm
• Number of Falls: 1
• Effort on lever at capacity: 46 lbs. / 21 kg
• 360° swivel hook with overload opening indicators
• Removable large-opening swivel hook with large latch marked with working load limit of the hoist
• Five sprocket load wheel with closed bearings
• Free wheel safety device activates braking mechanism when load applied in neutral position
• The hoist and its components are made of high tensile alloy steel
• Anti-corrosion treated lifting and handling line
• Operates in temperatures between -40 and 140°F (-40 and 60°C)
• Wind-through chain system for fast hook positioning
• Automatic brake with double ratchet
• Easy operation with simple controls
• Compact and lightweight
• Excellent weight / capacity / size ratio
• Minimum effort to lift maximum load
