ASK Tower Supply Part Number 26124 | Times Microwave TC-240-TM-RA-D TNC-Male Right Angle Connector

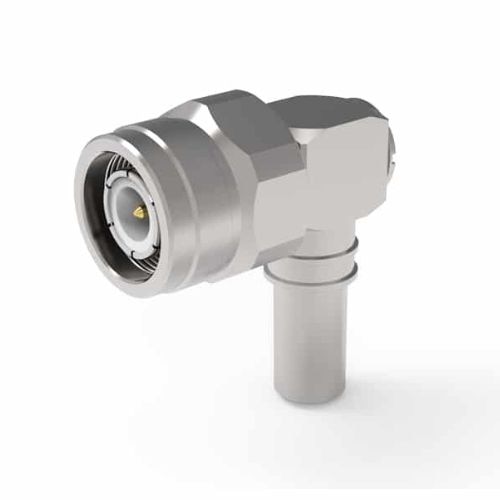

The ASK Part Number 26124, also known as the TC-240-TM-RA-D, is a high-performance, Type TNC male (plug), right-angle, crimp-style connector designed for FBT-240, LMR®-240, and TCOM®-240 cables. This solder-pin connector is the perfect solution for stranded center conductors, providing a secure and reliable connection in demanding environments. Its TNC interface features a threaded, weatherproof design with superior frequency performance, making it an ideal choice for telecommunications, broadcast, and industrial applications.

Key Features:

• Connector Type: TNC male (plug), right-angle design for tight spaces and optimized cable routing.
• Weatherproof Design: Threaded, miniature connector ideal for outdoor and harsh conditions.
• Wide Compatibility: Supports FBT-240, LMR®-240, and TCOM®-240 cable types, including variants such as LMR-240-DB, LMR-240-FR, and more.
• Solder-Pin Construction: Features a solder-on pin for stranded center conductors, ensuring secure and durable connections.
• High-Frequency Performance: Operates up to 6 GHz with a low VSWR (1.35:1).
• Robust Build: Alballoy body finish and gold-plated pin for superior corrosion resistance and conductivity.

Specifications:

• Part Number: TC-240-TM-RA-D
• Stock Code: 3190-6547
• Interface: TNC
• Gender: Male (plug)
• Orientation: Right angle
• Impedance: 50 ohms
• Maximum Frequency: 6 GHz
• VSWR Frequency: 1.35:1 at 6 GHz
• Outer Contact Attach: Crimp
• Inner Contact Attach: Solder
• Dimensions:
  • Length: 33.3 mm (1.31 in)
  • Width: 31.5 mm (1.24 in)
• Weight: 32.44 g (0.07 lb)

Compatible Cables:

• FBT-240
• LMR®-240
• LMR-240-DB
• LMR-240-FR
• LMR-240-LLPX
• LMR-240-MA
• LMR-240-PVC
• TCOM®-240
• TCOM-240-FR

Applications:

The TC-240-TM-RA-D is ideal for use in high-frequency telecommunications, industrial RF systems, and broadcast installations. Its compact, right-angle design allows for convenient cable management in tight spaces, while its robust weatherproof construction ensures durability in demanding environments.

For reliable, high-performance connections with LMR-240 and TCOM-240 cables, the ASK Tower Supply Part Number 26124 is the perfect choice for professionals requiring precision and durability.
