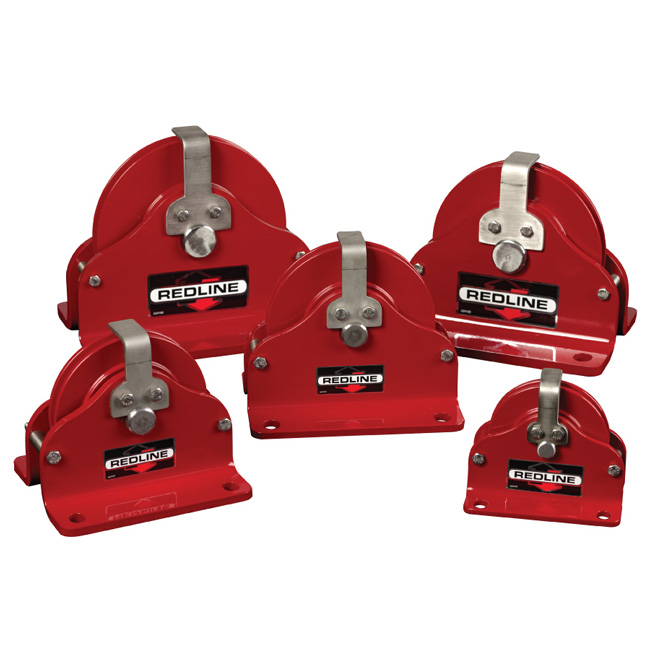

Thern Vertical Lead Blocks

Features:

• Large diameter sheaves
• Sealed needle roller bearings
• Low profile design with a wide mounting base

Available Options and Mounting Fastener Requirements:

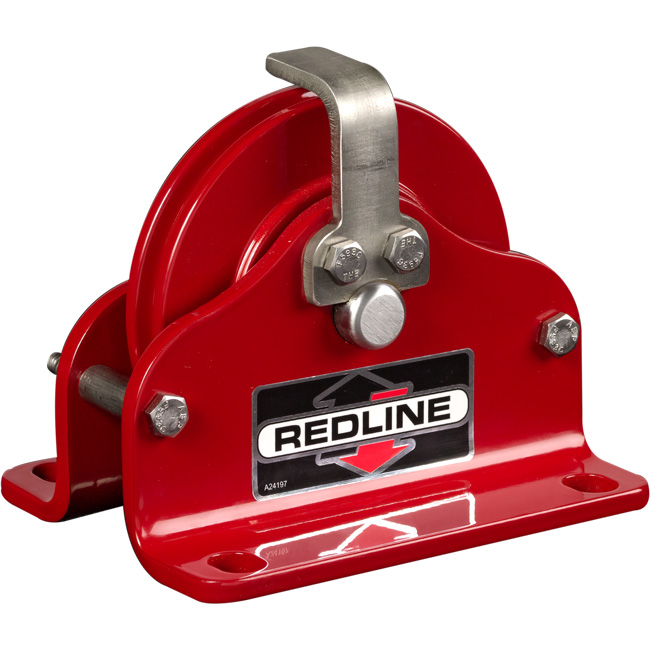

• VLB-G25 | 1/4"   (6mm)   | 7/16 Inch Grade 5 min or M12 grade 8.8 min

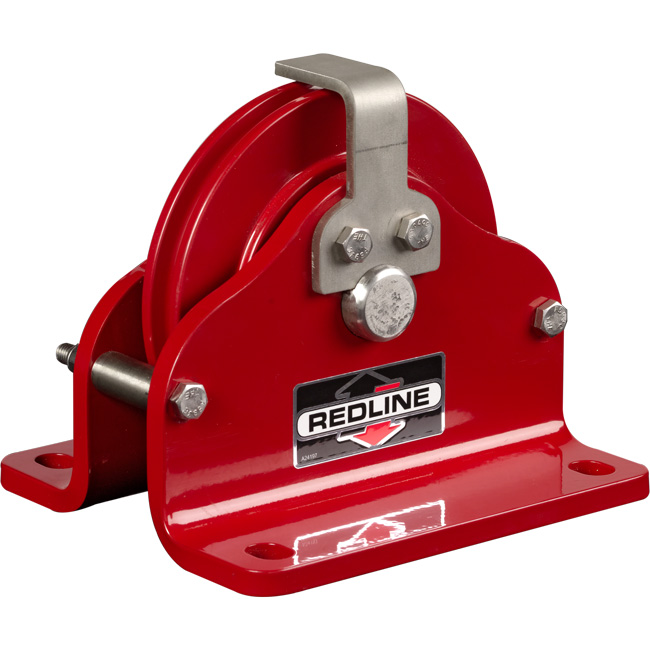

• VLB-G31 | 5/16" (8mm)   | 1/2 Inch Grade 5 min or M12 grade 8.8 min

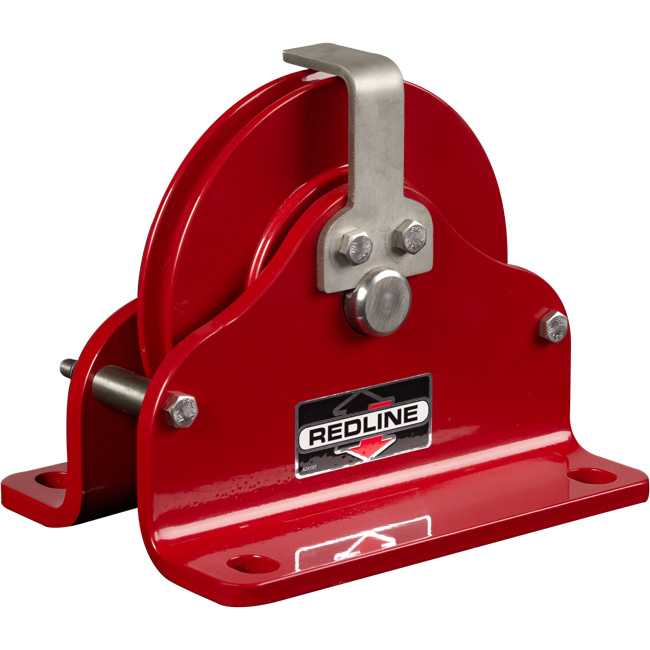

• VLB-G38 | 3/8"   (10mm) | 5/8 Inch Grade 5 min or M16 grade 8.8 min

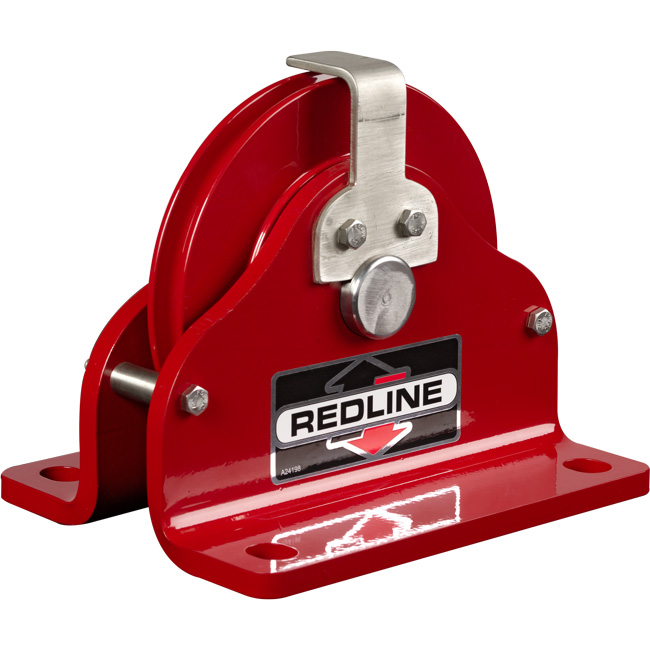

• VLB-G44 | 7/16" (11mm) | 3/4 Inch Grade 5 min or M20 grade 8.8 min

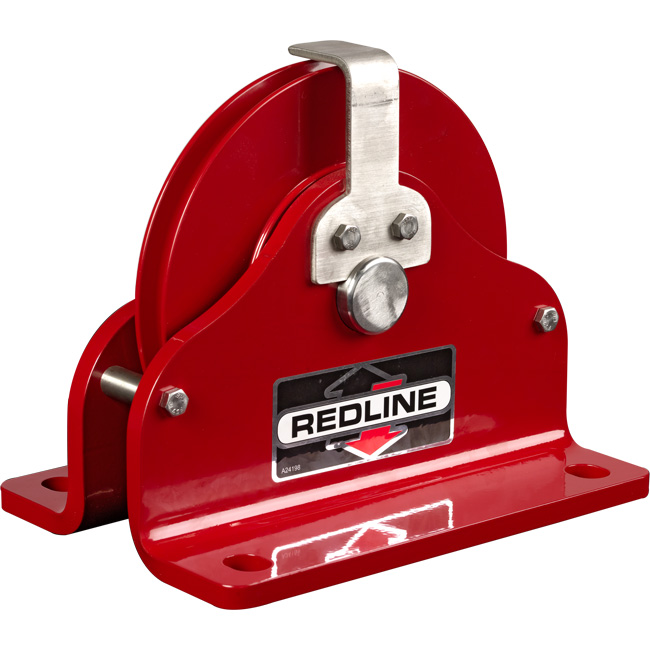

• VLB-G50 | 1/2"   (13mm) | 3/4 Inch Grade 5 min or M20 grade 8.8 min



The Thern Vertical Lead Blocks are used to change the direction of the rope, so a winch can be mounted in a convenient location. The blocks can all be used to guide a rope around obstacles, reducing hazards and extending rope life. The top and side cable keepers provide additional security to prevent the rope from jumping out of the sheave in slackline conditions. The large diameter sheaves help to reduce wear and tear to extend the rope life. The steel sheaves provide an extended life for both the sheave and the life of the line. The sealed needle roller bearing provides smooth rotation with load-bearing strength for larger loads and is easily accessible for maintenance.
