Home > Thern Liberty 2,000 lb Capstan Winch with Swivel Mount

Model#: 3CP2S-AFS

Stock#: TH-3CP2S-AFS

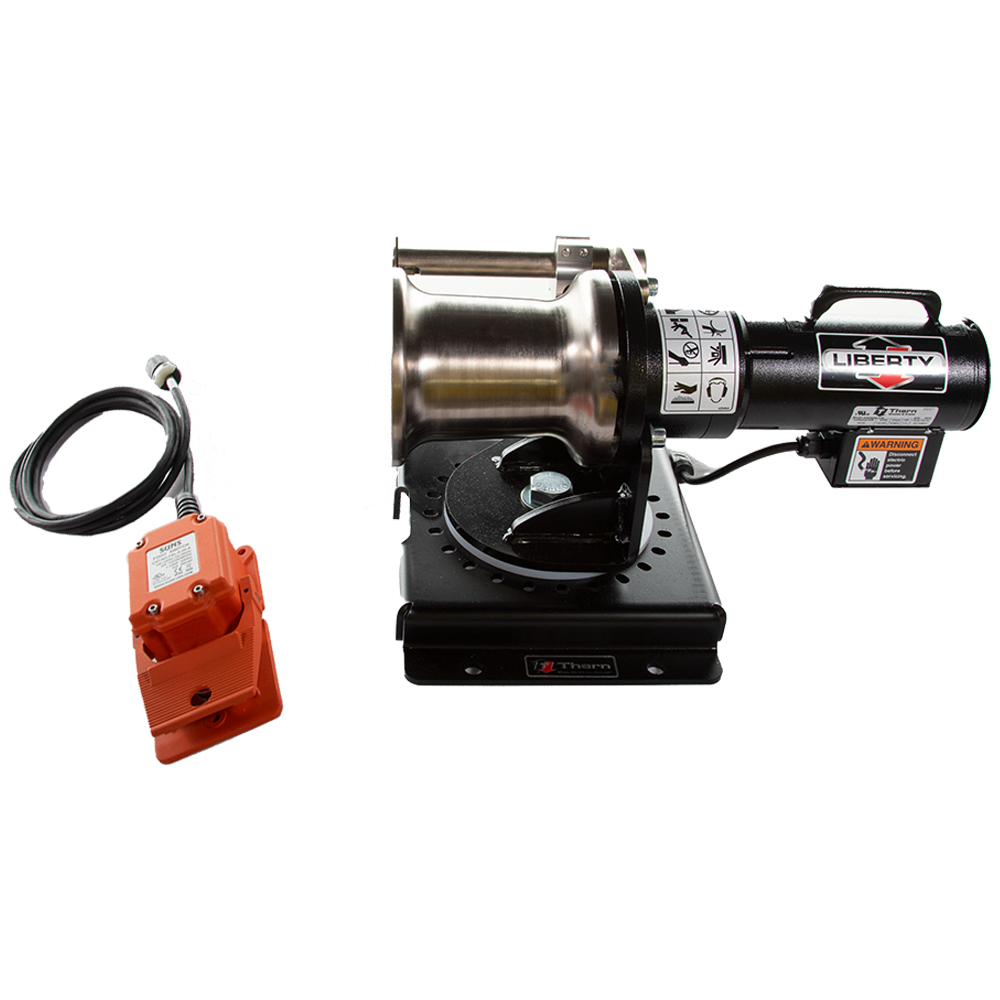

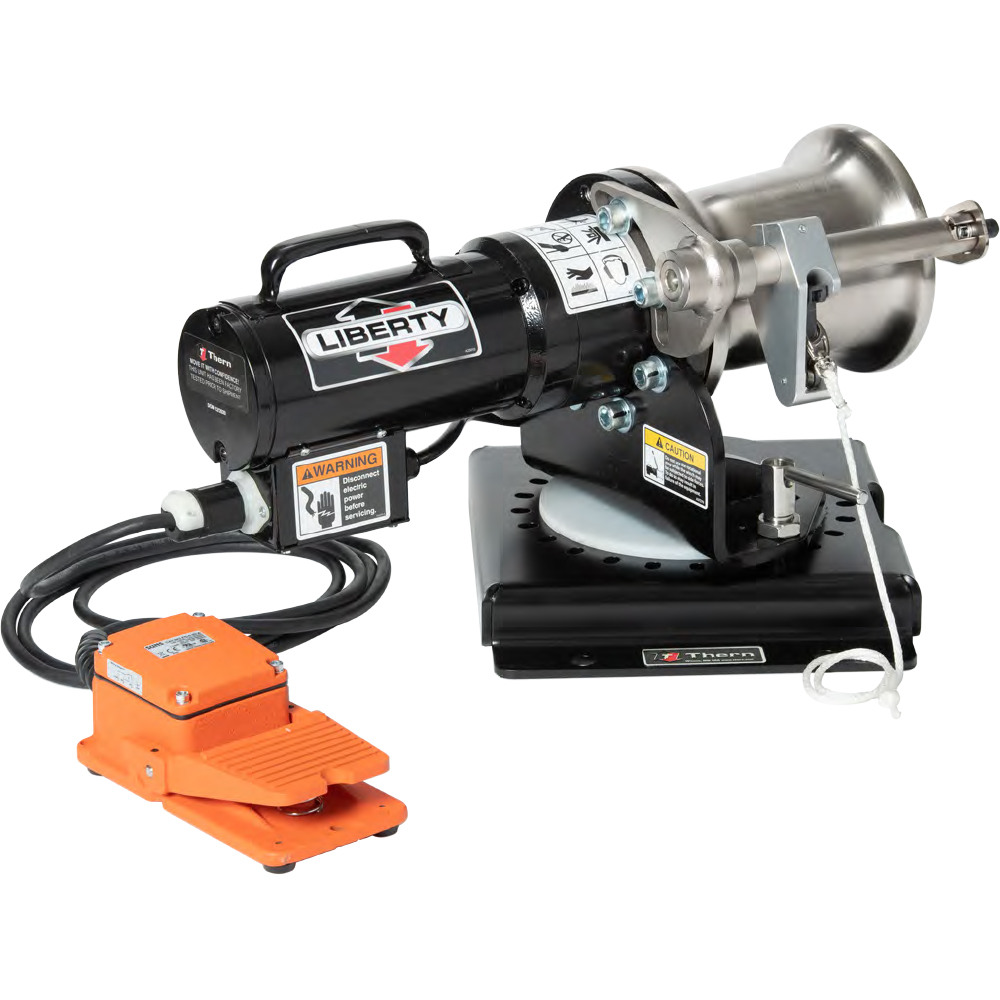

Thern Liberty 2,000 lb Capstan Winch with Swivel Mount

TH-3CP2S-AFS

$5,195.00

THIS ITEM SHIPS FOR FREE!
Direct Ship Ships in: 1+ month

New!
  • Engineered Drum Design
    • Keeps load line from moving during operation, enhancing productivity
    • Nickel-plated steel construction for optimum performance and durability
  • Integral Rope Keep

Thern Liberty 2,000 lb Capstan Winch with Swivel Mount

The Thern Liberty 2,000 lb Capstan Winch with Swivel Mount delivers portable strength and performance. More importantly, quiet operation enhances team communication for increased productivity. A powder-coat finish and corrosion-resistant components ensure dependable operation for many years. The swivel base allows operation at almost any angle—especially when paired with the optional hitch mount. Position your truck once, rotate the winch (15° increments) to align the load, and lock it down. It’s perfect for energy sector tasks in remote locations, including pole setting, stringing lines, maintaining wind turbines, and erecting cell towers.

Features:

  • Engineered Drum Design
    • Keeps load line from moving during operation, enhancing productivity
    • Nickel-plated steel construction for optimum performance and durability
  • Integral Rope Keep
    • Spring-loaded rope keep helps prevent accidental removal of hand line from the drum
    • Corrosion-resistant components improve durability
    • Rope keep bar serves as a carrying handle
  • Premium Motor with Handle
    • Premium motor offers quiet operation (80 dBA)* enhancing clear communication between operators
    • Durable powder-coat finish resists contamination for increased reliability
    • Maintenance-free, permanently lubricated, planetary gearbox for smooth operation and long life
    • UL-Recognized motor
  • Foot Switch Control
    • Foot switch-controlled operation delivers productivity and safety
    • IP65, NEMA 4-rated sealed foot switch allows outdoor use
    • Painted, cast-iron construction and anti-skid feet promote durability and stability for outdoor applications
    • 10-foot cord and twist-lock plug design avoids untimely power disruption, increasing productivity
  • Durable Swivel Frame with Integral Lock Option Available
    • Adjustable rotation in 15° increments to align loads and lock securely with swivel stop
    • Lightweight, engineered design and steel construction provides portability
    • Powder-coated steel finish resists wear and promotes durability
    • Half-inch, Grade 5 mounting hardware enhances security
    • Optional heavy-duty fixed-mount frame
  • Integral Rope Lock
    • Rope lock prevents unintentional lowering of the load
    • Nickel-plated and anodized components ensure durability and smooth handling of the load.
    • Adjustable rope lock accommodates various line exit angles and operator heights

Specifications:

Imperial
Series Maximum Capacity Rope Diameter Range Maximum Line Speed Range Rated Current Draw Input Voltage Ship Weight Ambient Operating Temperature Range Duty Cycle Mount Type
3CP2S-AFS 2,000 lbs 1/2-3/4 in 13-20 fpm 15 amp 115V/1 Phase/50-60 Hz 84 lbs -4 °F- +105 °F 20 mins full load Swivel
Metric
Series Maximum Capacity Rope Diameter Range Maximum Line Speed Range Rated Current Draw Input Voltage Ship Weight Ambient Operating Temperature Range Duty Cycle Mount Type
3CP2S-AFS 900 kg 13-19 mm 4-6 mpm 15 amp 115V/1 Phase/50-60Hz 38 kg -20 °C - +40 °C 20 mins full load Swivel

TH-3CP2S-AFS
Country of Manufacture: United States
Diameter: Rope Diameter: 1/2-3/4"
Manufacturer: Thern
Voltage: 115V/1 Phase /50-60Hz
Weight: 84.00
