Home > Thern 1,000 lb Capstan Winch with Swivel Mount

Thern 1,000 lb Capstan Winch with Swivel Mount

Multiple Options Available
Please select an option below

$3,550.00 to $3,775.00

Hitch Mount? *

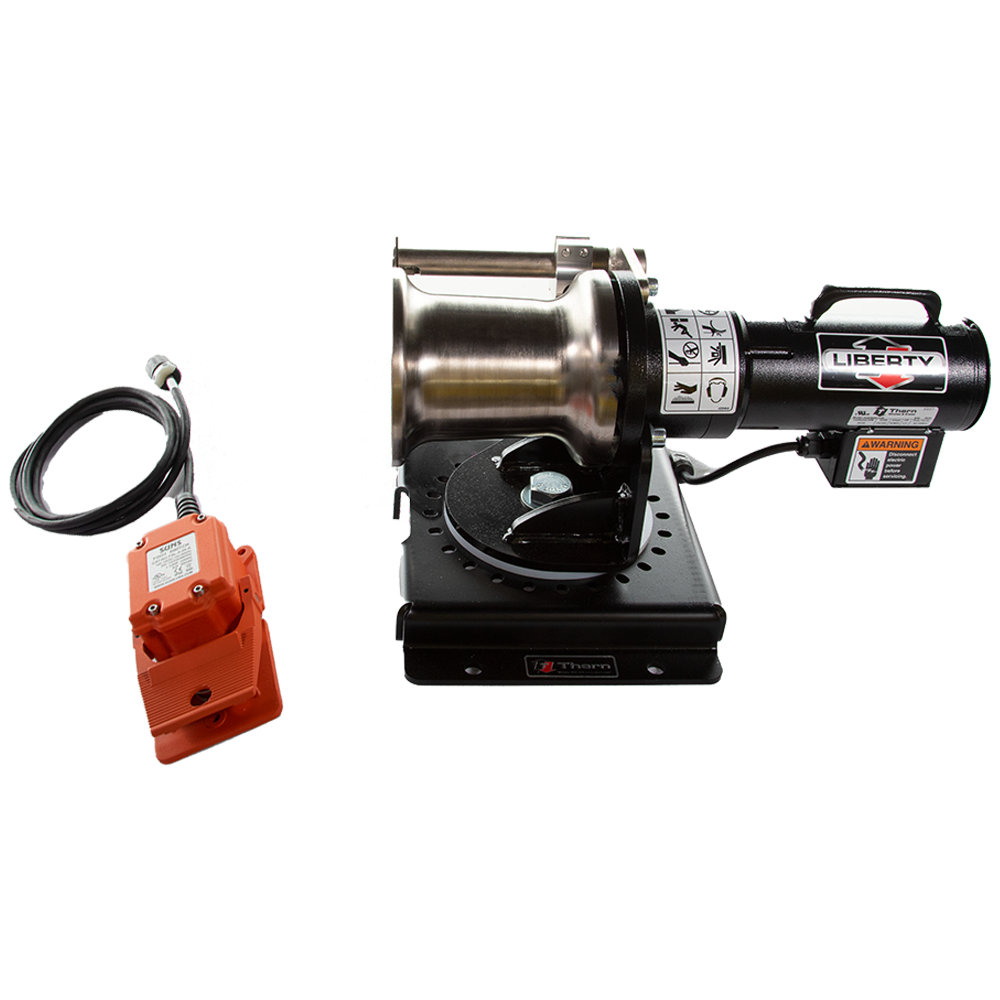

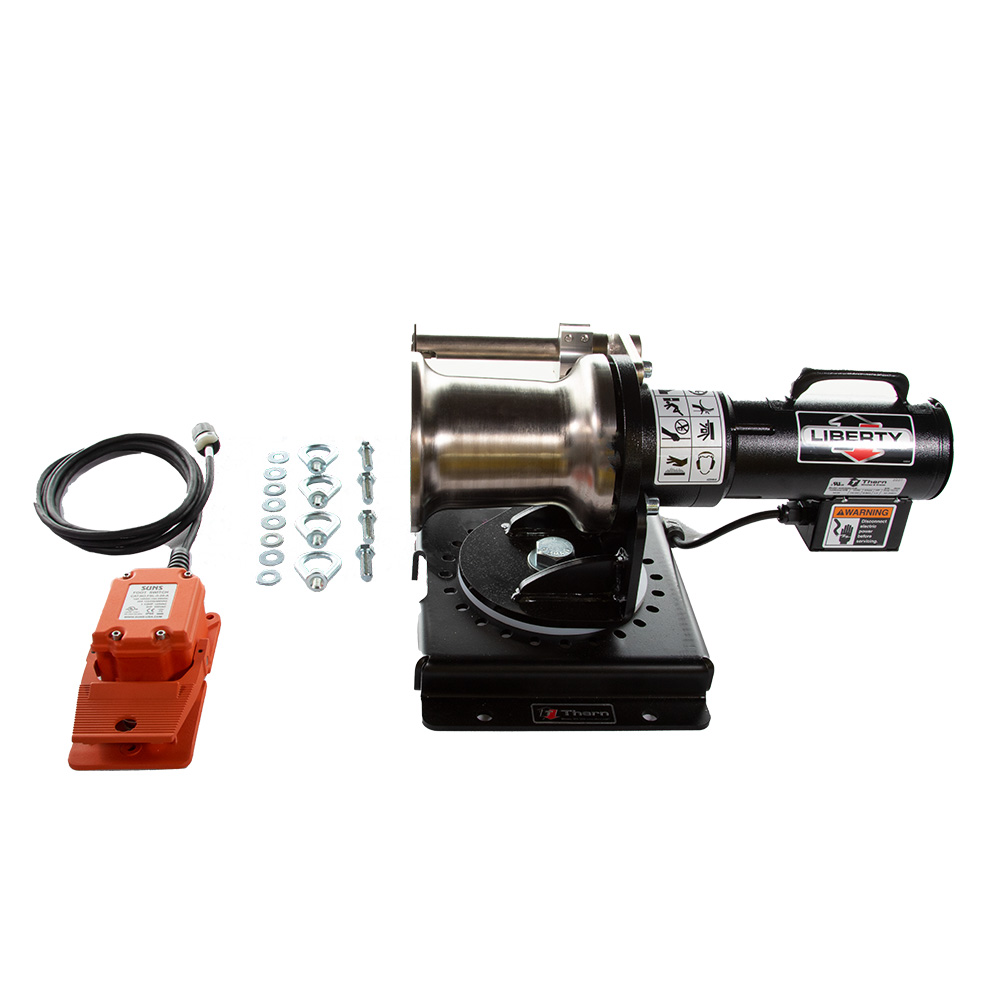

Thern 1,000 Lb Capstan Winch with Swivel Mount


  • Quiet operation with a premium motor that is 80 dBA

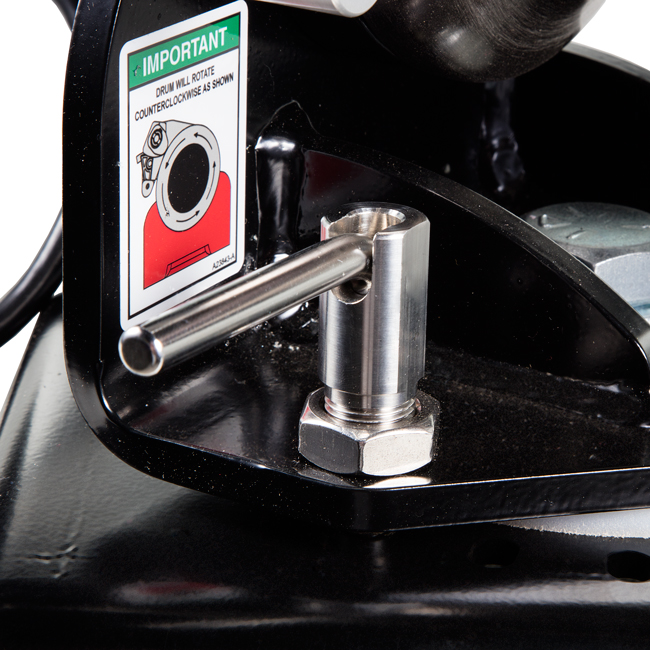

  • Mounted on swivel plate
  • Extremely portable with a lightweight, engineereddesign steel construction

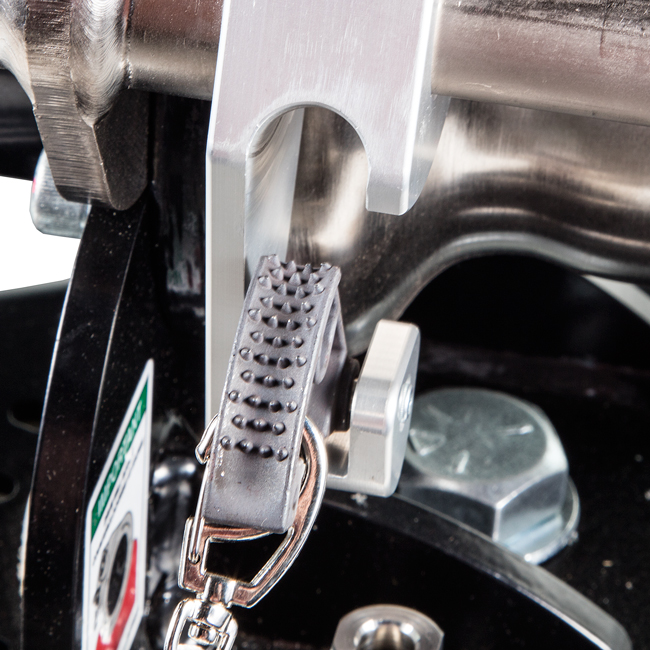

  • Enhanced safety with the integrated rope lock that also adjusts to help with various line exit angles and heights
  • Highly durable with a powder-coated finish and a steel construction

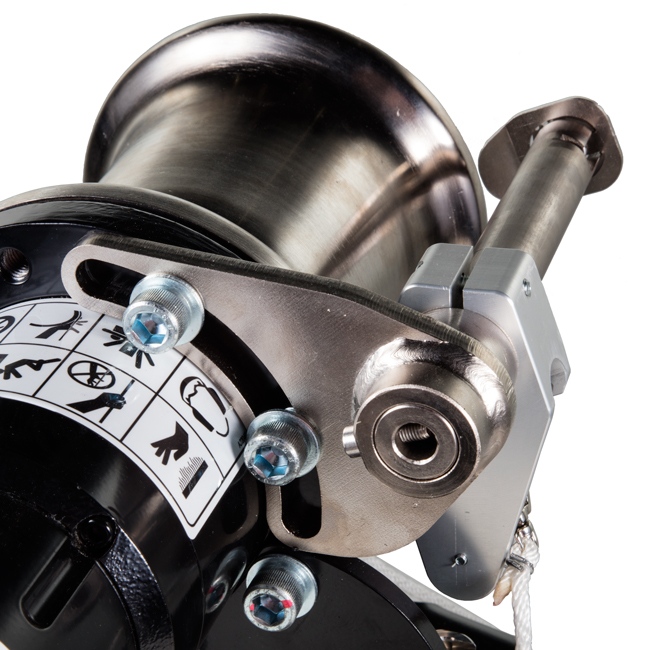

  • Spring-loaded rope keep to help prevent accidental removal of the line

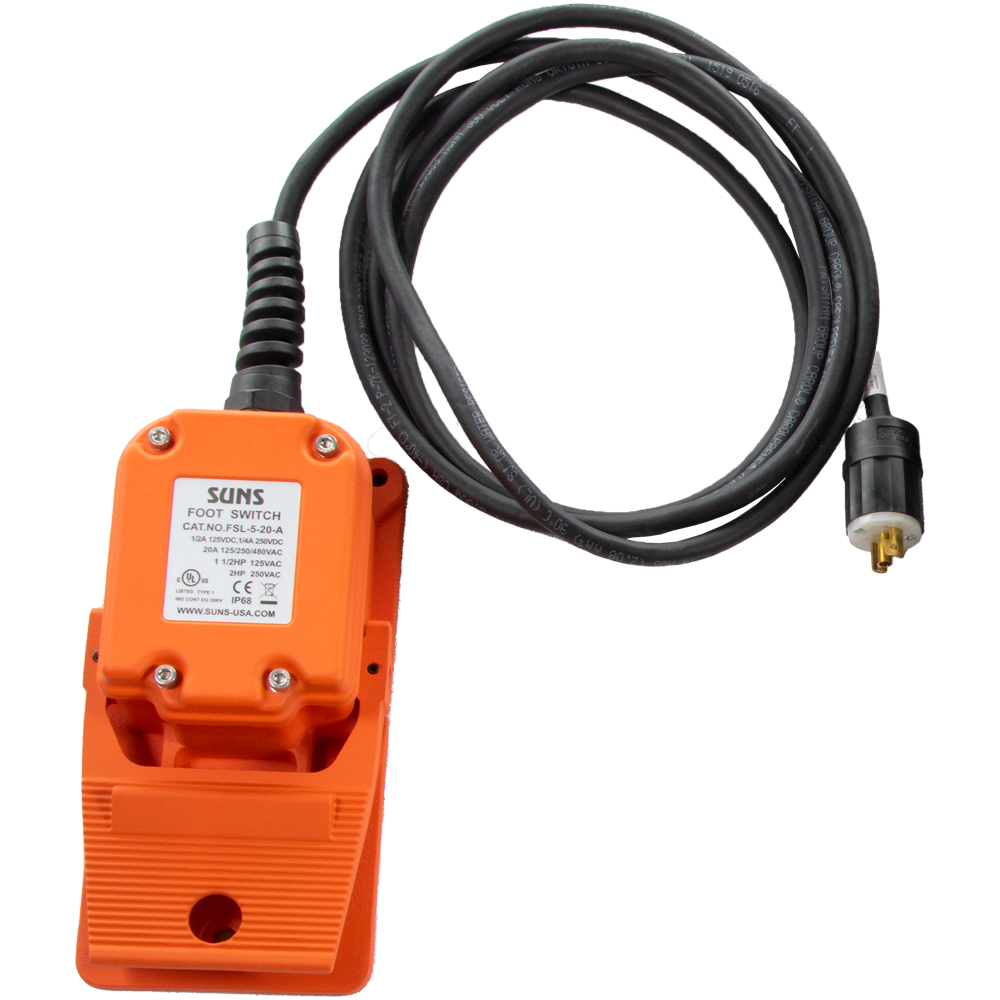

  • Comes with a steel pedal

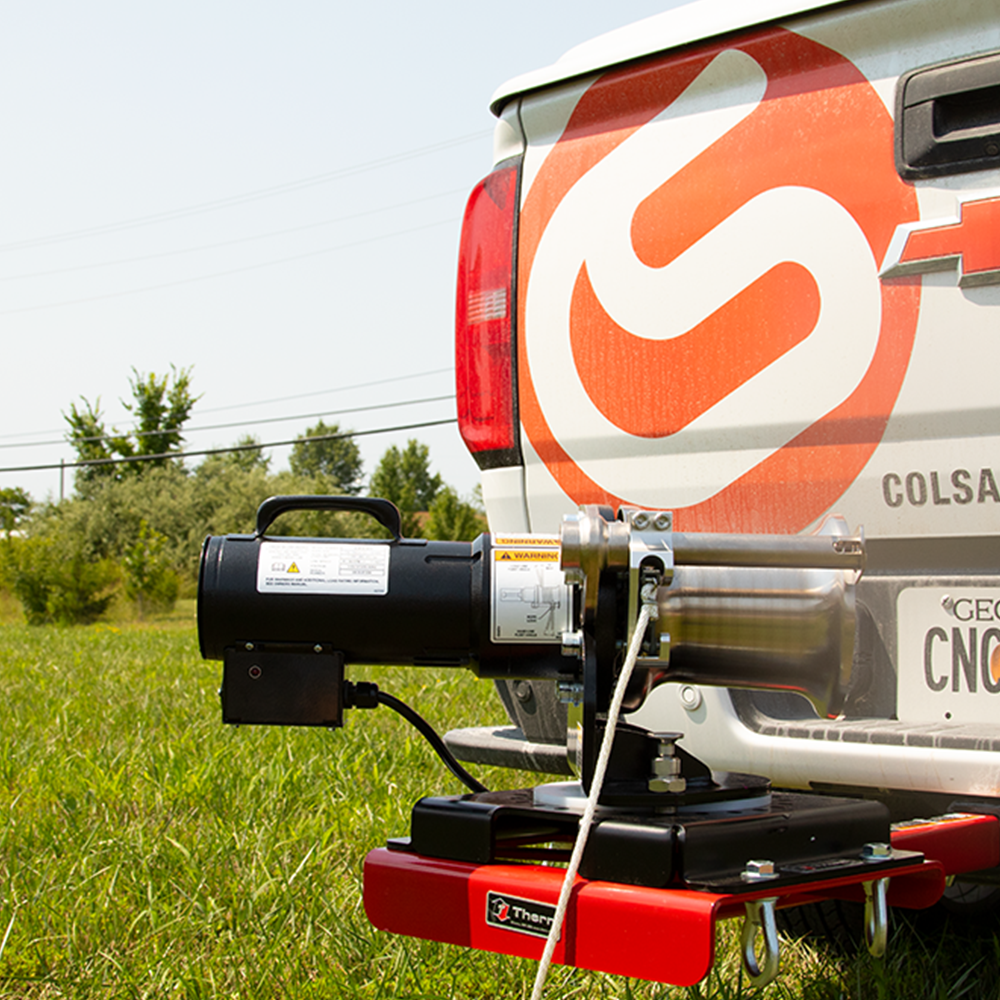

The Thern 1,000lb Capstan Winch is highly portable and helps enhance team productivity with its quiet operation. In a fully powder-coated finish with corrosion-resistant parts to ensure dependability while out on the job. This winch is already mounted on the swivel plate that is super easy to install on the Thern Capstan Hitch Mount and makes it quick to adjust the hoist to any direction needed. The winch also has a spring-loaded rope keep to help prevent accidental removal of the line to enhance safety.


  • Max Capacity: 1,000 lbs (450 kg)
  • Rope Diameter: 1/2-3/4 inch (13-19 mm)
  • Max Line Speed Range: 35 (full load) - 50 (no load), FPM (11-15 MPM)
  • Rated Current Draw: 15 amp
  • Shipping Weight:
    • Capstan With Hitch: 115 pounds
    • Capstan Without Hitch: 72 pounds
  • Ambient Operating Temperature Range: -4 °F - +105 °F (-20°C - +40°C)
  • Duty Cycle: 20 minutes Full Load
  • If Mounted on Hitch:
    • Total Length: 26 inches
    • Length Between Hoist & Service Vehicle: 14.5 inches

Available Options:

  • Capstan Without Hitch Mount: TH-3CP1S-AFS

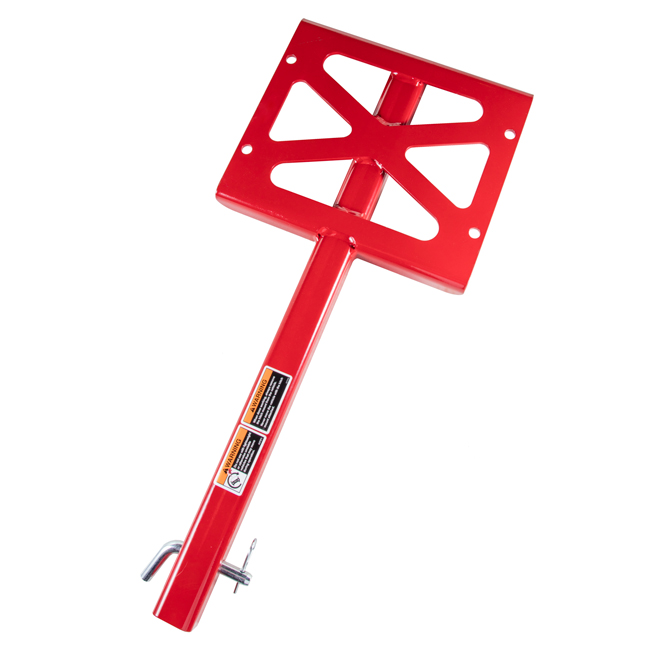

  • Capstan With Hitch Mount: KIT-TH-3CP1S-AFS
Manufacturer: Thern
