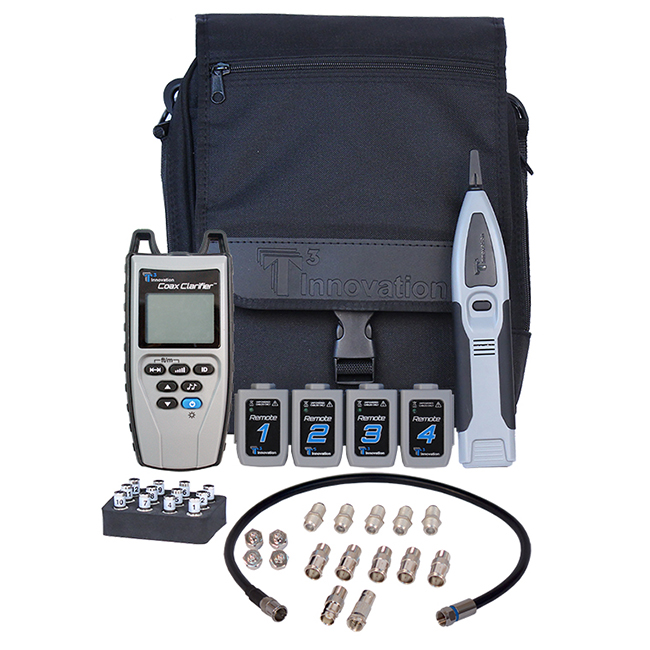

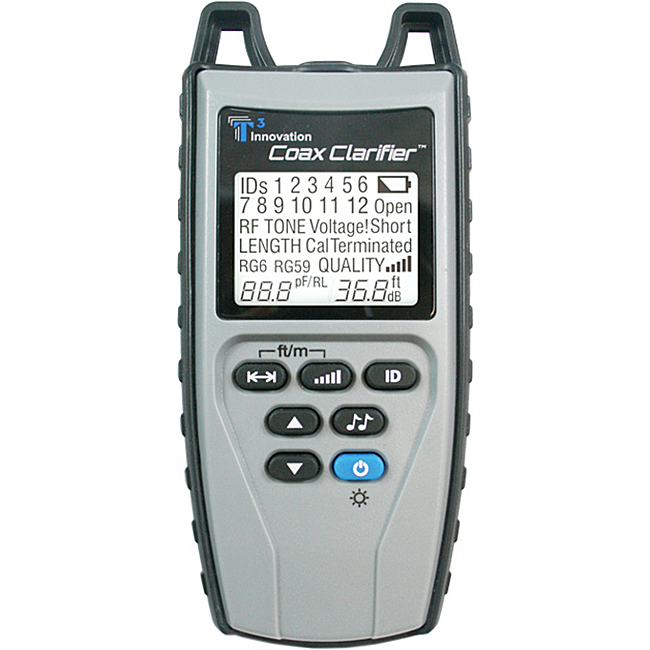

T3 Innovation Coax Clarifier Coax Tester

Test, Map, Profile and Qualify "Dark" Coax Cable Networks. Dark unpowered coax systems give no clue as to their design, condition or configuration. The new Coax Clarifier™ Coax Tester by T3 Innovation makes it simple and easy to discern the layout of a coax network, locate faults on individual cable runs, identify remotes through splitters, and determine cable run length. In addition, separate cable mapper sets allow a technician to map out the entire coax system and measure the quality and characterization of the overall network for carrying services, such as high grade video, surveillance data and HD programming.

Features:

• Fast testing using multiple coax mapper remote sets
• Quickly discover coax system layout configuration to save time
• All testing in one unit: Discovery, Quality and Condition
• Clear concise measurement display for easy understanding of the capability of each run



Testing Modes:

• Coax Run Mapping
  Maps runs through splitters to show an accurate picture of the coax system layout using up to 6 Coax RF Remotes. Up to 12 ID Only Coax Remotes are also available for wiremapping on home runs.
• Cable Length
  etermines cable run length and reports the location of an open or unterminated cable.
• Quality of Network
  Measures overall network quality and clearly depicts network reading as both a bar graph and a digital return loss number, measured in dB.
• Tone Tracing
  Traces coax runs with four unique tones to quickly distinguish between respective outlets
