Sunsight AAT-15 AntennAlign Alignment Tool



Ships in: 1+ month

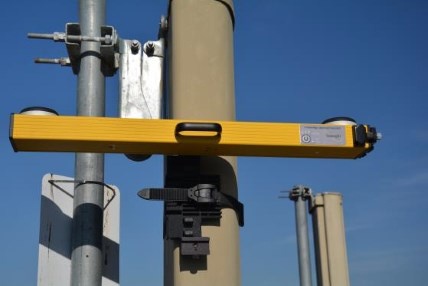

Sunsight AAT-15 AntennAlign Alignment Tool

The Sunsight AAT-15 Antenna Alignment Tool (AAT) ensures accurate antenna positioning during installations, deployments, and operations with its leading-edge techniques. Simple and easy to use, the AntennAlign can be mounted several ways to fit a variety of antenna settings. With its powder-coated aluminum housing, the AntennAlign offers a durable antenna alignment solution that saves time and money. This alignment tool also offers an on-site quick capture feature that collects position data that is not available prior to climbing.

Click here for financing options


  • Align antenna azimuth, tilt, roll and height better than carriers’ specifications
  • Full-size cellular panel antennas, all Ericsson AIR antennas, small cell housings, and the ability to capture azimuth from the ground
  • Create an alignment report for individual antennas or the entire site. Includes azimuth, tilt, roll, height and geographic location (Lat/Long)
  • Send reports with all antenna measurements right from the site using any device (Android, iOS, Windows, etc)
  • No additional software, no post-processing, no cables required
  • Most durable unit available; RF shielded, weatherproofed aluminum housing; wet, cold, extreme heat is no match for the AAT-30
Specifications  AAT-30
Azimuth (Heading) Accuracy
+/- .15 RMS
+/- .3 R95
+/- .4 R99
Tilt and Roll Range and
Accuracy (degrees)
+/- 22.5 range
+/- .1 accuracy
AGL Height (ft) +/- 1 standard
+/- .125 premium
Horizontal Accuracy (ft) +/- 1**
Vertical Accuracy - MSL (ft) +/- 2**
Size (in) 26 x 3 x 2.6
Weight (lb) 4.4

** Depends on multipath environment, number of satellites in view, and satellite geometry. Requires SBAS corrections.

Sunsight offers a 3-year manufacturer warranty. For more information please click here to view their policies. If you need to file a claim, click here to start the process.

Configurable Model: None
Manufacturer: Sunsight
