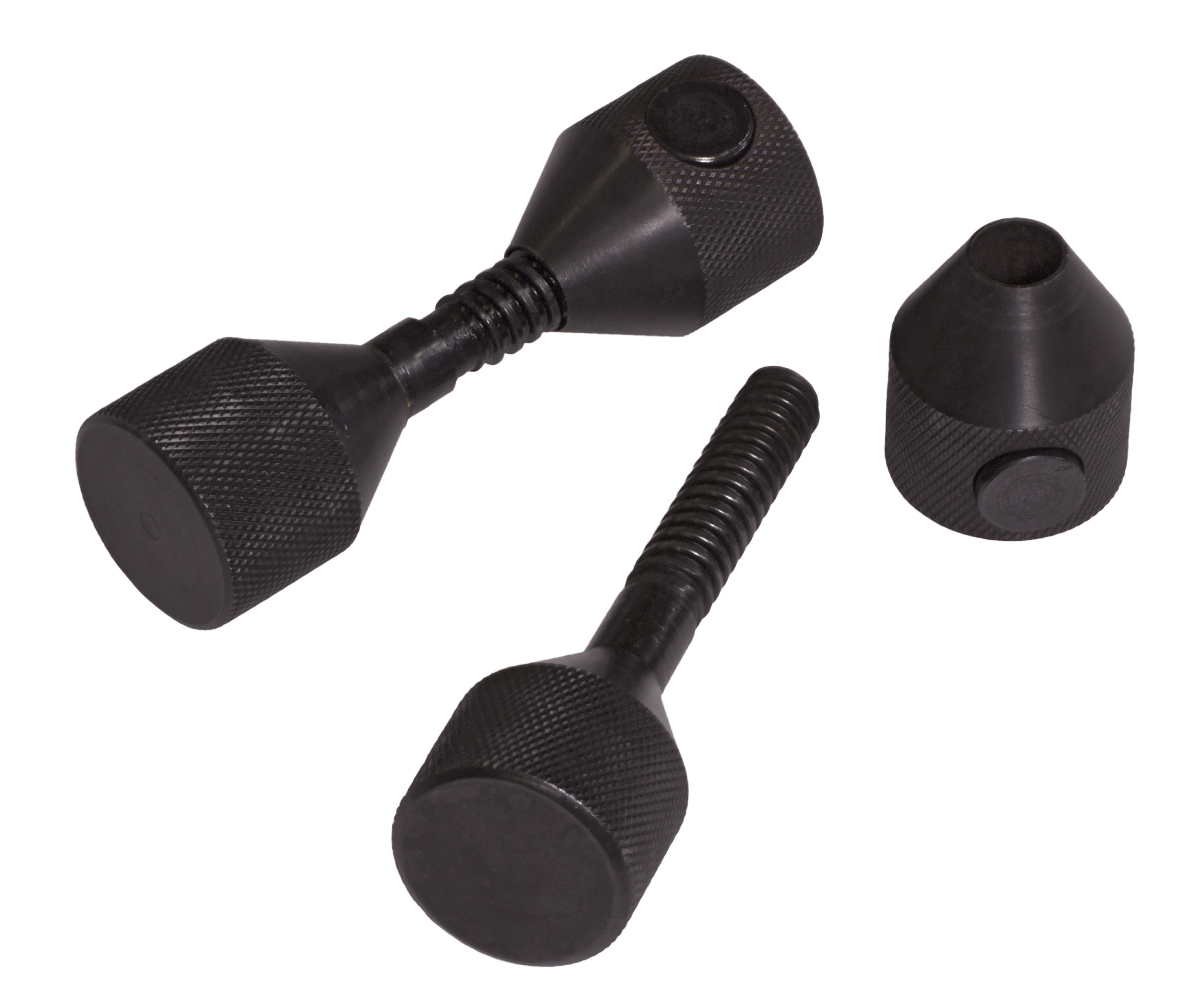

Sumner Qwik Pins for Carbon Pipe Flanges

The Sumner Qwik Pins for Carbon Pipe Flanges are used to accurately align carbon pipe flanges. Qwik Pins will automatically center with holes that are 5/8" to 1-5/8". These pins are quick and easy to install for tack and weld-out purposes.

Features:

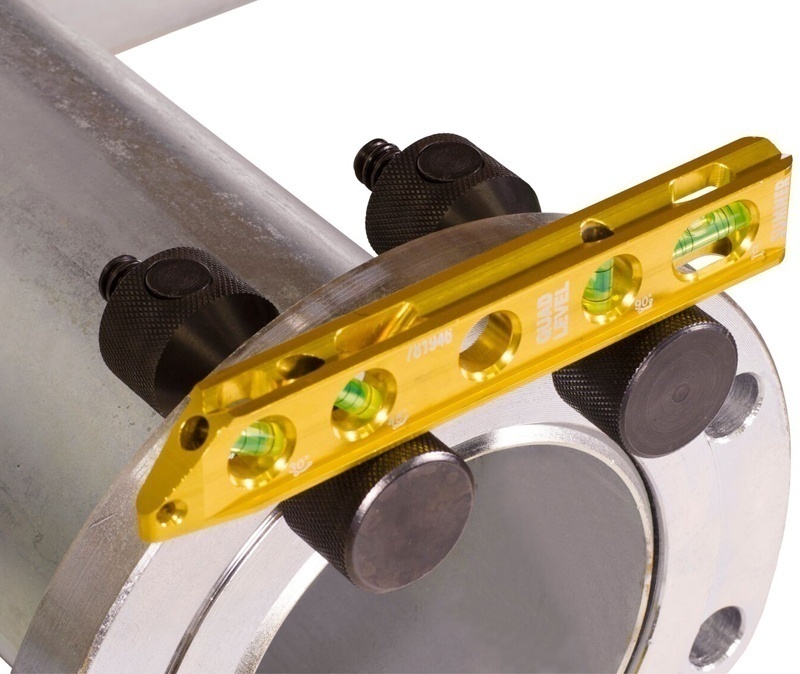

• Quick installing pins work to level flange
• hardened tapered qwik pins automatically center on 5/8" to 1-5/8" holes
• Features Acme threads for maximum clamping power and hardened steel fro long-lasting use

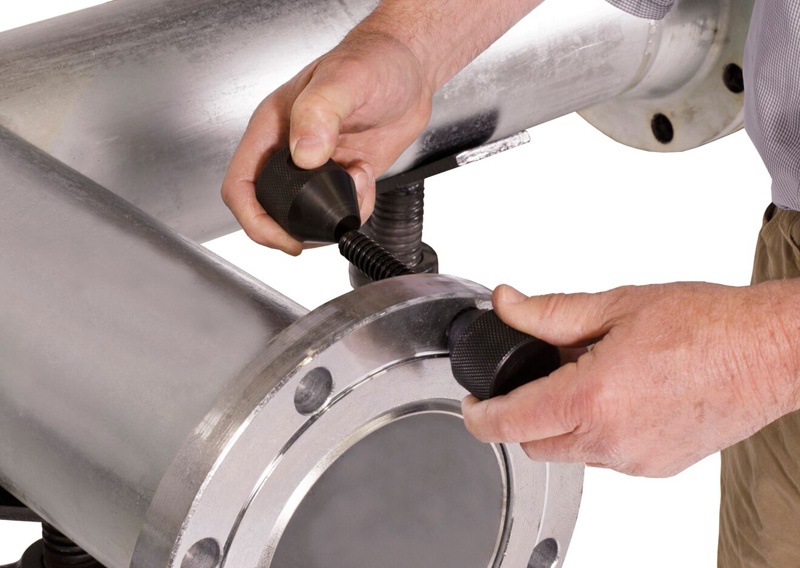

Simple Operation Steps:

• Push spring loaded button
• Separate pin from nut
• Insert into top two flange holes
• Push spring button and reinsert onto pin
• Quarter turn to tighten
