Does not include Hot Sticks

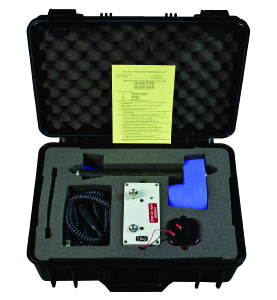

STB Part# 50101-G-02

STB unit replaces 3 separate units manufactured by competitors - line phasing, capacitance phasing and line to ground

Versatile, lightweight and easy to use

Each portable meter has a single range

Meter usage: Voltage detection and phasing at capacitance test points or voltage detection and phasing on bare energized conductors (overhead & underground)

Probes can be separated to be used as a voltage sensor or capacitance sensor

Five position selector switch used to select voltage sensing on capacitance tap or direct line and phasing on capacitance tap, direct line or a battery test position

No exposed conducting terminals or meter circuitry

Locking cable connector provides positive contact

Scale is large enough to be easily read 8'-10' when mounted on a suitable hot stick

Line to ground voltage readings are accurate within 3% at full scale

Maximum operating temperature range -20°F to 165°F (-30°C to 75°C)

25' coiled cable included
