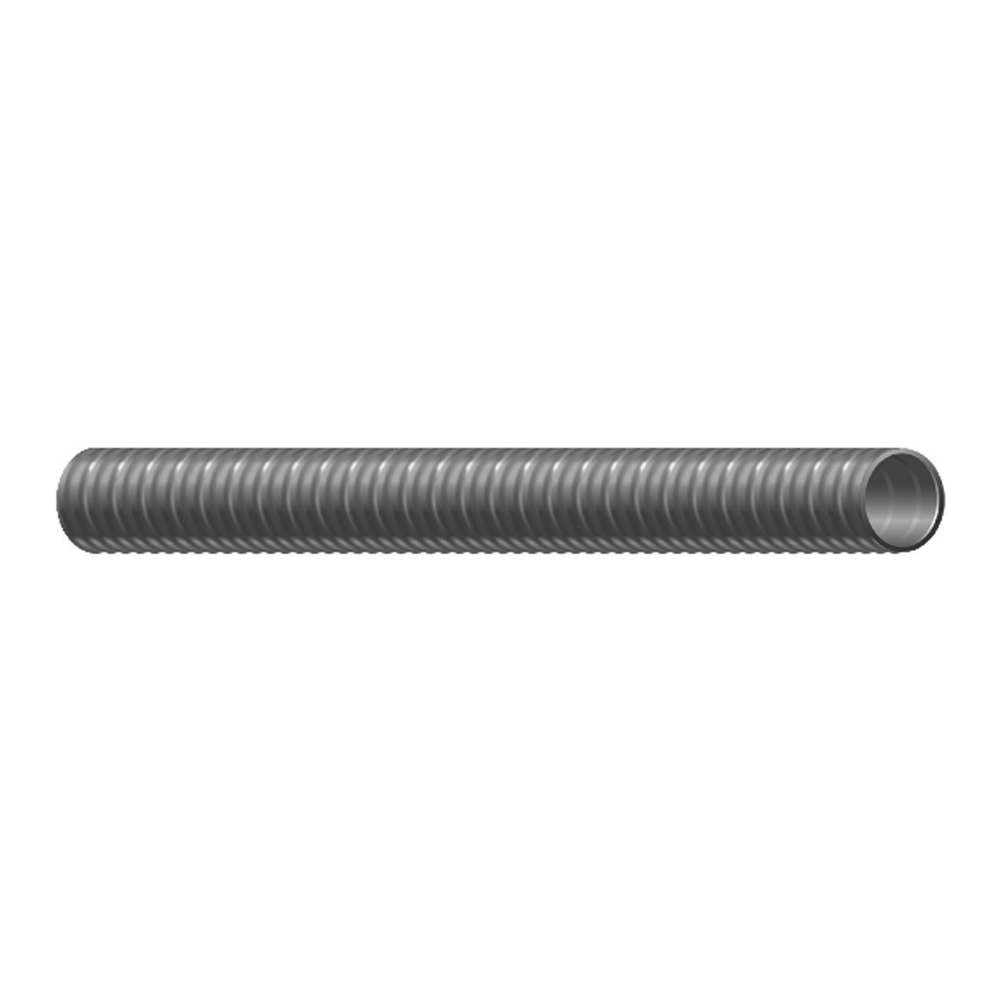

Southwire Ultratite Nonmetallic Gray Conduit 2-Inch x 50-Feet
The Southwire Liquidtight Flexible Nonmetallic Conduit is UL/CSA Listed, oil-resistant, sunlight-resistant, crush-resistant, and is temperature rated -30°C to 80°C.
Applications:
- For the installation and protection of electrical conductors
- Motor circuits - for conductors of motor feeders, branch and control circuits
- Where the conditions of installation, operation, or maintenance require flexibility or protection from liquids, vapors, solids, or weather
- Agricultural buildings per NEC 547.5
- Used in industrial and commercial applications for conveyors, blowers, cranes, air conditioners, machine tooling, and lubrication equipment
- Exposed or concealed installations
- Applications requiring movement, crossover connections, or tight bends
- For direct burial and encased in concrete
- For flexible connections to a swimming pool, spa, and hot tub motors per NEC 680.21(A)(3) & 680.42(A)(1)
- Electric signs and outline lighting supply and secondary-circuit conductors per NEC 600.7, 600.31 (1000 volts or less) & 600.32 (over 1000 volts)
- Hazardous locations - see Additional Applications Section on the following page for more details
Specifications:
- STOCK #: 55094801
- TRADE SIZE (IN): 2 inch
- INNER DIAMETER (MIN/MAX): 2.020 / 2.045 inch
- OUTER DIAMETER (MIN/MAX): 2.340 / 2.375 inch
- NOMINAL TOTAL WEIGHT (LBS/1000'): 620 lbs/1000'
- MIN. BEND RADIUS (IN): 22 inch
