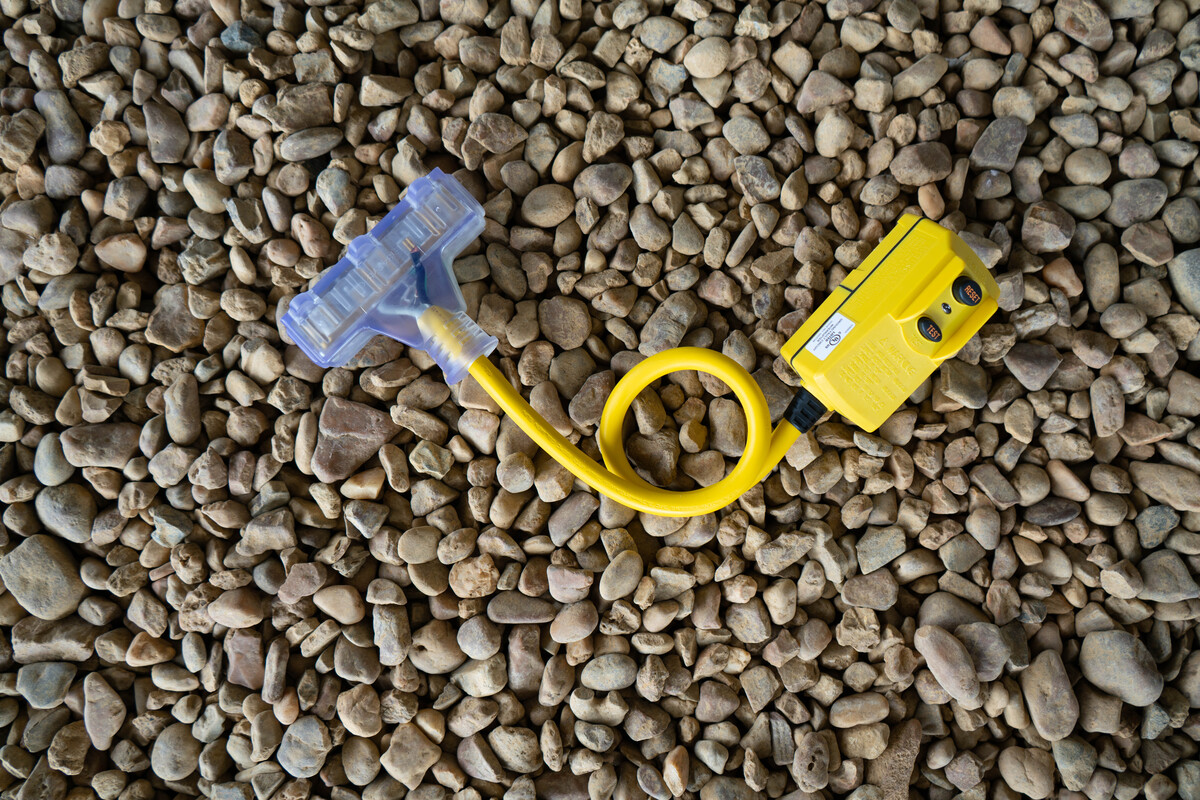

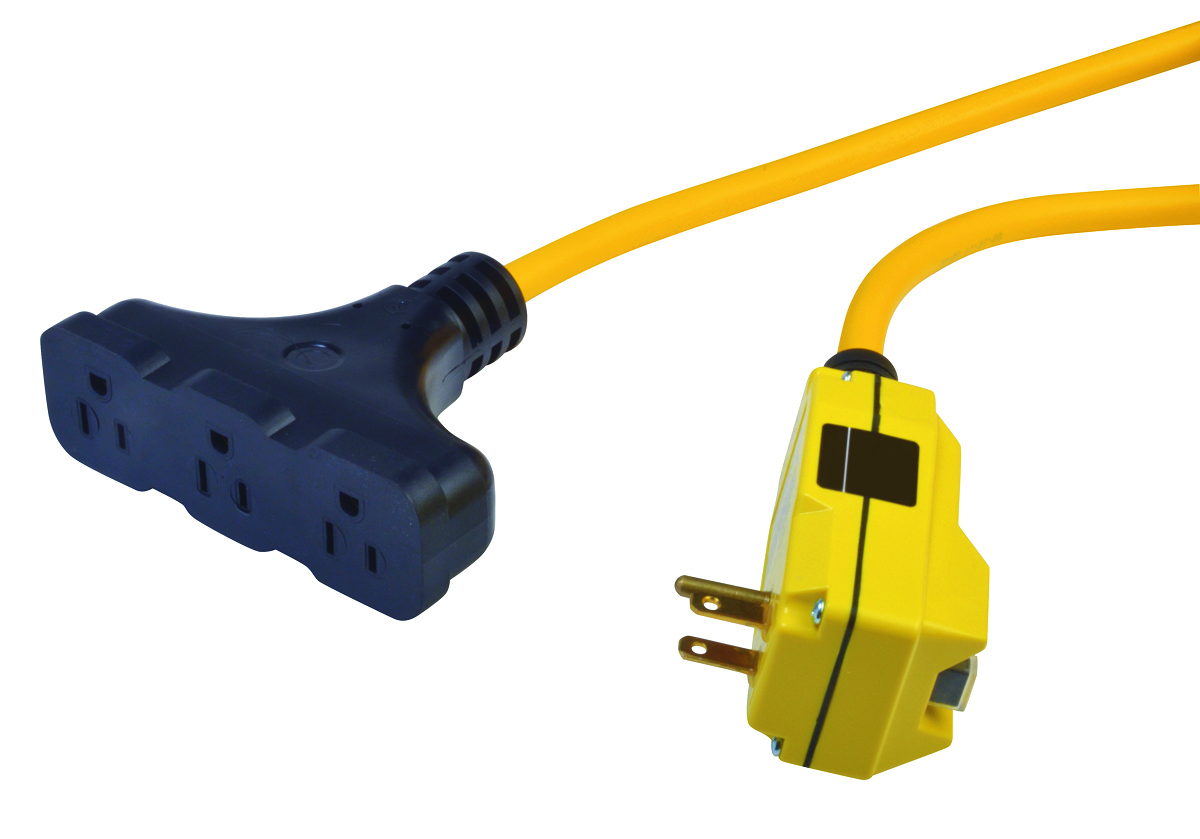

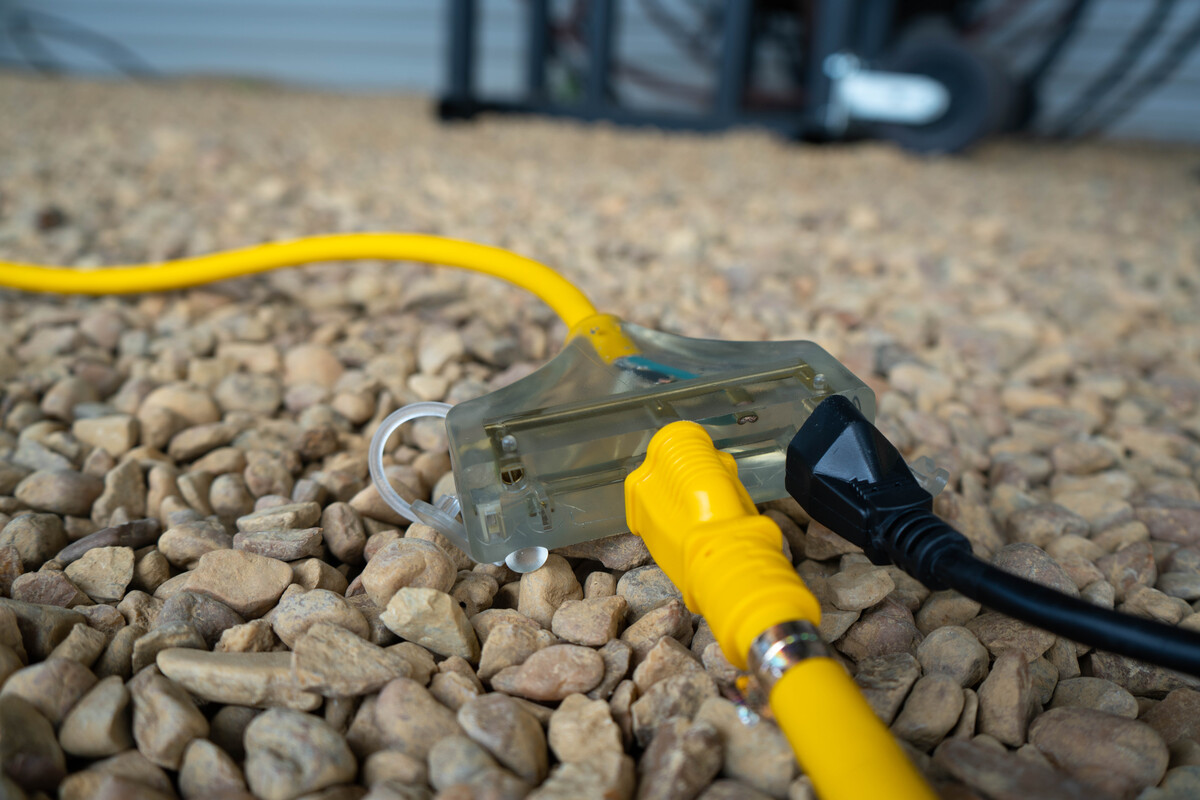

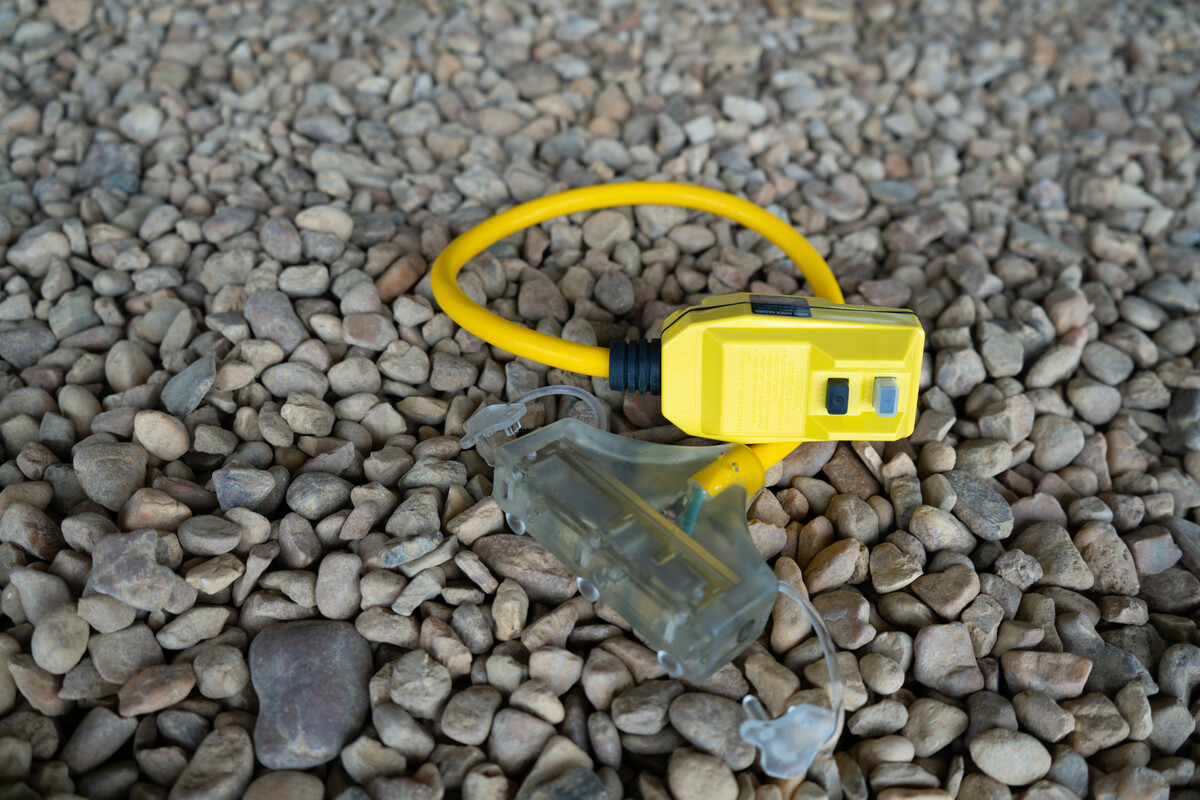

Southwire Right Angle GFCI Cordset with Tri-Source
The Southwire Right Angle GFCI Cordset with Tri-Source is heavy-duty molded with a T-head and three receptacles. The GFCI is an integral part of the male plug that provides protection for the extra heavy-duty cord and three attached tools. This Tri-Source is a 12 gauge cord that is ideal for outdoor-rugged construction-type environments.
Features:
- Applications Include: Construction Sites, Saws, and Drills, Portable Electric Power Tools, Multiple Tools
- NEMA 5-15P & (3)5-15R
- Grounded Neutral: 4 Ohms
- Trip Response Time for Ground Fault and Grounded Neutral Trip: Less Than 25mS and Grounded Neutral Trip
- Radio Frequency Noise Susceptibility: Operates Within Normal Limits With 0.5 Volts Injected On Power Line 150Khz-230Mhz
- Effect of 10 Amp Turn DC Shock Fault Trip: 5% Maximum Trip Level Variation on Ground
- Endurance: 3,000 Operations Minimum
- Overload Current: Six Times Rated Current
- Insulation Voltage: 1500 Vrms - 1 Min.
- Cord Gauge: 12/3 AWG
Specifications:
- STOCK #: 14880023-6
- MODEL #: 14880023-6
- UPC #: 024098902718
- PRODUCT HEIGHT: 14.0 inch
- PRODUCT WIDTH: 2.0 inch
- DEPTH: 6.0 inch
- PRODUCT WEIGHT: 1.2 lbs
- MAXIMUM AMPS: 15
- CUL CERTIFIED: Yes
- CORD LENGTH (FT): 2
- GAUGE: 12/3
- MATERIAL: SJTW-A
