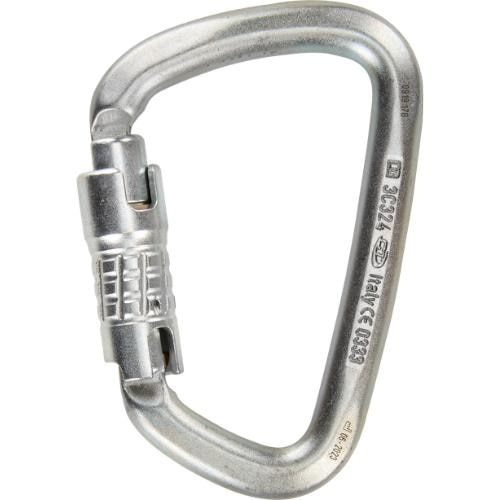

The Skylotec Steel TG ANSI Carabiner Large is a galvanized steel connector engineered for demanding professional applications. This versatile carabiner features a wide zinc steel base with a large automatic triple lock gate and spacious interior design. The robust profile delivers exceptional load capacity with 50 kN major axis strength, 20 kN gate open strength, and 16 kN minor axis strength.

Equipped with the Catch Free closure system, this carabiner provides smoother clipping in and out operations. The keylock form fit design eliminates snagging, while the corrosion resistant galvanized steel construction ensures durability in harsh environments. With a maximum gate opening of 25 mm, this connector is ideal for applications requiring the connection of multiple devices.

Key Features

• Large capacity base with spacious interior for multiple device connections
• Triplex twist lock automatic locking mechanism for enhanced security
• Catch Free closure system for smooth clipping operations
• Keylock form fit design prevents snagging
• Corrosion resistant galvanized steel construction
• 25 mm gate opening accommodates various attachment points
• Robust profile with exceptional load capacity

Manufacturer Specifications

• Material: Steel
• Finish: Galvanized silver
• MBS Major Axis: 50 kN
• MBS Gate Open: 20 kN
• MBS Minor Axis: 16 kN
• Gate Opening: 25 mm
• Locking Mechanism: Trilock
• Form Fit: Key Lock
• Carabiner Type: Type M per EN 362 2004
• Min Temperature: negative 35 degrees C
• Max Temperature: 45 degrees C
• Net Weight: 0.28 kg
• Maximum Lifetime: 30 years
• Swivel: No
• Anti Twist Device: No
• Fall Indicator: No

Certifications

• EN 362 2004 M
• ANSI Z359.12 2019
