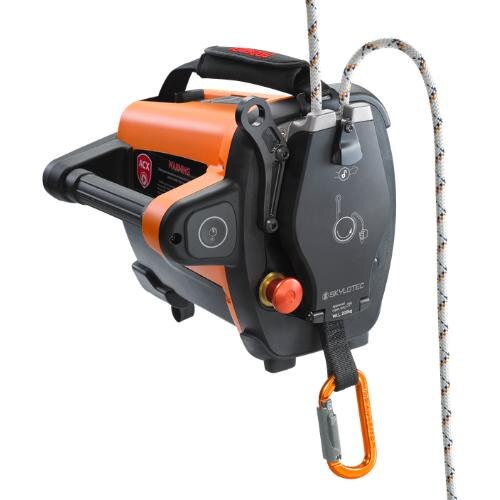

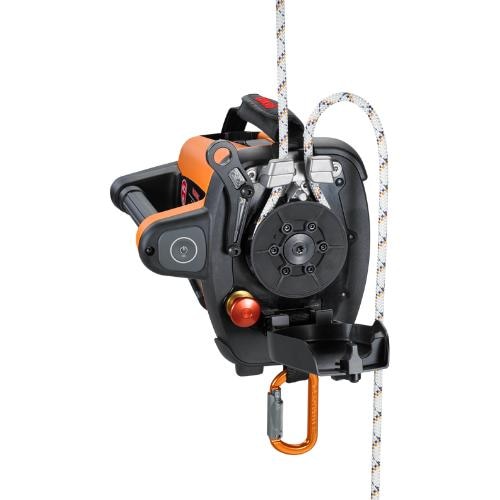

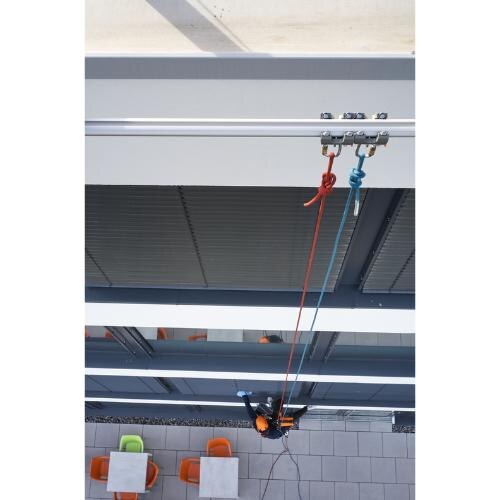

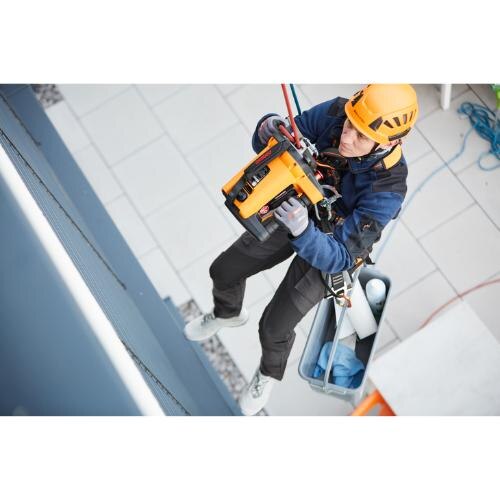

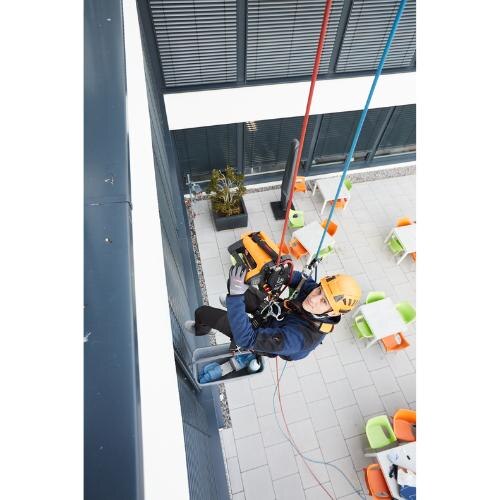

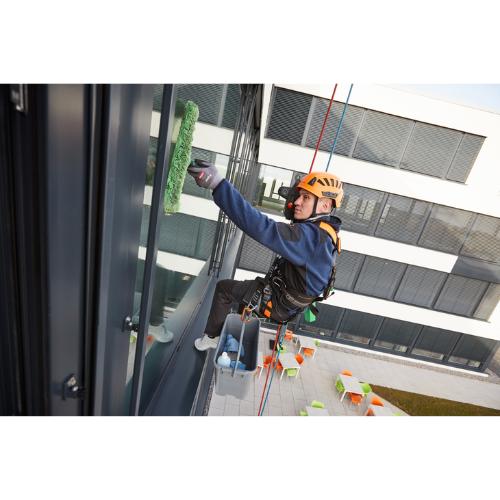

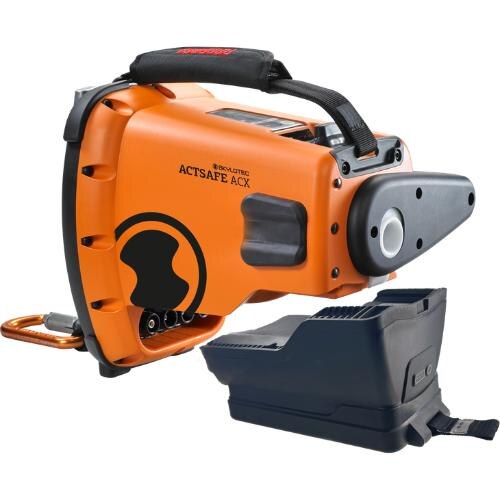

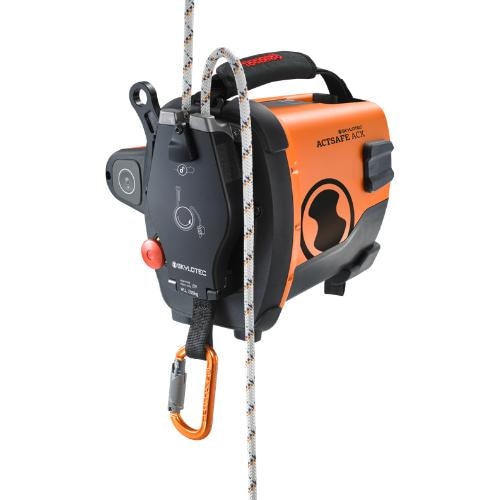

The Skylotec ACTSAFE ACX Power Ascender (POA-001-US) is a battery-powered hoist system engineered to ensure the transport of persons or loads to areas that are difficult to access and where occasional or recurring work is carried out. The ACX is used for cleaning facades or windows, maintenance of complex building structures, rotor blade maintenance of wind turbines, and transporting loads on masts. The system considerably simplifies and accelerates work on complex structures and makes expensive access systems or lifting platforms superfluous.

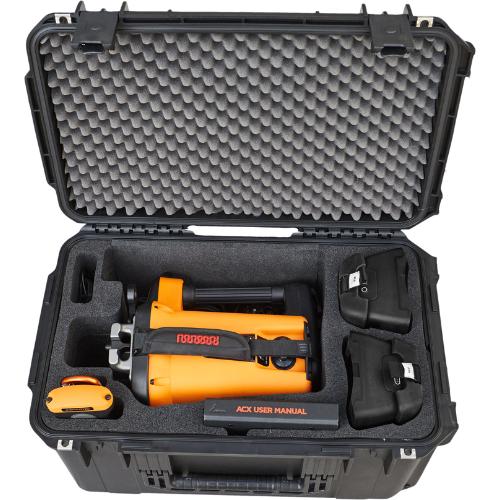

This complete set includes the battery-operated power ascender unit, two high-capacity rechargeable batteries, remote control, and a US regional charger. The ACX forms a highly flexible system for easy and cost-efficient cleaning or maintenance operations. Countless rescue scenarios can be carried out efficiently and with minimum effort using the ACX. In an emergency, the unit can be controlled by remote control. Operation and use of the ACX can be learned in special training courses.
Key Features
- Battery-operated motorized hoist for transporting persons or loads to difficult-to-access areas
- All-in-one set includes two high-capacity batteries, remote control, and US regional charger
- Extended performance with high-capacity batteries for increased range
- Emergency descent and emergency stop functions for safety

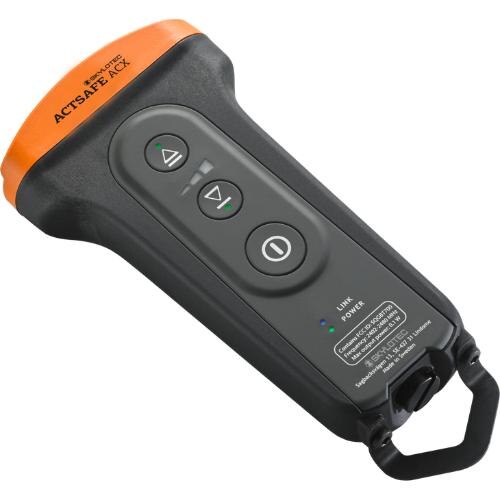

- Remote control operation with 150 meter range
- Variable speed control for both ascent and descent operations
- IP 55 water and dust resistance rating
- Eliminates need for expensive access systems or lifting platforms
- Suitable for facade cleaning, window cleaning, building maintenance, wind turbine maintenance, and mast applications
- Efficient solution for rescue scenarios with minimum effort
Specifications
- Part Number: POA-001-US
- Working Load Limit: 220 kg
- Battery Range at 20 degrees C with 100 kg Load: 550 m
- Charging Time: 90 minutes
- Remote Control Range: 150 m
- Compatible Rope Diameter: 11.00 mm (minimum and maximum)
- Descent Speed: 1 to 25 meters per minute
- Ascent Speed: 1 to 24 meters per minute
- Operating Temperature Range: -10 degrees C to 40 degrees C
- Noise Level: 0 to 76 dB(A)
- Water and Dust Resistance: IP 55
- Energy Source: Removable Battery, POA-004 power supply
- Number of Rechargeable Batteries Included: 2
- Regional Charger: US
- Material: Steel, Aluminium, Nylon
- Dimensions: 63.00 cm length x 37.00 cm width x 42.00 cm height
- Weight: 30.00 kg (net and gross)
- Color: Orange
- Emergency Descent Function: Yes
- Emergency Stop Function: Yes
- Underwater Operations: No
- Usable in SEAL PAC: No
Application Areas
- Working in confined spaces
- Working on masts and towers
- Scaffolding operations
- Rescue operations
- Rope access applications
- Various industrial and maintenance applications
