Rock Exotica Omni-Block 4.5 Inch Rigging Pulley / Material Handling Block

Status:
Typically ships same day if ordered by 7pm EST
FREE SHIPPING!
$395.00

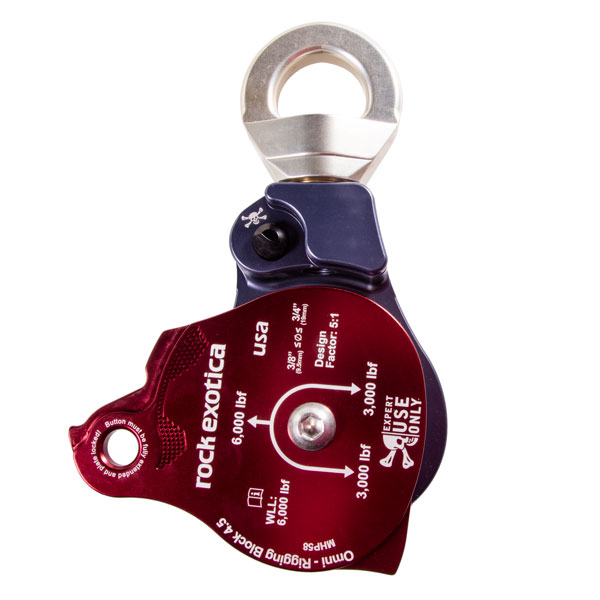

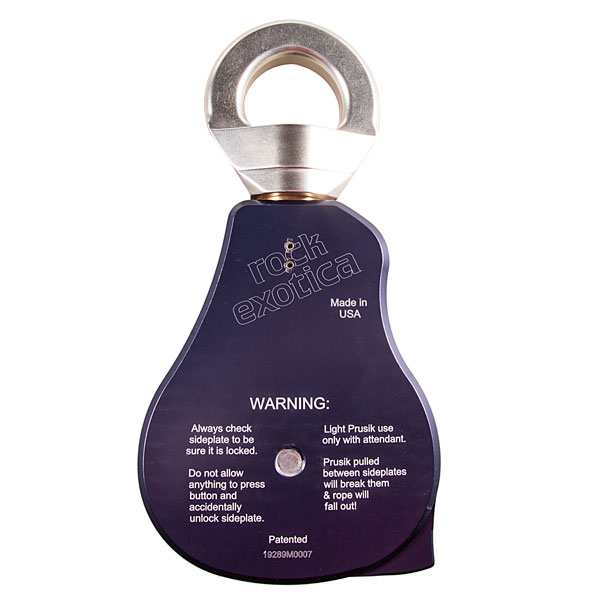

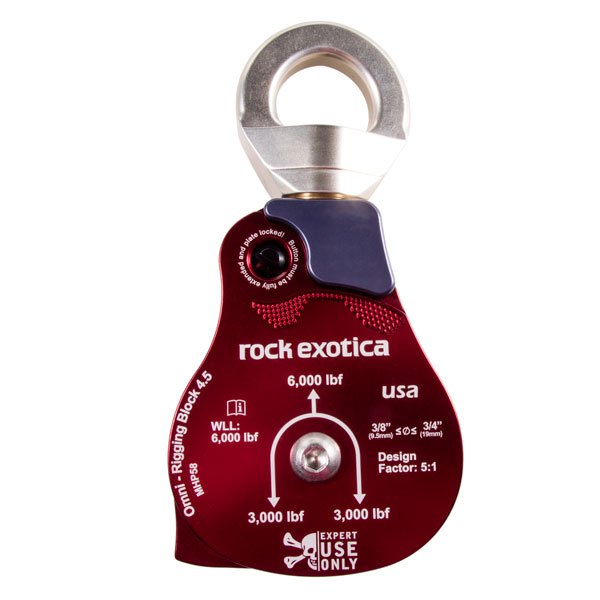

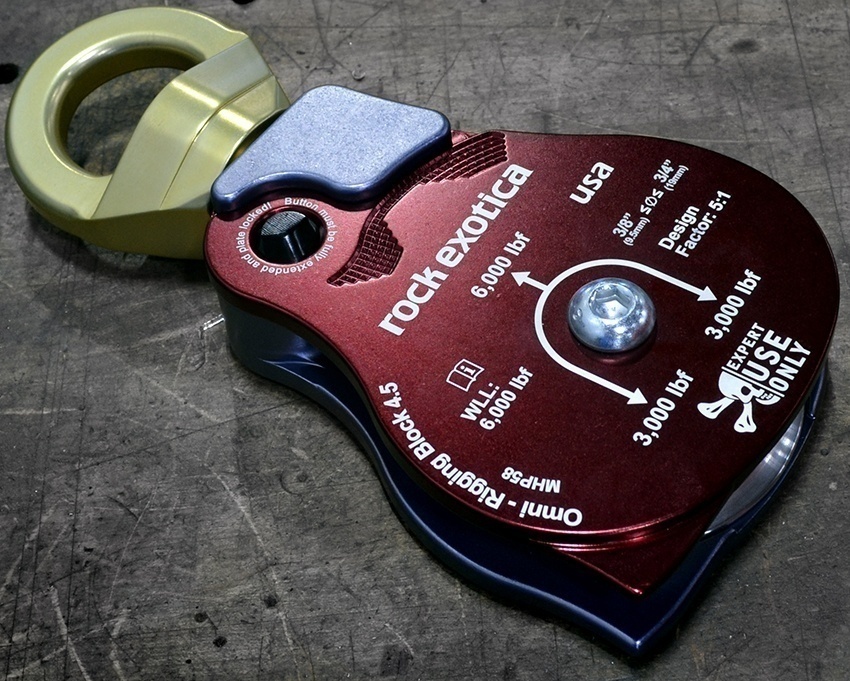

Rock Exotica's Material Handling Block features a sheave diameter of 4.5 inches and a WLL of 6,000 lbf.

Rock Exotica Omni-Block 4.5 Inch Rigging Pulley / Material Handling Block

The Rock Exotica Omni-Block is a game-changing block, new to the scene in Lifting and Rigging. The largest, most efficient block from Rock Exotica, features a large 4.5" sheave and 6,000 lbf WLL. Designed with 3,000 lb Capstan Hoists in mind, the big brother to the MHP 55 can handle 3/4" rope and is ASME B30 Compliant.

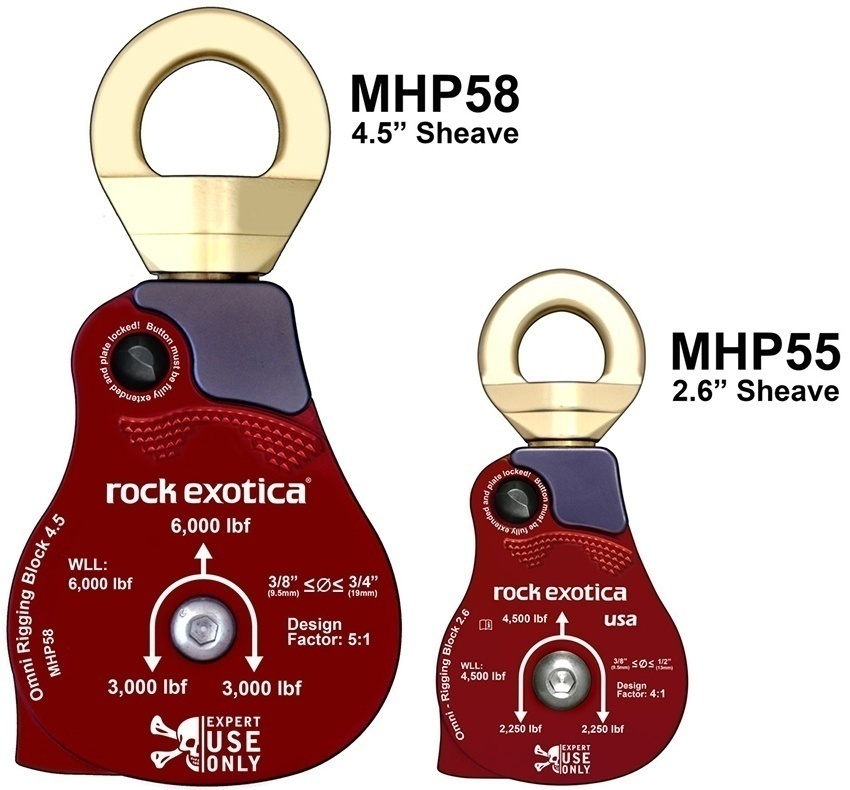

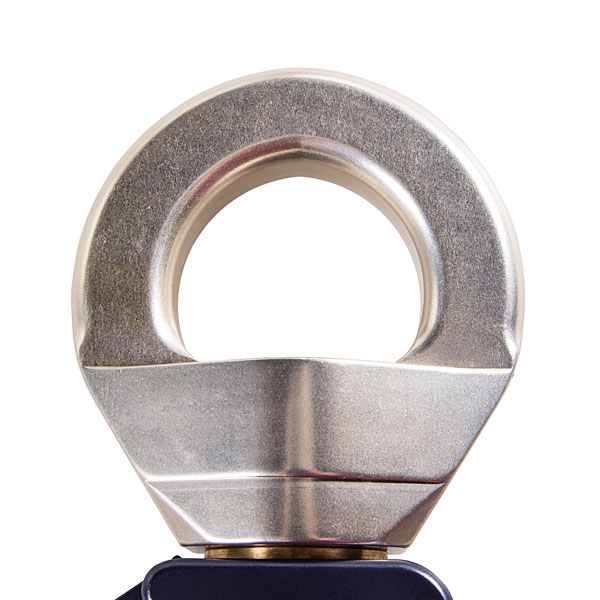

Rock Exotica's Material Handling Block features red side plates to easily differentiate it from other Rock Exotica Omni Blocks which aren't designed for overhead lifting. The MHP58 is the largest block in the Omni family and features a large 4.5" sheave and a 6,000 lbf WLL. The MHP58 is targeted to the industrial user, where ASME B30 compliance for material handling is a must. The integrated swivel allows the block to orient while reducing gain during lifting and rigging applications. The rope can be installed and removed with one hand, all while remaining connected to the anchor.

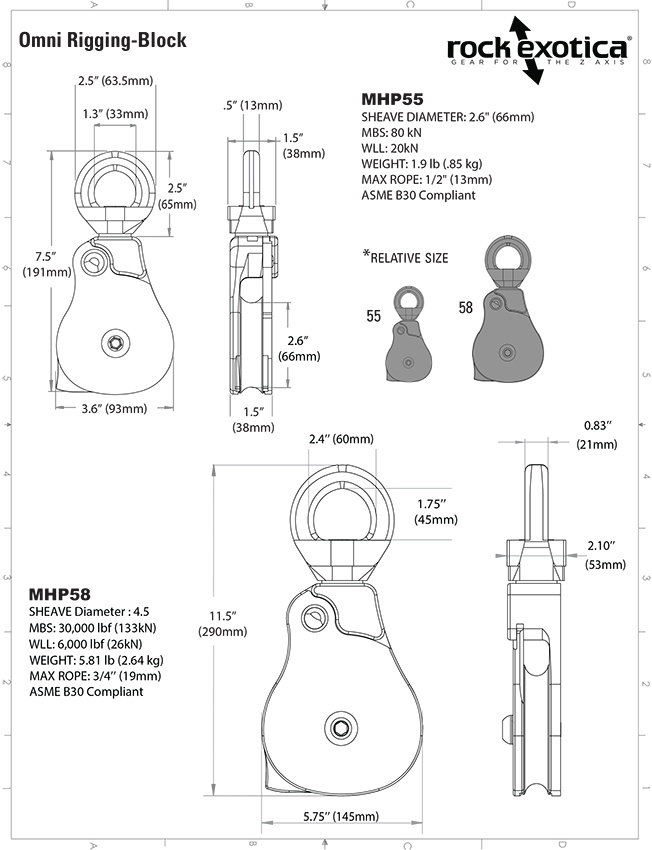

Specifications:

  • WLL: 6,000 lbf
  • MBS: 30,000 lbf (133kN)
  • Design Factor: 5:1
  • Max Rope Diameter: 3/4 Inch
  • Min Rope Diameter: 3/8 Inch
  • Block Sheave Diameter: 4.5 Inch
  • Weight: 5.81 lb
  • Standard: ASME B30
More Information
SKU RX-MHP58
Manufacturer Rock Exotica
Manufacturer Model MHP58
Model None
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Documents
