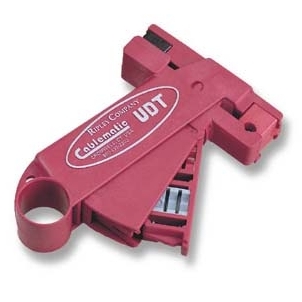

Ripley Cablematic Universal Coax Cable Strip Tool
The Universal Drop Trimmer from Ripley has a unique one step prep that exposes the center conductor and removes the jacket from all 59, 6, 11 drop cable constructions as per SCTE and Bellcore specifications. The UDT59611-250 is specifically designed to expose the center conductor by 5/16" (7.93 mm) and remove the proper length of jacket at 1/4" (6.35 mm).
Features:
- Inter-Changeble blade cassettes available
- Blade cassettes color-coded and marked with cable series type and braid preparation dimensions for easy identification
- Unique cassette storage compartment holds two extra cassettes
- High impact, Hi-Visibility Red, polymer construction
- Compact size fits in one hand
- No adjustments or extra tools required
Specifications:
- Prepares Cables: 1/4 inch (6.35mm) for 59/6, 11, 11Q, N48
- Length: 5.5 in.
- Weight: 4.5 oz.
- Made in the U.S.A.
- Series 59, 6 and 7 cassettes are to be used in tool cavity Side (A) only, Series 11 and 11Q in the opposite cavity only
Tool is not intended for Plenum Series Cable Construction
