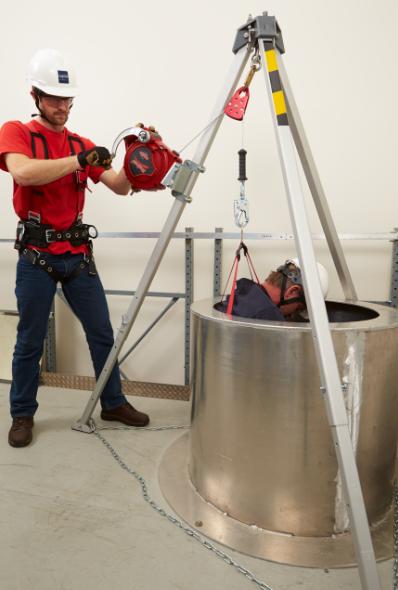

When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. Lightweight, portable Protecta® aluminum tripods are ideal for confined space manhole entry and retrieval. They’re easily transported from one location to another and can be set-up by one worker. Attach one or two mechanical devices such as a winch or 3-way self retracting lifeline and you’re ready to go. Our tripods are loaded with features such as locking legs, simple detent pin style adjustment, quick-mount mechanical device bracket, safety chain to prevent movement and skid resistant tread plate soles on feet.

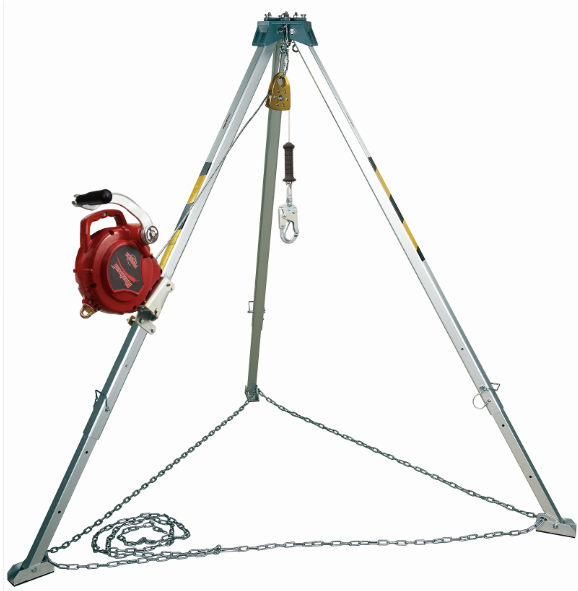

• Complete confined space system - see individual components for more details
• 8 ft. (2.4 m) PRO™ aluminum tripod (model AK105A)
• Telescoping adjustable locking legs
• Rebel™ 3-way self retracting lifeline with retrieval winch (model 3591000)
• 50 ft. (15.2m) 3/16" (5mm) stainless steel cable lifeline
• Pulley for confined space entry (model AK020A1)
• Routes winch lifeline
• Mounting bracket attaches SRL to tripod (model 3590498)
• Durable and compact design

Features:

• Complete confined space system - see individual components for more details - We've put everything you'll need in a convenient package, taking the guesswork out of confined space entry.
• 8 ft. (2.4 m) PRO™ aluminum tripod (model AK105A) - Lightweight and durable aluminum construction is easy to transport, set-up and use and will stand up to the elements for extended longevity.
• Telescoping adjustable locking legs - Simple detent pin adjustment in 3 in. (7.6 cm) increments offers quick and easy set-up allowing you to custom fit your work space.
• Rebel™ 3-way self retracting lifeline with retrieval winch (model 3591000) - Easily attaches to PRO™ tripod with mounting brackets included and offers a mechanical lifting advantage for materials or personnel in confined space scenarios.
• 50 ft. (15.2m) 3/16" (5mm) stainless steel cable lifeline - Abrasion resistant and extremely durable lifeline construction provides added field longevity.
• Pulley for confined space entry (model AK020A1) - Easily attaches to tripod eyebolt and provides a means to route winch lifeline.
• Routes winch lifeline - Offers non-abrasive smooth operation and positions lifeline over the confined space entrance for efficient retrieval of victim.
• Mounting bracket attaches SRL to tripod (model 3590498) - Attaches 3591000 3-way SRL to tripod providing a secure and safe anchorage point, one bracket connects to SRL, the other attaches to the tripod leg.
• Durable and compact design - Extremely easy to install and stays out of the workers way during emergency rescue situations for added safety.

Specifications:

• Capacity: 310 lbs. (140 kg)
• Brand: PROTECTA®
• Sub Brand: PRO™
• Install Type: Portable
• Lifeline Type: Stainless Steel Cable
• iSafe Equipped: No
• Lifeline: 3/16" (5mm) dia. 7x19 Galvanized Aircraft Wire Rope
• Winch/SRL Housing: Cast Aluminum, Powder Coated
• Model: 8308006
• Physical Weight: 74.20 kg (163.6lbs)
• Product Styles: Complete System
• Product Types: Tripods and Systems
• Standards: ANSI Z117.1-1995, OSHA 1910.66, OSHA 1910.146, OSHA 1926.502, Capital Safety Gen. Mfg. Req.
