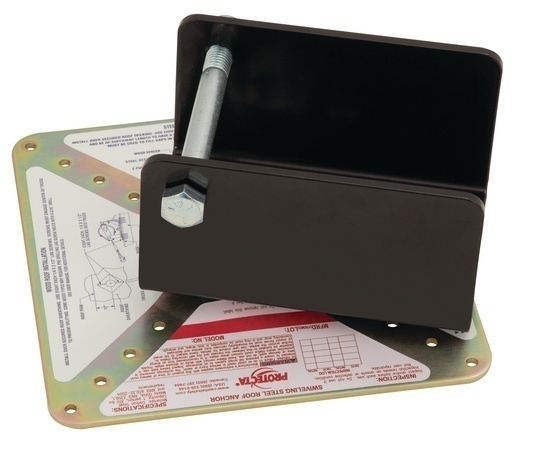

Protecta 2190011 PRO Reusable Swiveling Roof Anchor

The Protecta 2190011 PRO Reusable Swiveling Roof Anchor works on flat or sloped wood and metal decking. It includes an SRL bracket and fasteners. The PRO anchor is built from top quality materials which offers high strength and durability to stand up to the toughest environments.

Features:

• Installs on sloped or flat wood and metal decking roofs
• Fast and easy screw installation - Fastener kit included

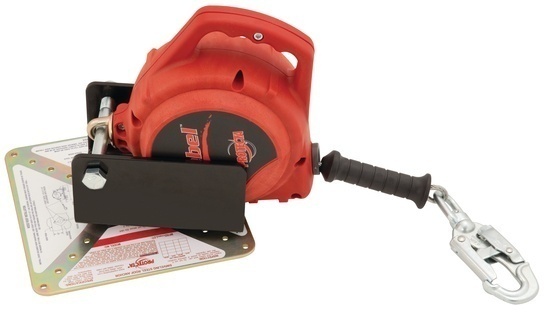

• Built-in universal swiveling self retracting lifeline bracket
• Durable and corrosion resistant construction
• Compact and lightweight design
• Portable and reusable offering higher versatility
• Allows for 360 degree rotation and unrestricted access on rooftops
• Meets the latest OSHA and ANSI standards

Specifications:

Material: Steel
Finish: Black E-coat paint, Zinc plating
Weight: 13 lbs (5.9kg)
Size: 10" x 10" x 3/16" (25.4cm x 25.4cm x .48cm)
Capacity: 420 lbs (190.5kg) (one person)

Wood Roof Frame Installation:

1. Position anchor on roof so eight of the lag screw holes are centered over a roof (framing) member
2. Install eight 1/4-14 x 2-1/2-inch or longer lag screws

Metal Roof Frame Installation:

1. Place wood spacers in troughs of decking material to allow anchor to sit level
2. Position anchor on roof so eight screw holes line up with center of the top flange of the Z-purlin
3. Install eight 1/4-14 x 2-1/2-inch self-drilling screws

Steel Decking Installation:

1. Place wood spacers in troughs of decking material to allow anchor to sit level
2. Position anchor on roof so eight screw holes line up with center of a decking rib
3. Install sixteen 1/4-14 x 2-1/2-inch self-drilling screws (8 in each direction)

Dismantling:

• Remove by unscrewing the lag screws.
