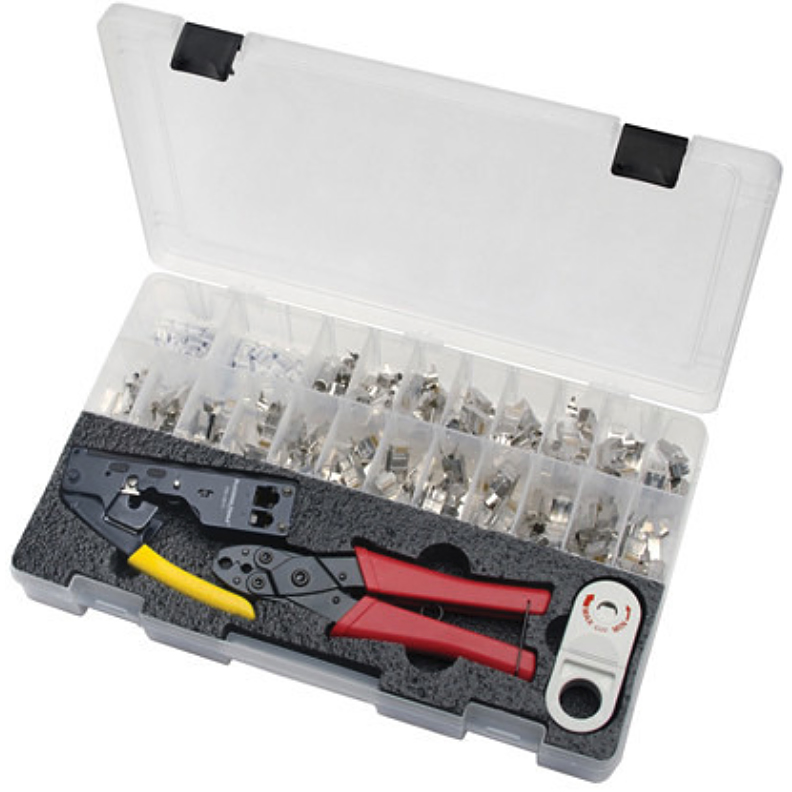

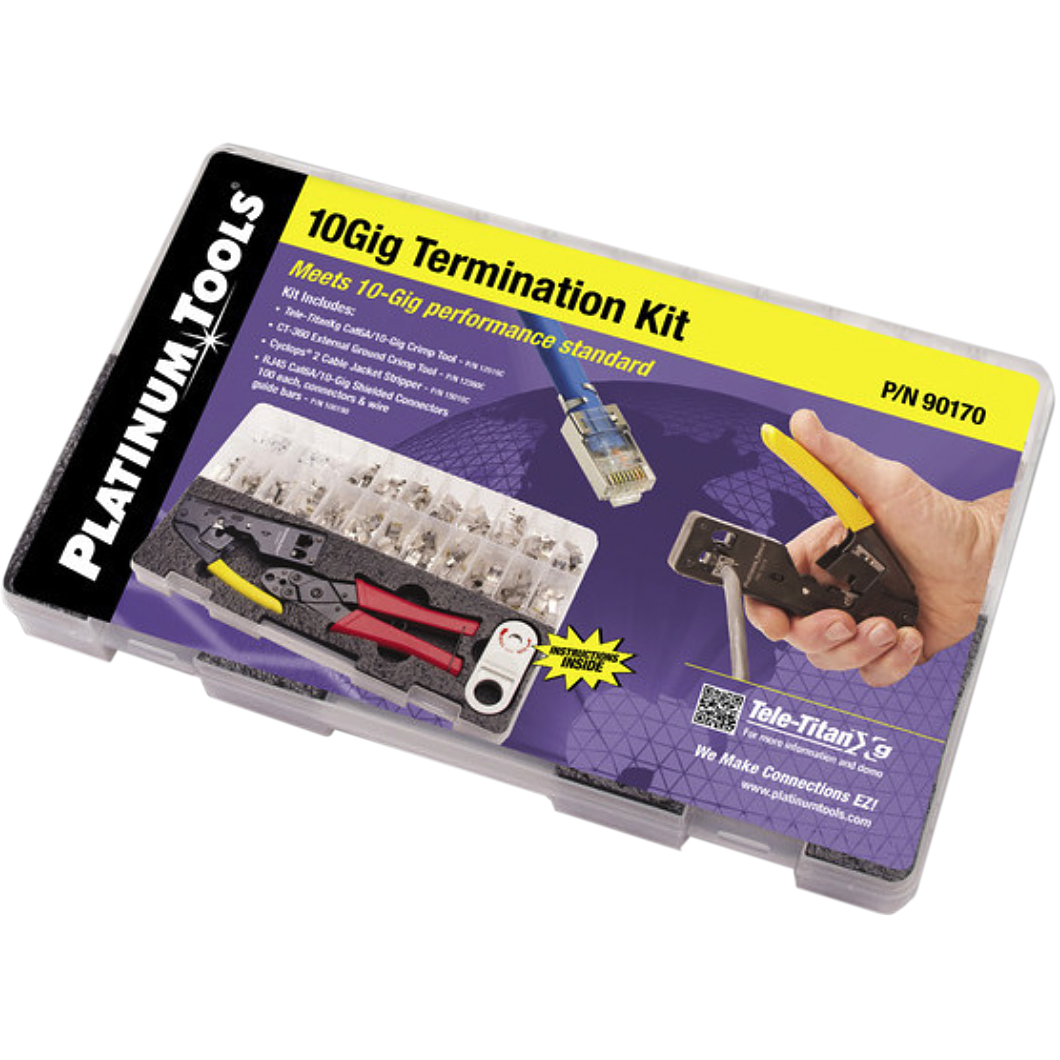

Platinum Tools 90170 10Gig Termination Kit

This system is the right solution for terminating larger cables like Cat6E, Cat6A, Cat7 and over-sized Cat5e/6 industrial Ethernet cables for data, audio and video applications. Streaming media demands robust,

dependable networks, including 10-Gig Cat6A shielded cable, to provide the necessary expanded bandwidth. However, these larger, shielded cables require the special connectors and tools found in this kit.

Features:

• Tools used for terminating Cat6E, Cat6A, Cat7 and larger industrial Ethernet cables
• Max cable OD: 8.5mm/0.335
• Includes Tele-TitanXg Crimp Tool & CT-360 External Ground Crimp Tool

Includes:

• Tele-TitanXg Cat6A/10Gig Crimp Tool, P/N 12515
  • Specifically made for terminating, P/N 106190 Cat6A/10Gig connectors
  • Straight action vertical crimp force
  • Minimal hand force for a perfect crimp
• RJ45 Cat6A/10Gig Shielded Connectors 100pcs, P/N 106190
  • Max cable OD: 8.5mm/0.335
  • Max conductor OD: 1.35mm/0.053
  • UL and RoHS compliant
• Cyclops 2 Cable Jacket Stripper
  • Self-adjusts to automatically score PVC, Plenum and others without damaging braids, foil or conductors
  • Ready-to-use out of the kit without having to make adjustments
  • Works with shielded/unshielded twisted pair single & multi-core and fiber optic cables
  • Accepts cable ODs 0.10" to 0.43" (2.5mm - 11mm)
• CT-360 External Ground Crimp Tool
  • 360° crimp on the external ground tab of shielded RJ45 connectors
  • Perform concentric termination with full control to prevent over or under crimping - Dual cavity covers wide range of cable ODs ranging from 0.245" to 0.335" (6.2mm - 8.5mm)
  • Spring-loaded, non-ratcheted design
  • All steel frame, rust-resistant black oxide finish, molded plastic handles
