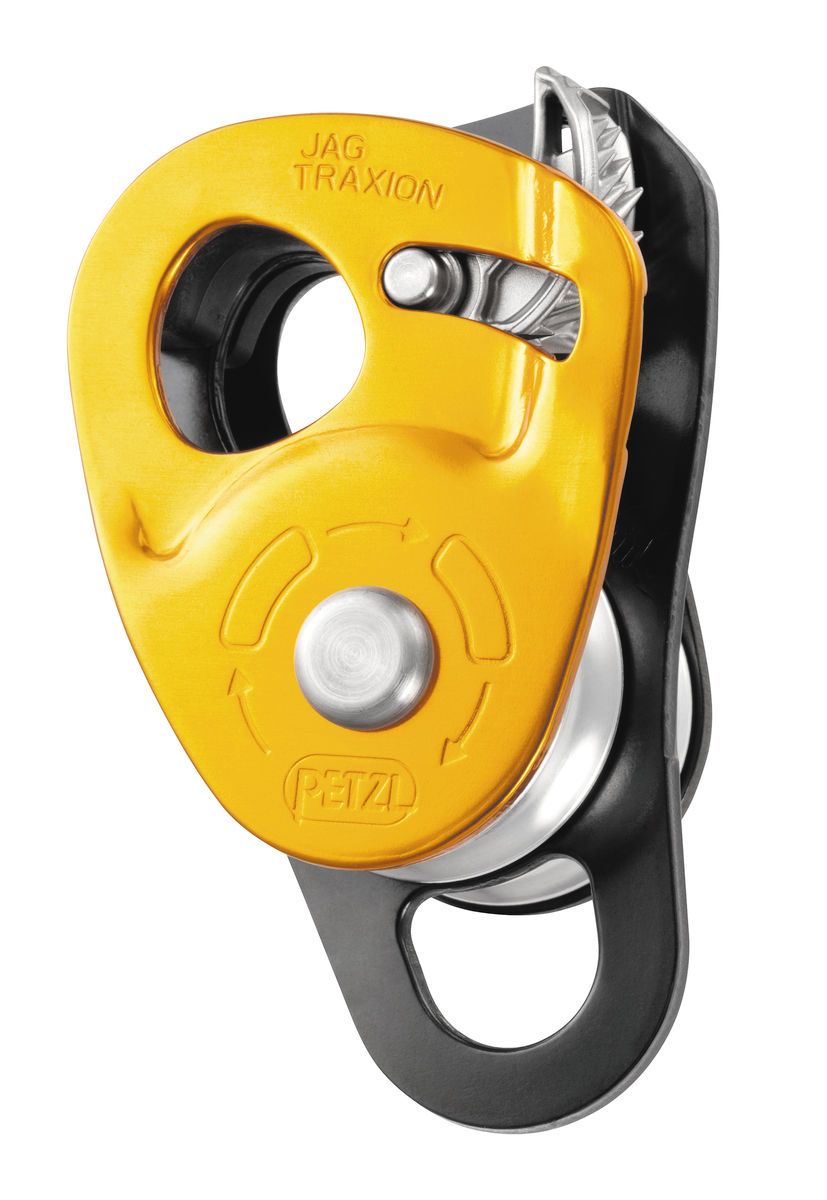

Petzl P54 Jag Traxion High Efficiency Double Progress Capture Pulley

Part Number: P54

Availability: In stock

Quick Overview

Petzl's Jag Traxion pulley is made from aluminum.

Petzl P54 Jag Traxion High Efficiency Double Progress Capture Pulley

Part Number: P54

Availability: In stock

Quick Overview

Petzl's Jag Traxion pulley is made from aluminum.
FREE SHIPPING!
$134.95

Petzl P54 Jag Traxion High Efficiency Double Progress Capture Pulley

The Petzl Jag Traxion pulley is designed for use with the Jag double pulley to make a 4:1 haul system. The toothed cam features a self-ceaning slot for optimal performance in any condition. The sheave is mounted on the ball bearings for increased efficiency.


Specifications:
  • Weight: 145 g
  • Certification(s): CE EN 567, NFPA 1983 Technical Use
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Working load: 2 × 1,5 kN × 2 = 6 kN
  • Breaking strength: 2 × 4 kN × 2 = 16 kN
  • Efficiency: 91 %
Tell us what you think about this item!

Product Description

Petzl P54 Jag Traxion High Efficiency Double Progress Capture Pulley

The Petzl Jag Traxion pulley is designed for use with the Jag double pulley to make a 4:1 haul system. The toothed cam features a self-ceaning slot for optimal performance in any condition. The sheave is mounted on the ball bearings for increased efficiency.


Specifications:
  • Weight: 145 g
  • Certification(s): CE EN 567, NFPA 1983 Technical Use
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Working load: 2 × 1,5 kN × 2 = 6 kN
  • Breaking strength: 2 × 4 kN × 2 = 16 kN
  • Efficiency: 91 %
