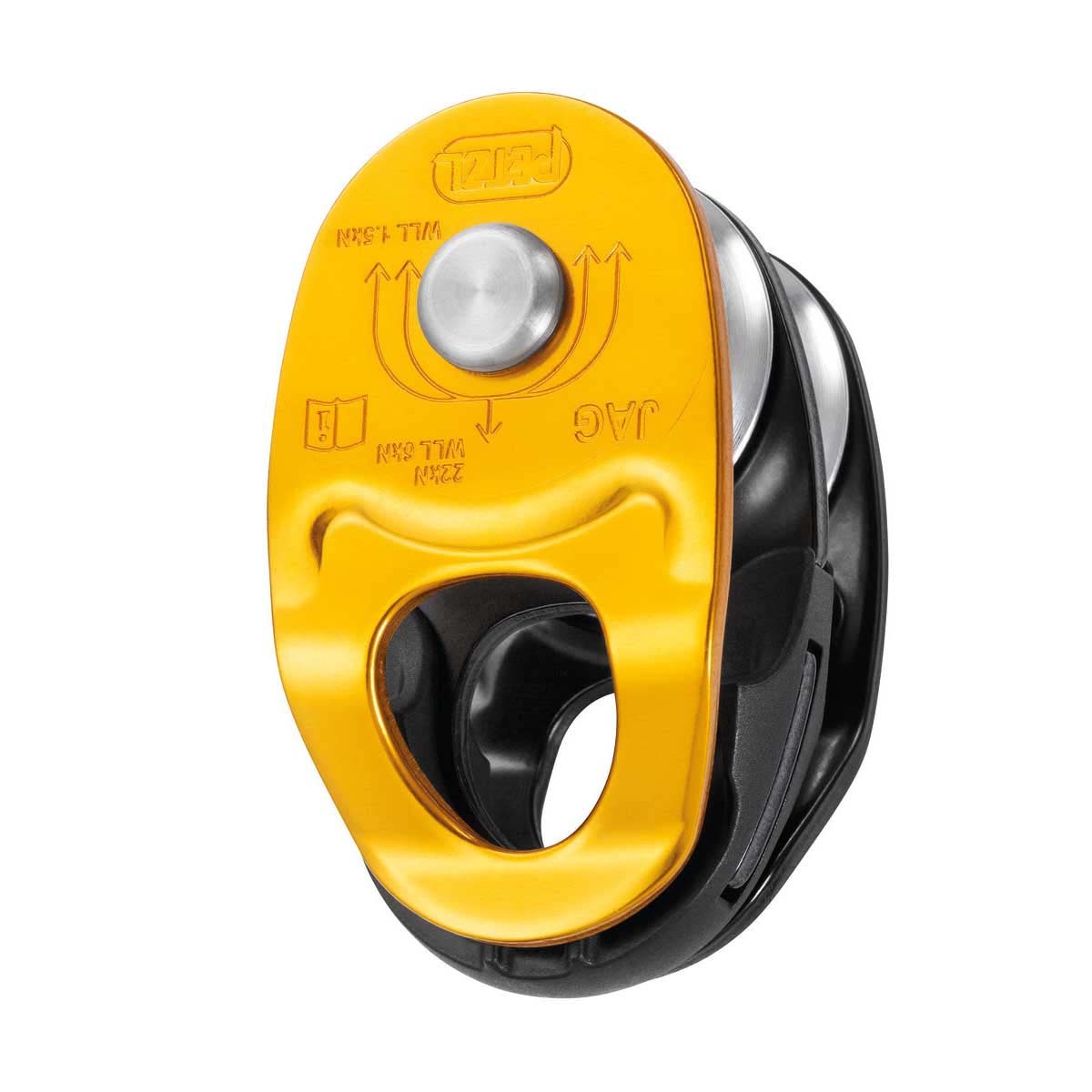

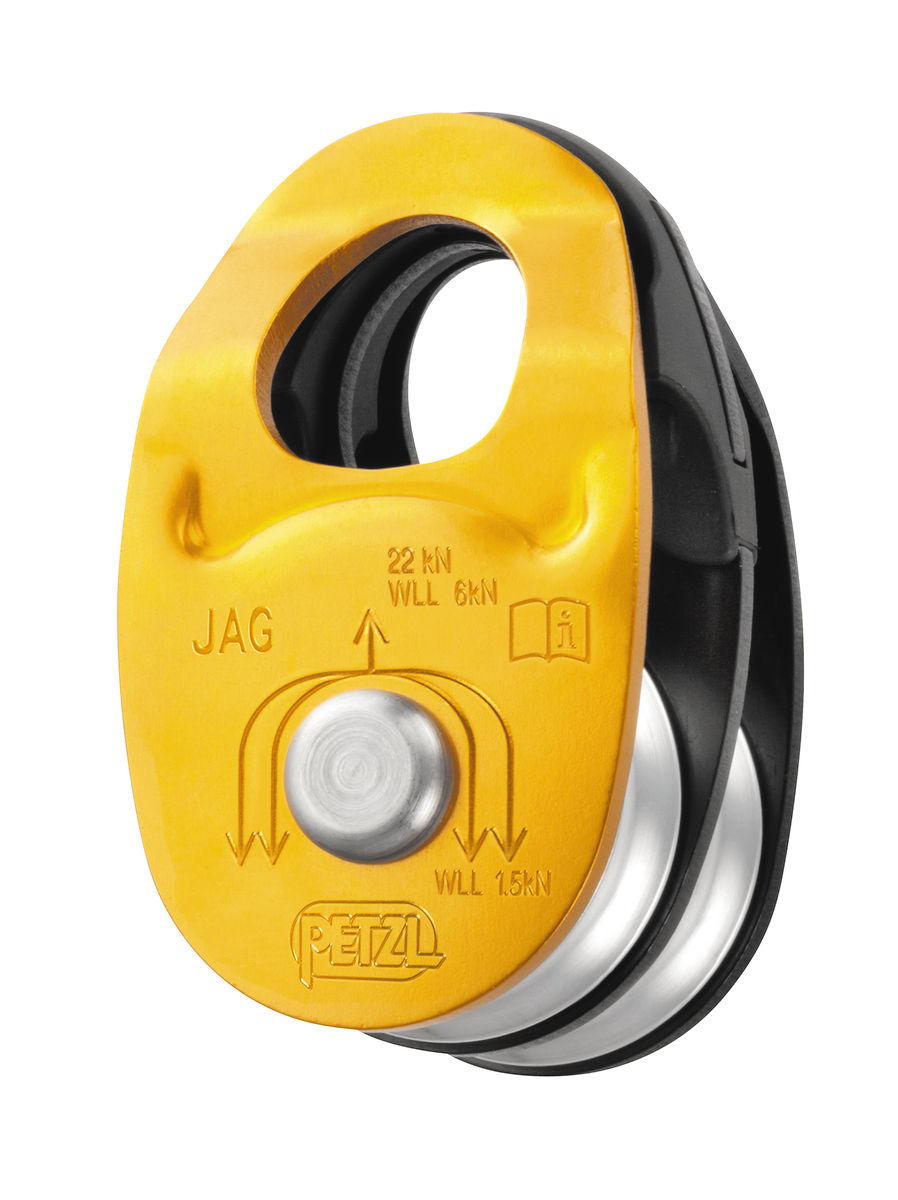

Petzl P45 Jag High Efficiency Double Pulley

Part Number: P45

Availability: In stock

Quick Overview

Petzl's Jag double pulley can be used with the Jag Traxion pulley to make a haul system.

Petzl P45 Jag High Efficiency Double Pulley

Part Number: P45

Availability: In stock

Quick Overview

Petzl's Jag double pulley can be used with the Jag Traxion pulley to make a haul system.
FREE SHIPPING!
$89.95

Petzl P45 Jag High Efficiency Double Pulley

The Petzl Jag double pulley is designed for use with the Jag Traxion double progress capture pulley to make a 4:1 haul system. The sheaves are mounted on the ball bearings for increased efficiency. This pulley will hold rope between 8 and 11mm.


Specifications:
  • Weight: 120 g
  • Certification(s): CE EN 12278, NFPA 1983 Technical Use
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Working load: 2 × 1,5 kN × 2 = 6 kN
  • Breaking strength: 2 × 4 kN × 2 = 16 kN
  • Efficiency: 91 %
Tell us what you think about this item!

Product Description

Petzl P45 Jag High Efficiency Double Pulley

The Petzl Jag double pulley is designed for use with the Jag Traxion double progress capture pulley to make a 4:1 haul system. The sheaves are mounted on the ball bearings for increased efficiency. This pulley will hold rope between 8 and 11mm.


Specifications:
  • Weight: 120 g
  • Certification(s): CE EN 12278, NFPA 1983 Technical Use
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Working load: 2 × 1,5 kN × 2 = 6 kN
  • Breaking strength: 2 × 4 kN × 2 = 16 kN
  • Efficiency: 91 %
