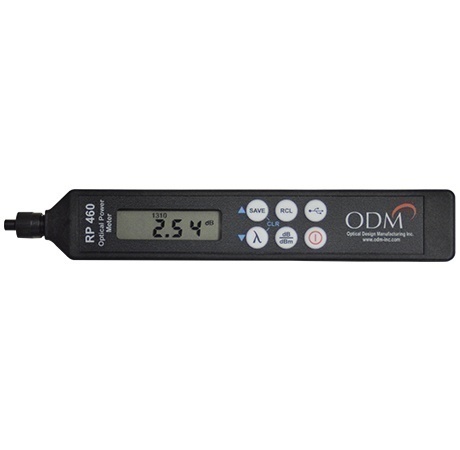

ODM RP 460 Optical Power Meter
ODM's Optical Power Meter measures optical power on fiber optic networks operating at 850nm, 1310nm, 1490nm, and 1550nm. This power meter provides absolute dBm or dB loss measurements on all optical networks. The RP 460 is available with different detector types based on the necessary measurement range for the optical network under test.
Features:
- 850, 1310, 1490, 1550, 1611, 1625 nm wavelengths
- Set reference/zero functionality
- Store up to 4000 measurements
- Transfer readings from device to computer via USB
- Audible tone alert from incoming 2kHz signal
- Accepts all connector styles
- NIST traceable measurements
- Single Mode or Multi Mode application
Specifications:
- Wavelength Range: 850nm to 1625nm
- Measurement Range: -02: +6 to -70dBm / -04: +23 to -45dBm
- Resolution: 0.01dB
- Absolute Accuracy: +/- 0.25dB
- Detector Type: -02: InGaAs / -04: Filtered InGaAs
- Optical Interface: Universal 2.5mm (Additional Adapters Available)
- Tone Identification: 2kHz Incoming Signal - Audible Alert
- Storage: 4000+ measurements
- Power On: Push Button Toggle, Auto-off
- Data Transfer: Mini USB - Live readings or data dump
- Dimensions: 6.1x.94x.75 in. (15.5x2.38x1.90cm)
- Weight: 3.0 oz (85.4 g)
Available Options:
- +6 to -70dBm (RP 460-02)
- +23 to -45dBm (RP 460-04)
