ODM OTDR 800

Name: ODM OTDR 800
SKU: OD-OTDR800
Price: 3831.7 USD
Availability: OutOfStock

$3,831.70

THIS ITEM SHIPS FOR FREE!

Ships in: 1+ month

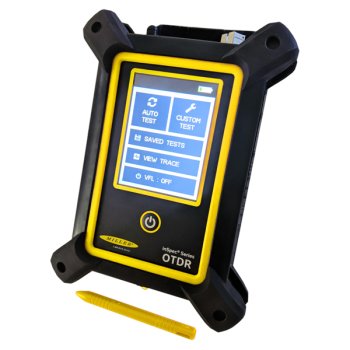

ODM Optical time Domain Reflectometer OTDR 800

Features:

Detailed screen views provide visual trace and PASS/FAIL analysis
LCD Touchscreen with compact stylus
Ergonomic compact case
Bi-Directional averaging performs necessary calculations automatically
Simplified user interface with Auto-test
1 Meter dead zone delivers accurate reflective event testing
Bluetooth compatible with Android phones and tablets
Optimized APC launch port minimizes reflections

Specifications:

Wavelengths	1310nm / 1550 nm	Linearity	± 0.05 dB/dB
Dynamic Range	33/33dB SM	Memory Capacity	~40,000 traces
VWL Wavelength	650nm +- 5nm	Memory Type	Internal
Pulse Width	5 - 20,000ns	Power Supply/Charger	USB Charger 5V@1A
Units of Measurements	km, kf, mi	Battery Life	Li-ion - 6 Hours
Event Dead Zone	1m	Storage Temperature	-4 to 140 F (-20 to 60C)
Attenuation Dead Zone	4m	Operating Temperature	14 to 122 F (-10 to 50C)
Resolution	0.125m - 32m	Dimensions (Without Boot)	6.25” x 4.125” x 1.875”(159mm x 105mm x 48mm)
Distance Uncertainty	± 0.75 + 0.005% x distance + sampling resolution	Weight	1.5 lbs
Distance Range	0.5km-260km SM	Communication Ports	Micro USB and Bluetooth®
Real-Time Refresh Rate	2 Hz	Output Connectors	Interchangeable FC, SC (both included)
Group Index of Refraction (GIR)	1.024 - 2.048

The OTDR 800 provides test technicians and contractors with an all-in-one solution for testing optical reflection and loss in fiber. One of the smallest and lightest OTDR's on the market weighing in at under 1.5 pounds. Featuring an adjustable, right or left-handed strap and protective rubberized boot that makes testing easy in any location. Easily select wide varieties of wavelength configurations and view test results in an event table with simple PASS/FAIL analysis for each reflective event. Individual events can be inspected manually using the event selection feature or automatically with the device's built-in PASS/FAIL function. After testing, easily transfer trace files to an Android smartphone or tablet with Bluetooth, or to a windows computer through a USB connection and the free ODM brand OpTrace software.
