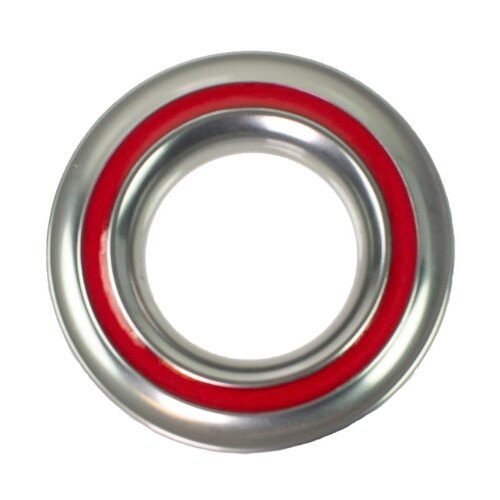

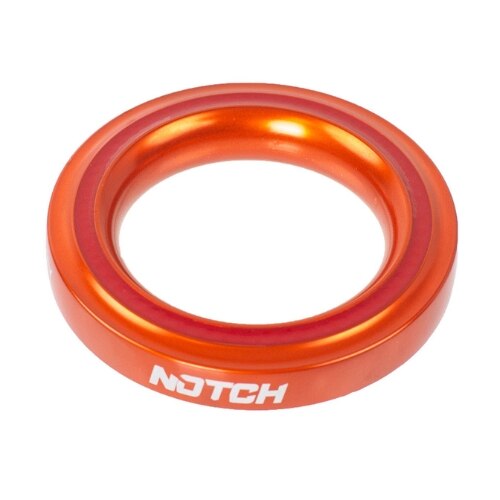

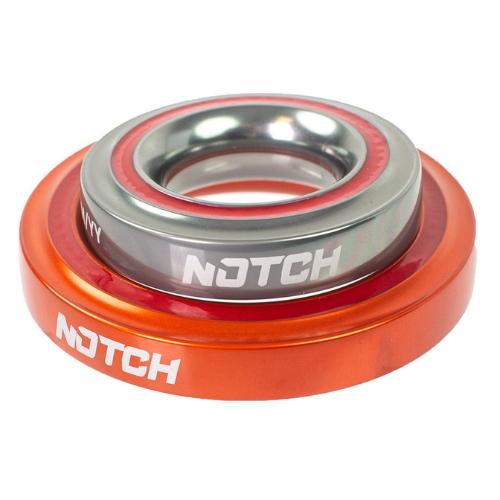

The Aluminum Wear Safe™ Friction Rings have the industry's first wear indicator mark for increased safety and ease of inspection. Available in two sizes.

FEATURES & BENEFITS:

• Purpose driven 33% larger bend radius
• Industry first wear indicator mark for increased safety and ease of inspection
• Hot forged 7075 aluminum construction
• Compatible with rope style bridges
• 30kN MBS

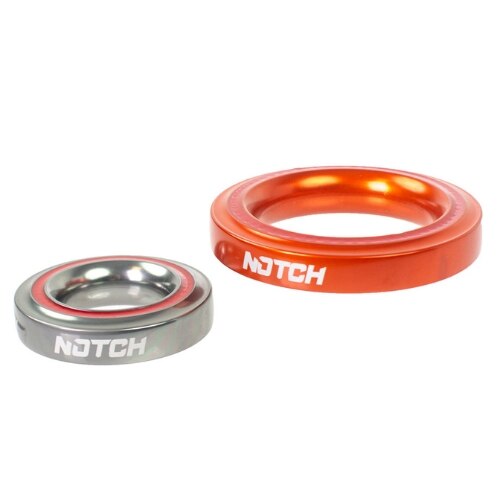

• Available in two sizes
• Individually serialized

SPECS:

Small Ring ( 28 x 54 mm)

• MBS: 30kN
• INSIDE DIAMETER: 28mm
• OUTSIDE DIAMETER: 54mm
• WEIGHT: 1.9oz (53g)
• COMPOSITION: Aluminum
• FINISH: Anodized

Large Ring ( 48 x 74 mm)

• MBS:30kN
• INSIDE DIAMETER: 48mm
• OUTSIDE DIAMETER: 72mm
• WEIGHT: 2.8oz (79g)
• COMPOSITION: Aluminum
• FINISH: Anodized
