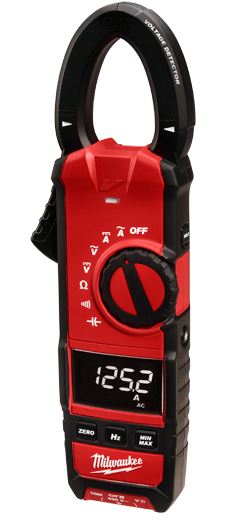

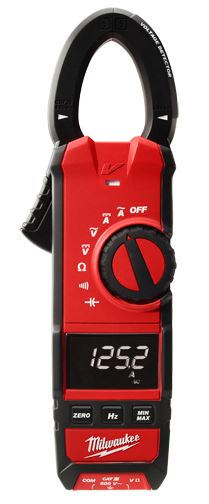

Milwaukee 2237-20 Clamp Meter

Part Number: 2237-20

Availability: In stock

Quick Overview

Milwaukee 2237-20 Clamp Meter

Milwaukee 2237-20 Clamp Meter

Part Number: 2237-20

Availability: In stock

Quick Overview

Milwaukee 2237-20 Clamp Meter
FREE SHIPPING!
$229.00

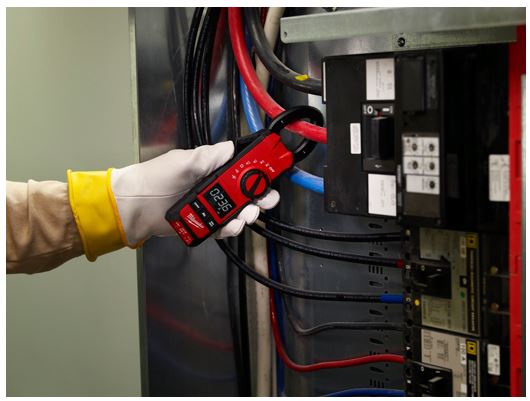

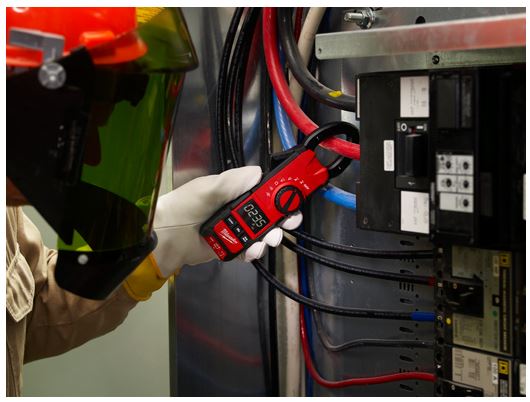

The Milwaukee 2237-20 Clamp Meter measures up to 600 amps AC and features a large, 1.3-inch jaw opening. This meter is ideal for professional residential and commercial electric, industrial, and service work, including testing electrical-panel and motor currents.

FEATURES

  • Measures up to 600 amps AC/DC, Large 1.30” jaw opening
  • Thin Jaw Profile for easier wire measurement in panels or in bundles
  • Wide Voltage range to 600 AC/DC volts
  • True-RMS for accurate measurement in all applications
  • Built-In Voltage Detector and LED Work Light
  • Frequency Measurement
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip
  • CAT III 600V for increased safety



SPECIFICATIONS

  • TRMS: Yes
  • JAw Size: 1.3"
  • Safety Rating: CAT III 600V
  • Current AC: 600A
  • Current AC/DC: 600A
  • Voltage AC/DC: 600V
  • Frequency: Yes
  • Resistance: 6 kΩ
  • Continuity: Yes
  • Capacitance: Yes
  • Hold: Yes
  • Display Backlight: Yes
  • Display Type: High Contrast White on Black
  • Non-Contact Voltage: Yes
  • LED Work Light: Yes
  • Rugged Over-molding: Yes
  • Tool Warranty: 5 Years
  • Indication: Visual (for NCVD)
  • Switch Type: Dial
  • Battery Type: Alkaline (AA)
  • Length: 9 1/2"
Tell us what you think about this item!

Product Description

The Milwaukee 2237-20 Clamp Meter measures up to 600 amps AC and features a large, 1.3-inch jaw opening. This meter is ideal for professional residential and commercial electric, industrial, and service work, including testing electrical-panel and motor currents.

FEATURES

  • Measures up to 600 amps AC/DC, Large 1.30” jaw opening
  • Thin Jaw Profile for easier wire measurement in panels or in bundles
  • Wide Voltage range to 600 AC/DC volts
  • True-RMS for accurate measurement in all applications
  • Built-In Voltage Detector and LED Work Light
  • Frequency Measurement
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip
  • CAT III 600V for increased safety



SPECIFICATIONS

  • TRMS: Yes
  • JAw Size: 1.3"
  • Safety Rating: CAT III 600V
  • Current AC: 600A
  • Current AC/DC: 600A
  • Voltage AC/DC: 600V
  • Frequency: Yes
  • Resistance: 6 kΩ
  • Continuity: Yes
  • Capacitance: Yes
  • Hold: Yes
  • Display Backlight: Yes
  • Display Type: High Contrast White on Black
  • Non-Contact Voltage: Yes
  • LED Work Light: Yes
  • Rugged Over-molding: Yes
  • Tool Warranty: 5 Years
  • Indication: Visual (for NCVD)
  • Switch Type: Dial
  • Battery Type: Alkaline (AA)
  • Length: 9 1/2"
