Milwaukee 2217-20 Digital Multimeter

Part Number: 2217-20

Availability: In stock

Quick Overview

Milwaukee 2217-20 Digital Multimeter

Milwaukee 2217-20 Digital Multimeter

Part Number: 2217-20

Availability: In stock

Quick Overview

Milwaukee 2217-20 Digital Multimeter
FREE SHIPPING OVER $199!
$159.00

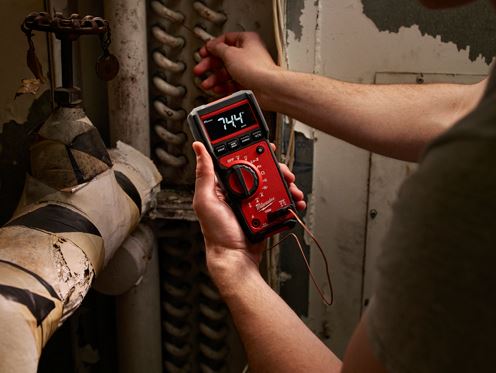

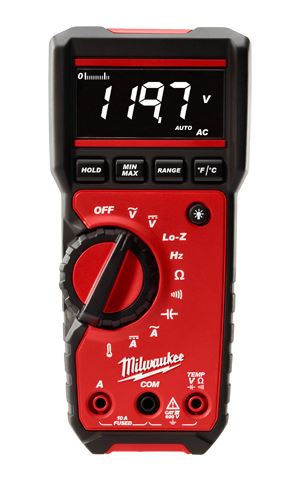

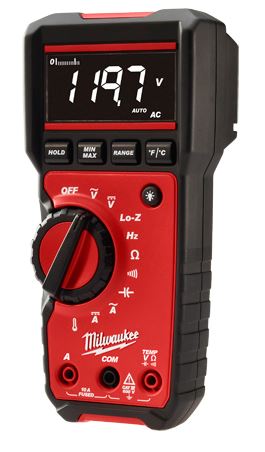

The Milwaukee 2217-20 Digital Multimeter is a heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect digital tool for the professional electrician, the 2217-20 offers rugged over-molding for increased durability and grip, a large white on black display for clearer readings, a slide rail system to add proprietary accessories and over-molded dial for easy one handed use. In addition, the new model meets the safety specifications required by the electrical user. Covered by Milwaukee 5-Year Warranty.




FEATURES

  • Wide Voltage range to 600 volts AC/DC
  • Auto Range to millivolts
  • True-RMS for accurate measurement in all applications
  • Lo-Z measurement to eliminate ghost voltage
  • Frequency measurements from 10Hz to 50kHz
  • Contact temperature measurement from -40 to 752°F
  • Current Measurement to 10 amps AC/DC
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip



SPECIFICATIONS

  • TRMS: Yes
  • Safety Category Rating: CAT III 600V
  • Voltage AC: 6.00mV - 600V
  • Voltage DC: 600.0mV - 600V
  • Lo-Z: Yes
  • Frequency: 10 Hz - 50.00 kHz
  • Resistance: 40MΩ
  • Continuity: Audible
  • Capacitance: 1,000μF
  • Current AC/DC: 10.00A
  • Contact Temperature: -40° F to 752° F (-40° C to 400° C)
  • Backlight: Yes
  • Display Type: White on Black LCD
  • HOLD/MIN/MAX: Yes
  • Bargraph: Yes
  • Rugged Overmolding: Yes
  • Accessory Attachment: Magnetic Meter Holder
  • Tool Warranty: 5 Years
  • Battery Type: Alkaline (AA)
  • Calibration Needed: Yes - Recommend calibration service once every year
  • Swith Type: Dial
  • Length: 6-1/2"
Tell us what you think about this item!

Product Description



The Milwaukee 2217-20 Digital Multimeter is a heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect digital tool for the professional electrician, the 2217-20 offers rugged over-molding for increased durability and grip, a large white on black display for clearer readings, a slide rail system to add proprietary accessories and over-molded dial for easy one handed use. In addition, the new model meets the safety specifications required by the electrical user. Covered by Milwaukee 5-Year Warranty.




FEATURES

  • Wide Voltage range to 600 volts AC/DC
  • Auto Range to millivolts
  • True-RMS for accurate measurement in all applications
  • Lo-Z measurement to eliminate ghost voltage
  • Frequency measurements from 10Hz to 50kHz
  • Contact temperature measurement from -40 to 752°F
  • Current Measurement to 10 amps AC/DC
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip



SPECIFICATIONS

  • TRMS: Yes
  • Safety Category Rating: CAT III 600V
  • Voltage AC: 6.00mV - 600V
  • Voltage DC: 600.0mV - 600V
  • Lo-Z: Yes
  • Frequency: 10 Hz - 50.00 kHz
  • Resistance: 40MΩ
  • Continuity: Audible
  • Capacitance: 1,000μF
  • Current AC/DC: 10.00A
  • Contact Temperature: -40° F to 752° F (-40° C to 400° C)
  • Backlight: Yes
  • Display Type: White on Black LCD
  • HOLD/MIN/MAX: Yes
  • Bargraph: Yes
  • Rugged Overmolding: Yes
  • Accessory Attachment: Magnetic Meter Holder
  • Tool Warranty: 5 Years
  • Battery Type: Alkaline (AA)
  • Calibration Needed: Yes - Recommend calibration service once every year
  • Swith Type: Dial
  • Length: 6-1/2"
