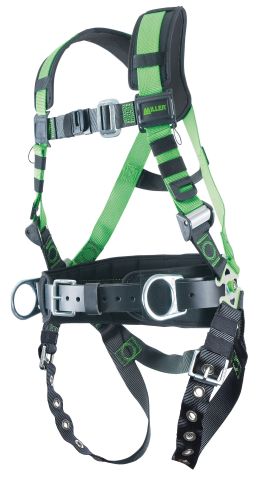

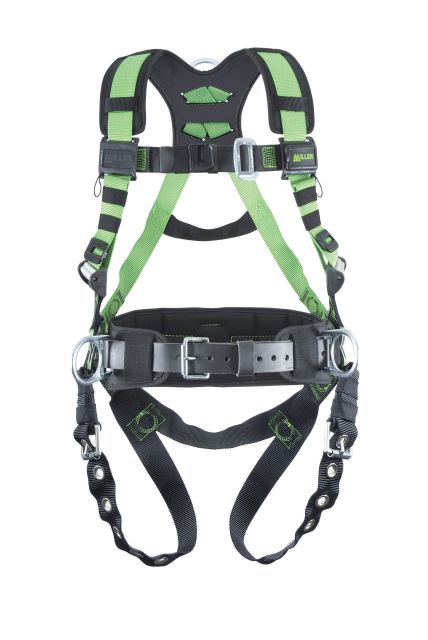

Miller R10CN-TB-BDP/UGN Revolution Construction Harness
The Miller R10CN-TB-BDP/UGN Revolution Construction Harness was engineered to meet the demands and needs of working at heights on a construction site. This full-body construction harness uses the same great features as the original Revolution but with heavier duty webbing that is almost twice as strong than the standards require. When you are working hard on at a construction site, this construction harness works just as hard.
Features:
- Type 10 webbing - Almost twice as strong as the standards require, and is certain to provide the longest service life possible
- New back/shoulder padding allows optimum air flow, while providing all-day comfort, even in the shoulders when carrying a full load of tools
- Web Finials - Clip-on design safely organizes webbing after proper adjustment
- PivotLink Connection - Unique rotary design provides greater comfort in bending/mobility
- Cam Buckles - Easy, one-hand adjustment/release allows simultaneous adjustment of shoulder straps
- Self-Contained Label Pack - Integrated pack encapsulates labels minimizing damage and loss
- Integrated Accessory System - Modular attachment design provides connection points for canvas bags/belts/tools/accessories
- Tongue buckle leg straps, removable belt, side d-rings, and padding
Materials:
- Techweb: Polyester
- Webbing: Type 10
- Elastic Keepers: Polyester, Nylon, Lycra Thread (Stitching): Polyester
- D-ring: Clear Chromate Finished Carbon Steel
- Buckles: Clear Chromate Finished Carbon Steel
- Grommets: Brass
- Labels: Valeron
- Cam Buckle: Glass-filled Nylon, Aluminum, Stainless Steel
- Pivotlink: Clear Chromate Finished Carbon Steel, Stainless Steel
- Back, Belt, Shoulder Pads: Nylon, Polyester, Urethane
- Label Pack: Evoprene, Nylon
Specifications:
- Max. Working Load - 400lbs (181.4kg)
- Webbing Min.Tensile - 7000lbs (31kN)
- D-ring Min. Tensile - 5000lbs (22kN)
- Buckle Min. Tensile - 4000lbs (18kN)
