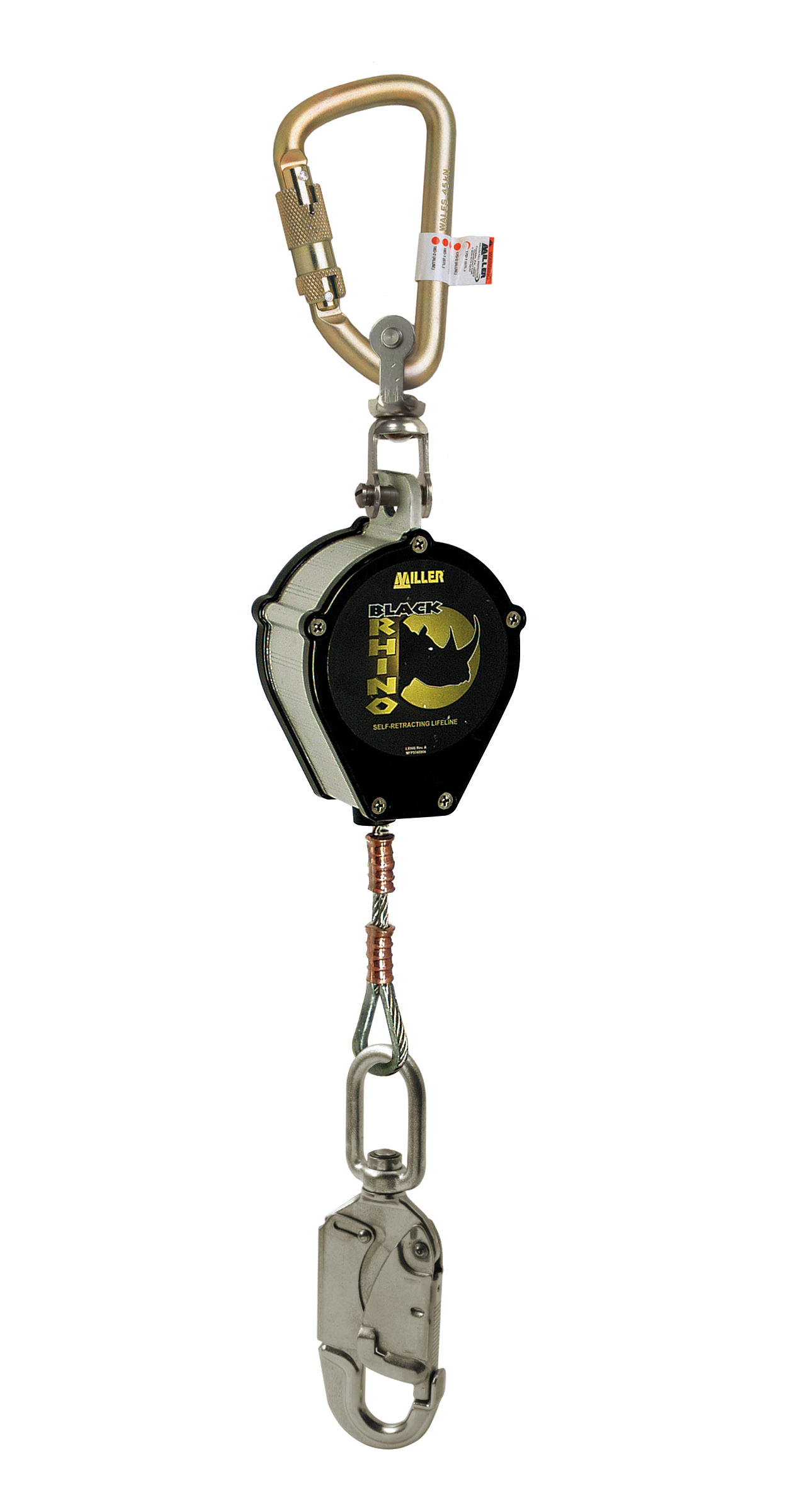

Miller Black Rhino Cable SRL
The Black Rhino SRL’s are designed with stainless steel wire rope to endure the daily rigors of harsh environments. Ideal for concrete construction, welding, steel erection, food processing and warehouse applications.
- No annual factory recertification required – lowering cost of ownership
- Quick-activating, high-strength stainless steel braking system – arrests free falls, providing a quick, safe rescue
- Variety of integral anchorage connectors available – provides ultimate flexibility of use in a variety of applications
- Integral load indicator – indicates when the unit must be removed from service and returned for repair
- Extended service life – corrosion-resistant stainless steel and aluminum components
- Integral internal shock absorber – consistently reduces fall forces
- Rated to 310 lbs. (140.6 kg) capacity
Specifications:
- Stainless steel swivel and twist-lock carabiner.
- Locking swivel snap hook with load indicator.
- Meets OSHA 1926.502, 1910.66, ANSI A10.32, *ANSI Z359.14-2012 Class A and B, and CSA Z259.2.2 Type 1 requirements.
- ANSI Z359 and CSA Z259.12-11 compliant for connectors that meet the 3,600lb gate requirements.
Materials:
- Cover: Impact-resistant thermoplastic over aluminum
- Housing: Aluminum
- Hub: Aluminum Braking
- Mechanism: Stainless Steel
- Lifeline: 3/16” Stainless Steel Wire Rope
- Snap Hook: Zinc-plated, locking rebar hook with 2 1/2-inch opening
Technical:
- Max. Capacity: 310 lbs. (141kg)
- Working Length Capacity: 9 ft. (2.7m)
- Max. Arrest Distance 24-in. (610mm)
- Avg. Arresting Force: 900 lbs. (4kN) (When tested to ANSI Z359.14)
- Max. Peak Arresting Force: 1,800 lbs. (8kN) (When tested to ANSI Z359.14)
- Max. Peak Arresting Force: 900 lbs. (4kN) (When tested to OSHA 1926.502 and CSA Z259.2.2)
- Ultimate Strength: 3,000 lbs. (13kN)
- Lifeline Tension: 3 lbs. – 11 lbs. (13N – 49N)
