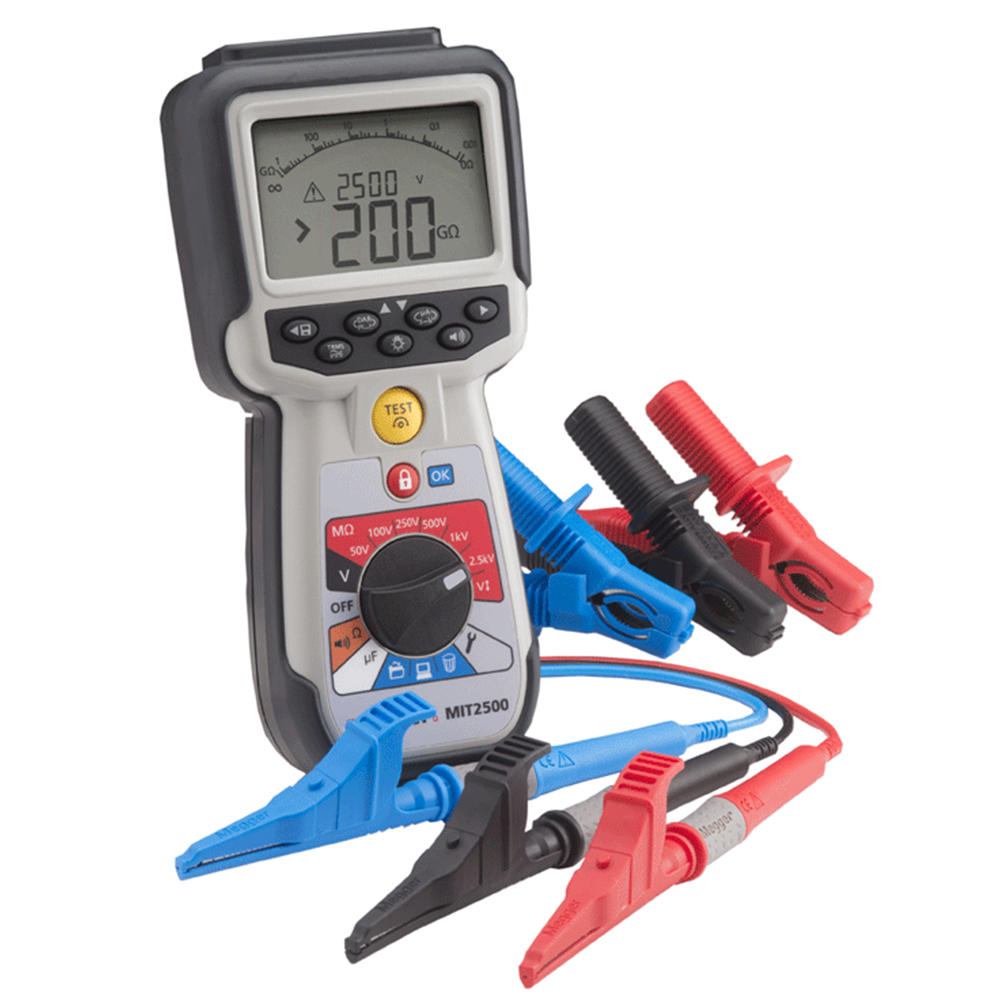

Megger MIT2500 High Voltage Hand-Held Insulation & Continuity Tester

The Megger MIT2500 High Voltage Hand-Held Insulation & Continuity Tester has been designed for motor and cable testing, specialist applications, and electrical testing applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.

The MIT2500 offers both fixed range voltages of 50 V, 100V, 250 V, 500 V, 1000 V and 2500 V, as well as a variable range that allows any voltage between 50 V and 2500 V to be “dialed in”. This is supported by the new test voltage feedback control, which maintains the output test voltage to within 2% of the selected range, even when under test.

Features:

• Insulation testing up to 2.5 kV  and 200 GΩ range in a hand held instrument
• Guard terminal for high resistance accuracy
• Adjustable insulation test voltage from 50 V to 2500 V
• Stabilized insulation test voltage
• Rechargeable options for mains and car charging
• Single range, faster continuity testing from 0.01 Ω to 1 MΩ
• Polarization Index (PI) & Dielectric Absorption Ratio (DAR)
• CAT IV 600 V applications
