Lug-All Cable Hoist with Rapid Lowering

The Lug-All Cable Hoist with Rapid Lowering is an industrial grade ratchet winch hoist. It features double or single line lift capabilities and rapid lowering which allows the hoist to lower 4 times faster than traditional models. This hoist is made in the USA using 7x19 aircraft cable and is designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. This cable hoist also includes a handle that is designed to bend at 125 to 150 percent of the rated capacity, protecting you and the equipment. This hoist comes in two capacity options and they are color coded for easy identification. The 1-1/2 ton version is red and the 2 ton version is blue.

Available Options:

• 1-1/2 Ton (330-R)
• 2 Ton (420-R)

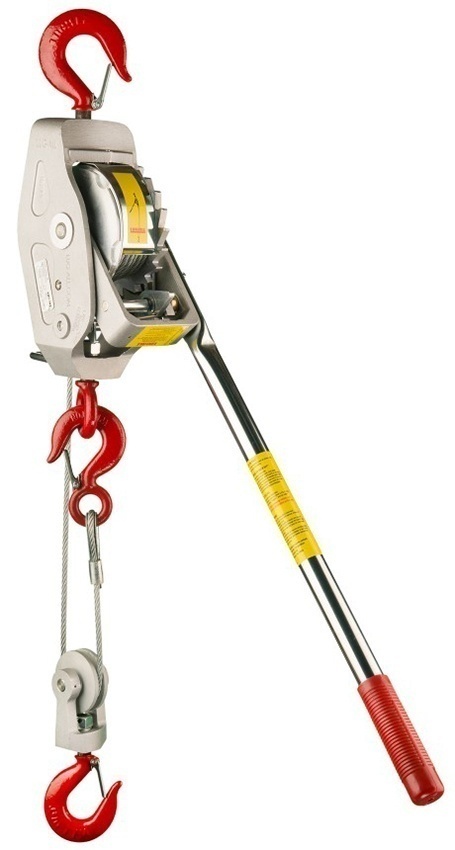

1-1/2 Ton Specifications:

• Capacity: 1-1/2 ton
• Weight: 13.75 lbs.
• Double Line Capacity: 3,000 lbs.
• Double Line Lift: 15 ft.
• Single Line Capacity: 1,500 lbs.
• Single Line Lift: 30 ft.
• Cable Diameter: 7/32 in.

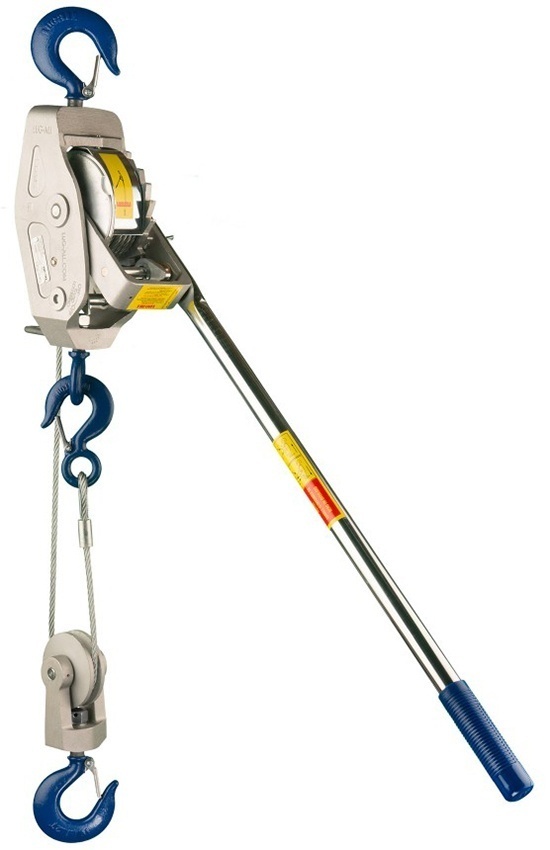

2 Ton Specifications:

• Capacity: 2 ton
• Weight: 15.5 lbs.
• Double Line Capacity: 4,000 lbs.
• Double Line Lift: 10 ft.
• Single Line Capacity: 2,000 lbs.
• Single Line Lift: 20 ft.
• Cable Diameter: 1/4 in.
