Klein Tools VDV501-851 VDV Cable Tester Kit with Scout Pro 3 Tester, Remotes, Adapter, Battery
The Scout Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
Features:
- Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
- Measure cable length up to 2000 feet (610 m)
- Test for Open, Short, Miswire or Split-Pair faults

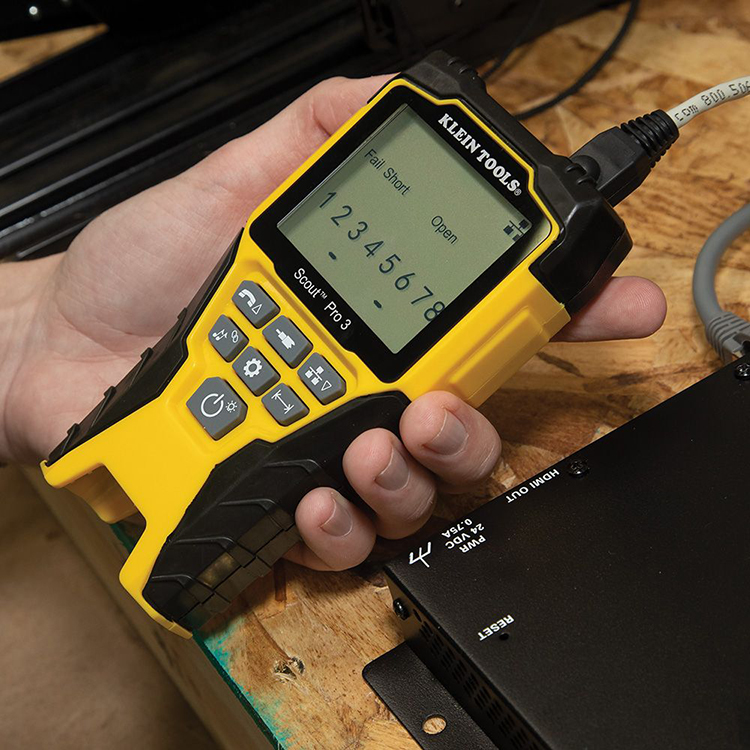

- Backlit LCD screen displays cable length, wiremap, cable ID and test results
- Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

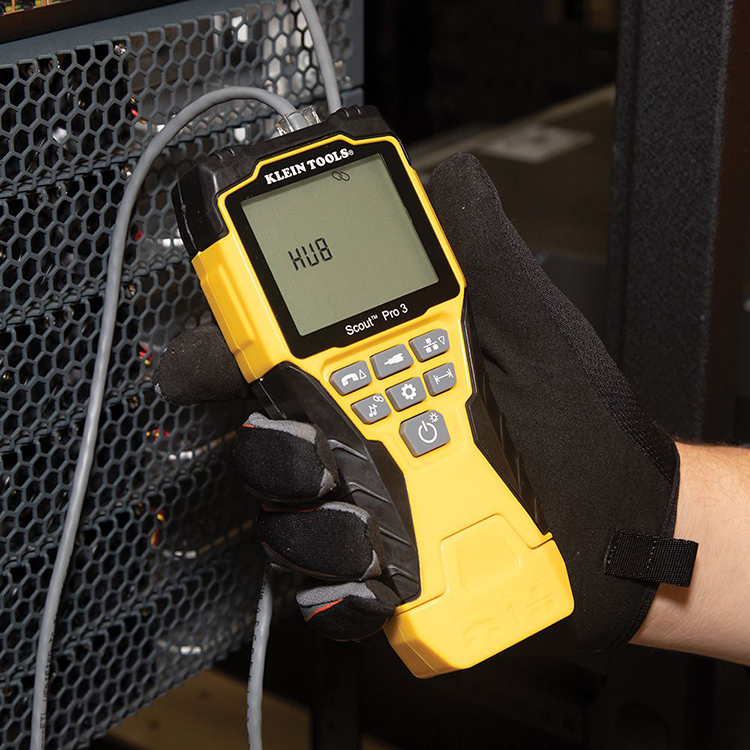

- Hub blink mode to identify port location on a hub or a switch

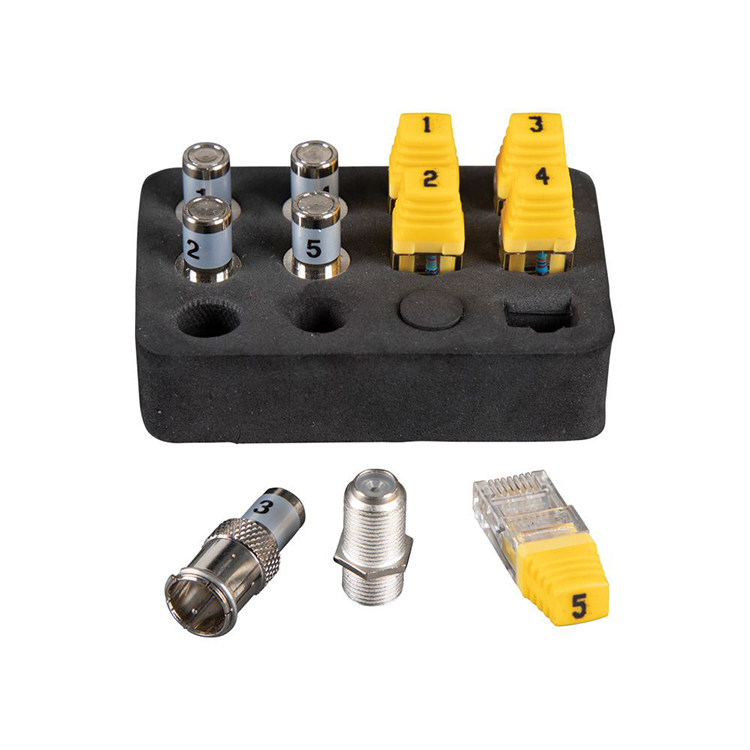

- LanMap and CoaxMap Location Remotes (5 each) map and ID multiple cable runs in a single step

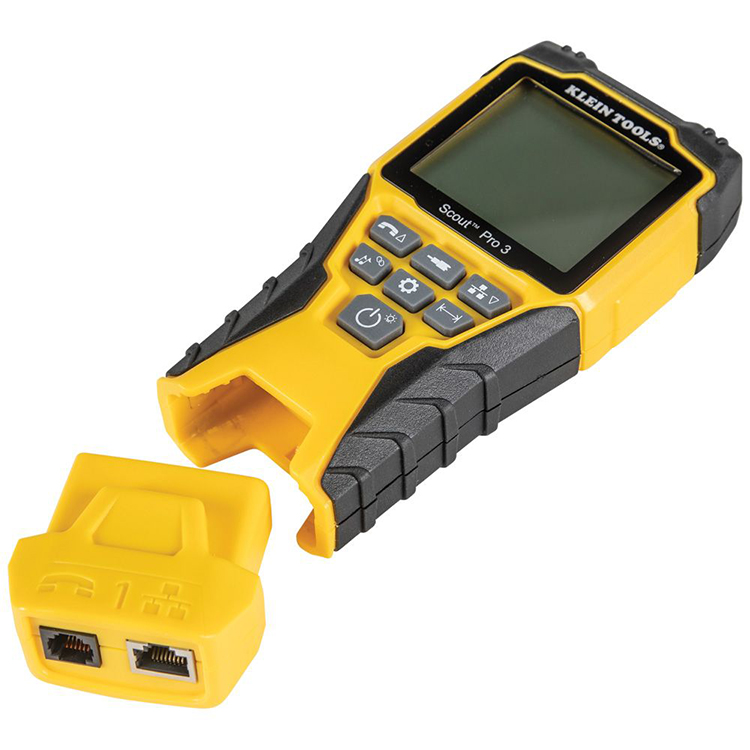

- Includes voltage warning, shield detection, auto power off, low battery indicator and a self-storing remote
- Auto Power-off feature to conserve battery life (9V included)

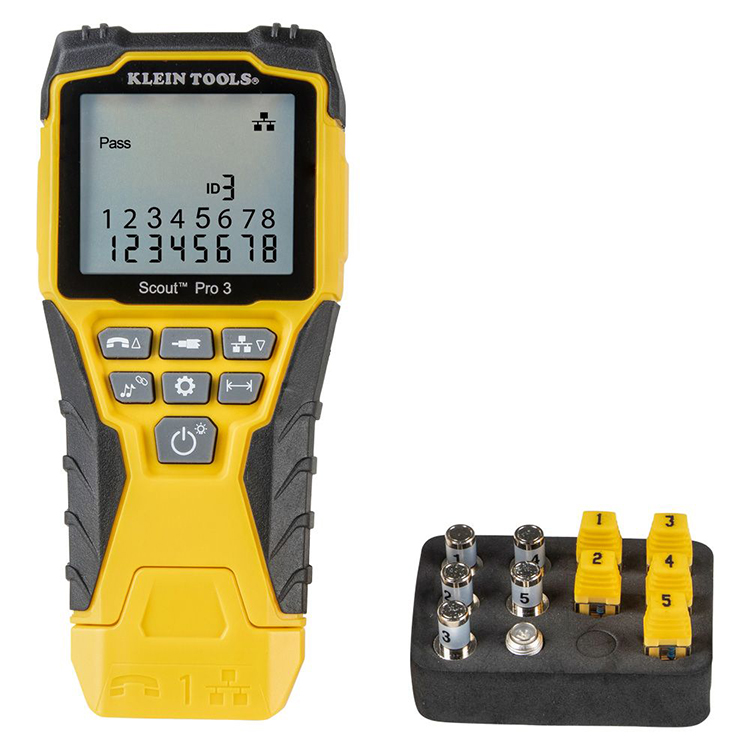

- Kit includes: Scout Pro 3 Tester, (1) self-storing remote, (5) LanMap RJ45 locator remotes, (5) CoaxMap F-connector locator remotes, (1) coax F-connector, manual and 9V battery
Specifications:
- Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
- Application: Cable Testing
- Special Features: Measures Cable Length; Backlit LCD; Hub Blink
- Cable Type: DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
- Overall Length: 7" (17.8 cm)
- Overall Height: 3" (7.6 cm)
- Overall Width: 1.25" (3.2 cm)
- Material: Plastic and Metal
- Test-n-Map ID Remotes: (1) Self-Storing
- Location ID: (5) RJ45 Data and (5) F-Coax connector Locator Remotes

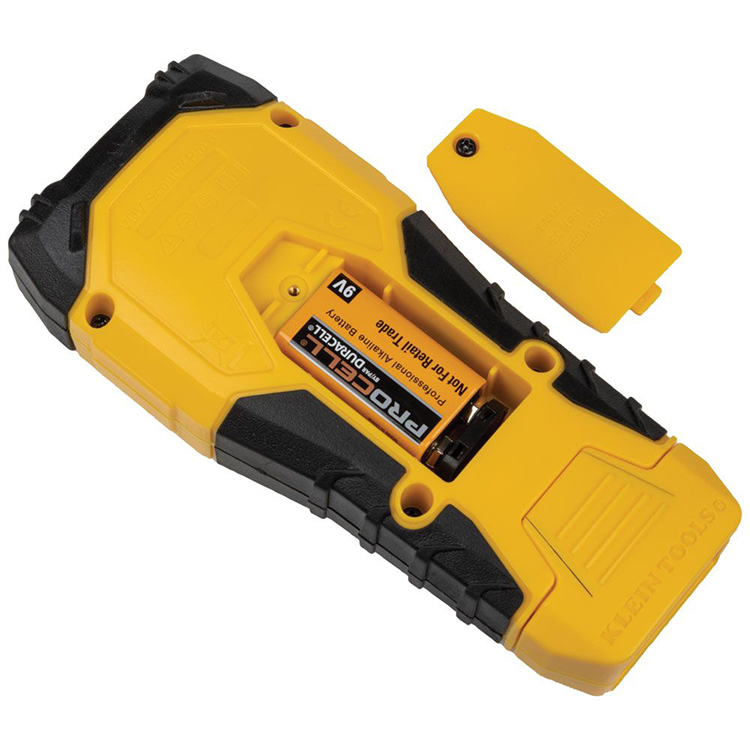

- Batteries: 9V Alkaline
- Battery Life: 50 Hours Active
- Drop Protection: 2 m
- Supported Remotes: 18
- Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
- Display: Backlit LCD
- Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
- Faults Detected: Open, Short, Miswire
- Test & Measure Types: Ethernet / Data and Coaxial
- Included: Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-connector Locator Remotes, (1) Coax F-adapter, Manual, (1) 9V Battery
- Standard: CE
- Weight: 1.2 lb (0.5 kg)
- UPC: 092644692260
