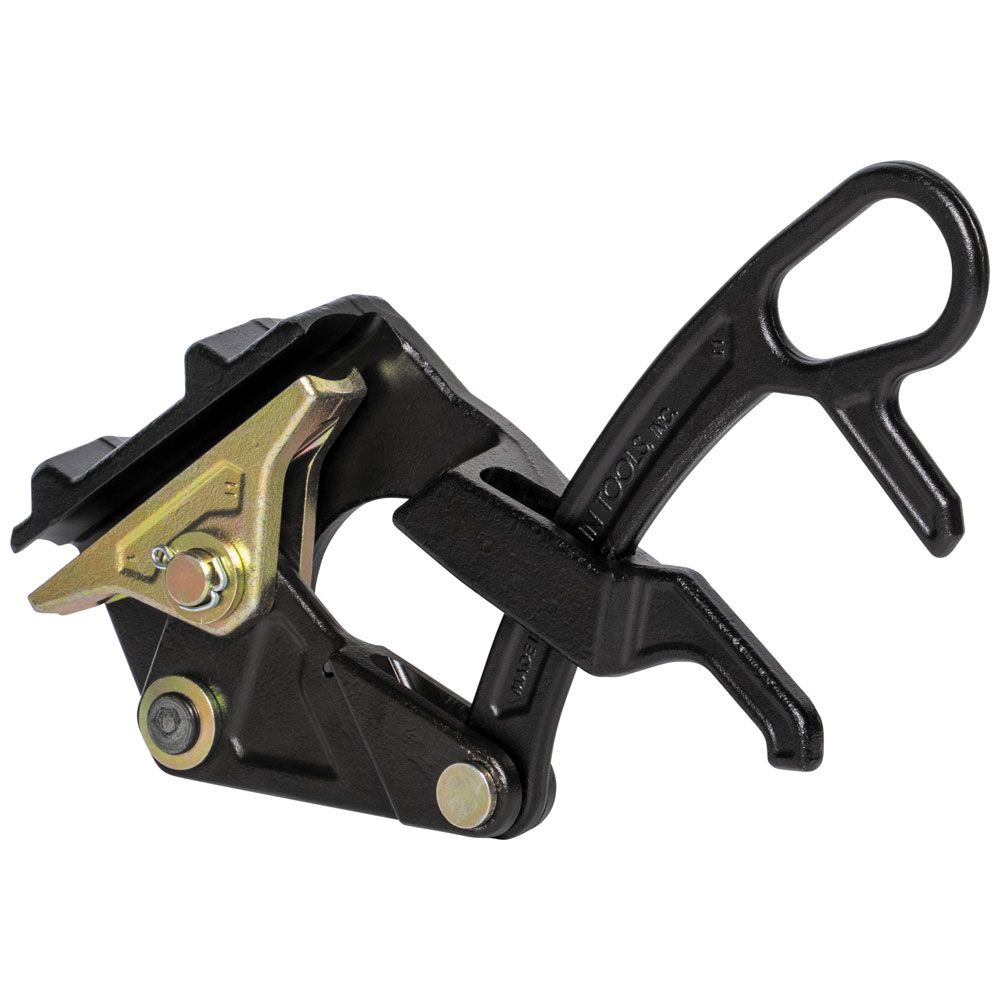

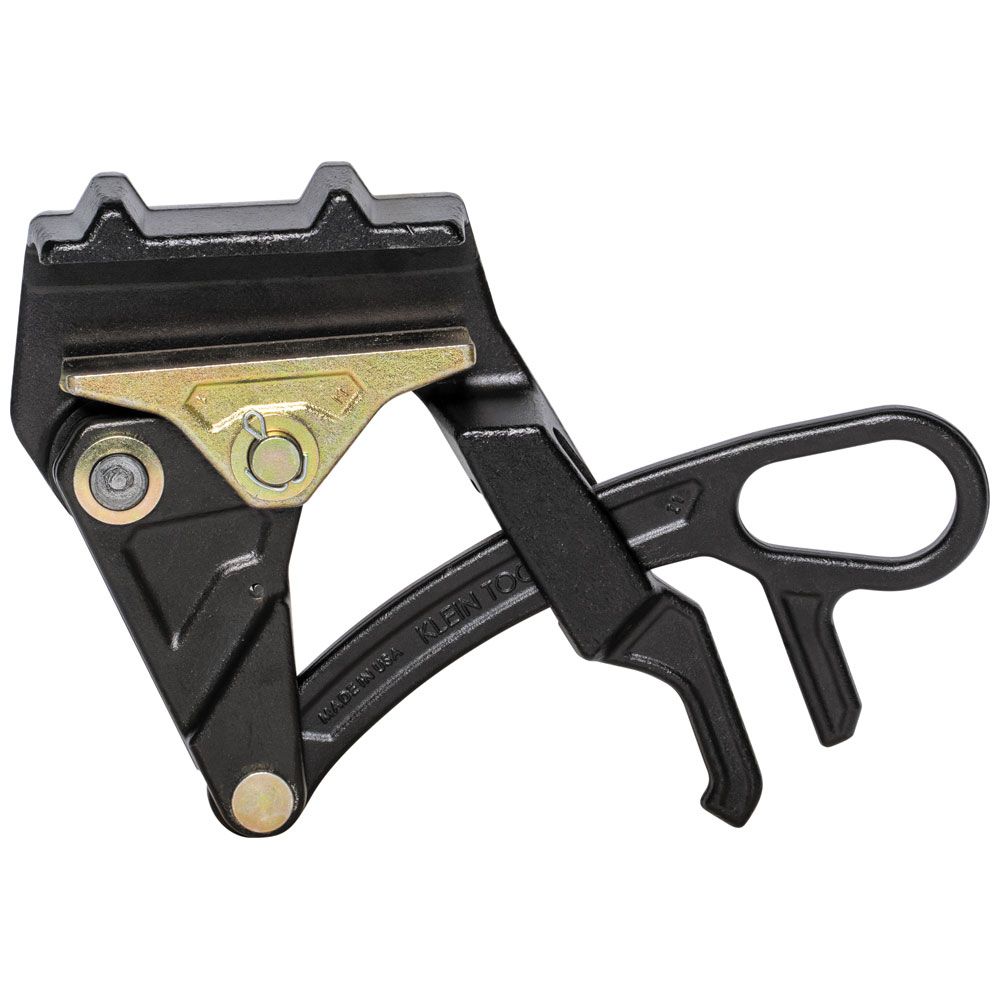

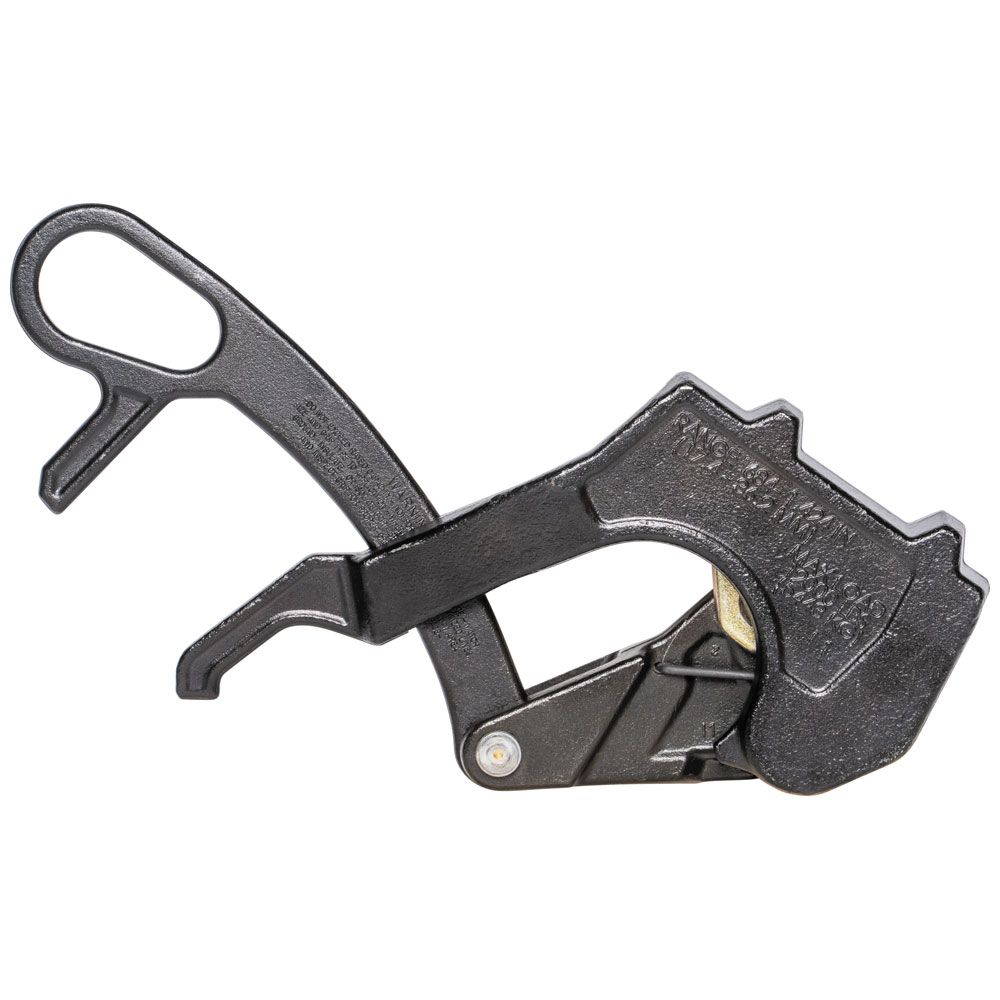

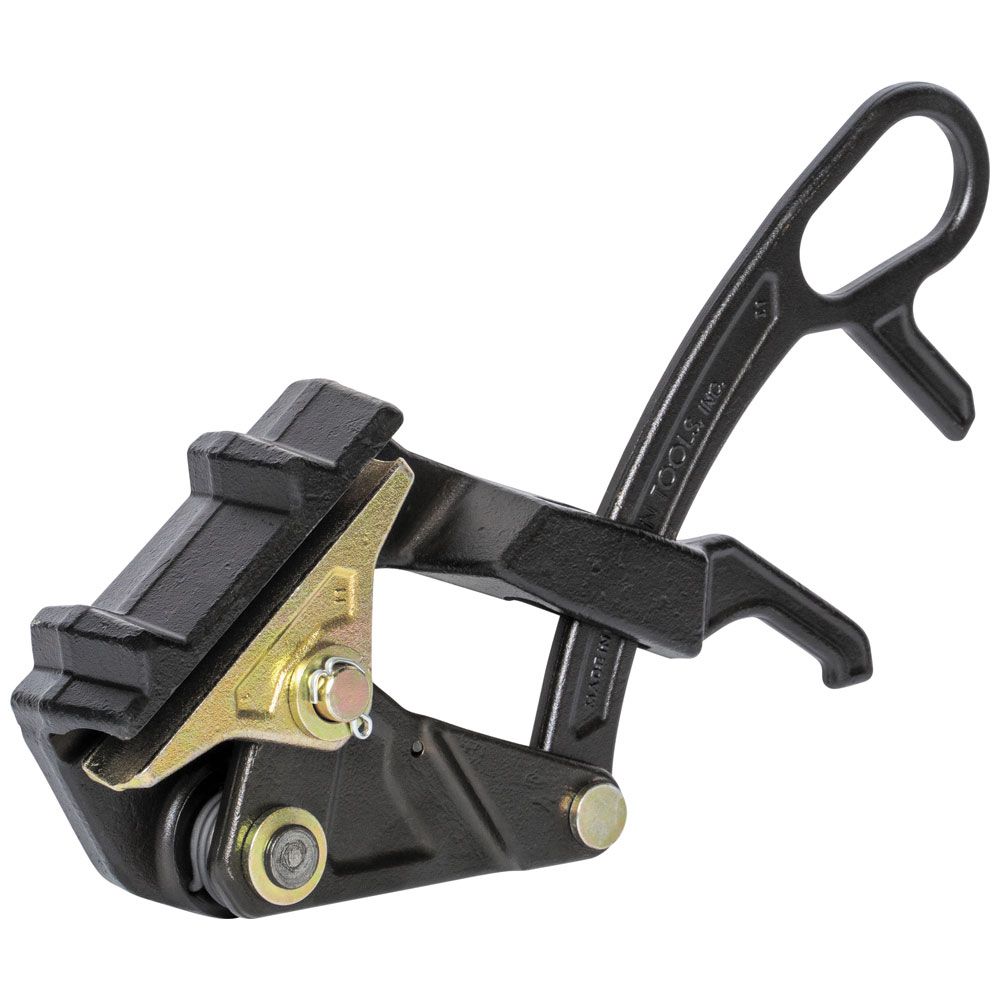

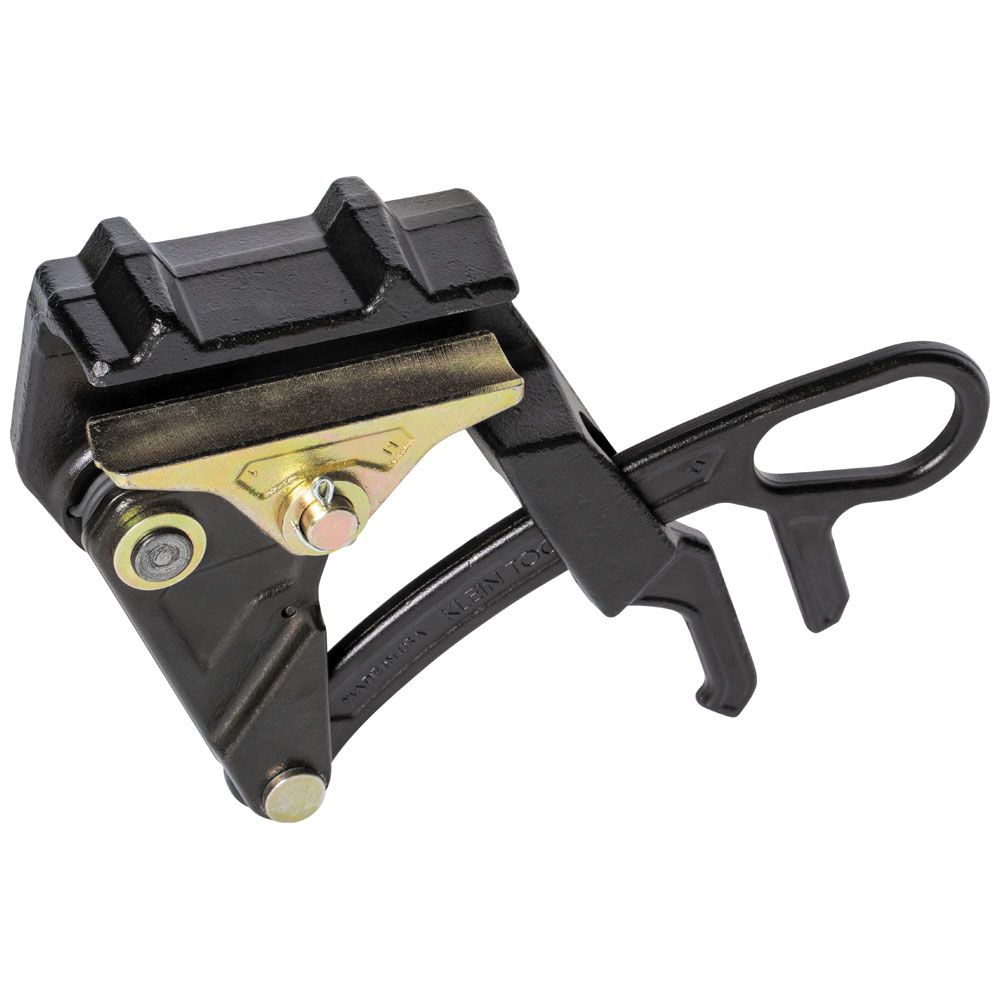

Klein Tools 16499 Wide Range Transmission Grip

Klein Tools 16499 Wide Range Transmission Grip

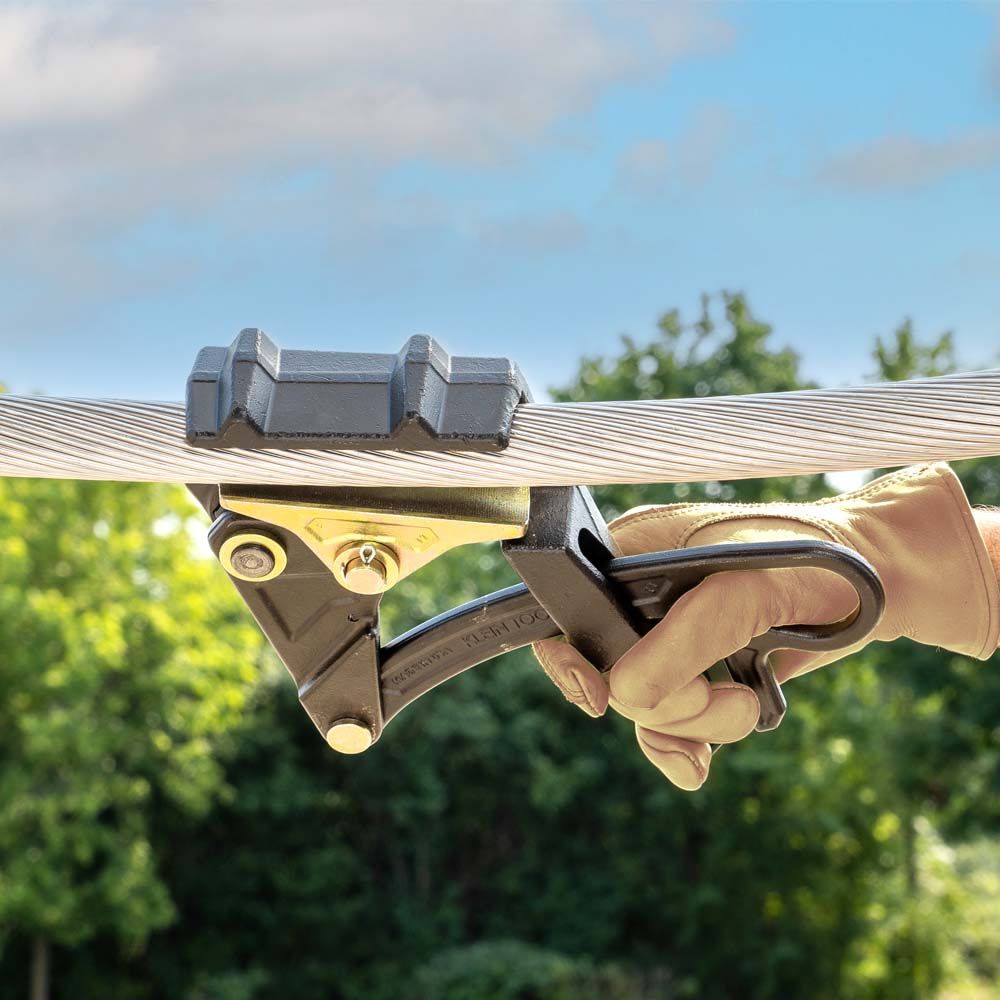

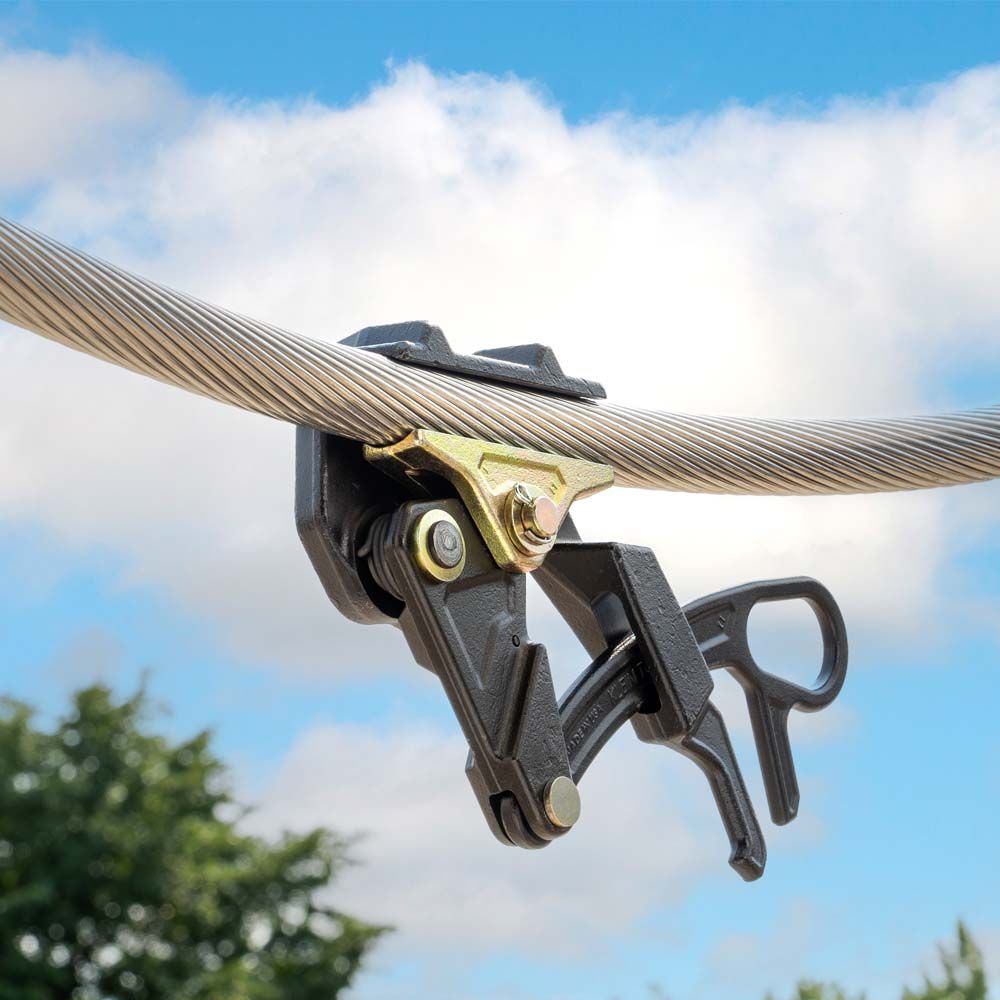

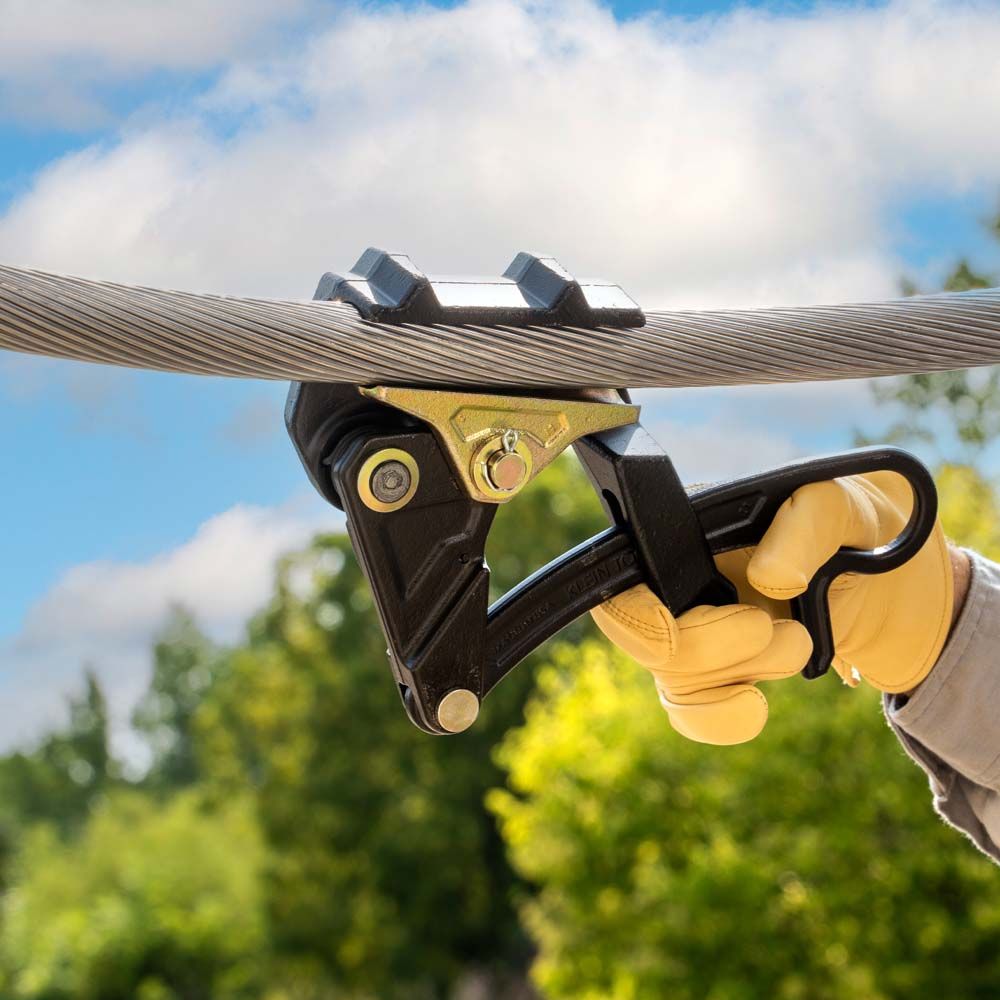

The Klein Tools 16499 Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC, and bare copper cables. Holds a wide range of cable from 0.68 inches to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000 pounds (5443 kg).

Features:

• Securely pulls ACSR, AAC, and bare copper cables
• Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
• Fine Sawtooth jaw geometry provides greater grip strength
• Spring closes grip on cable to hold the initial position
• Made in the USA

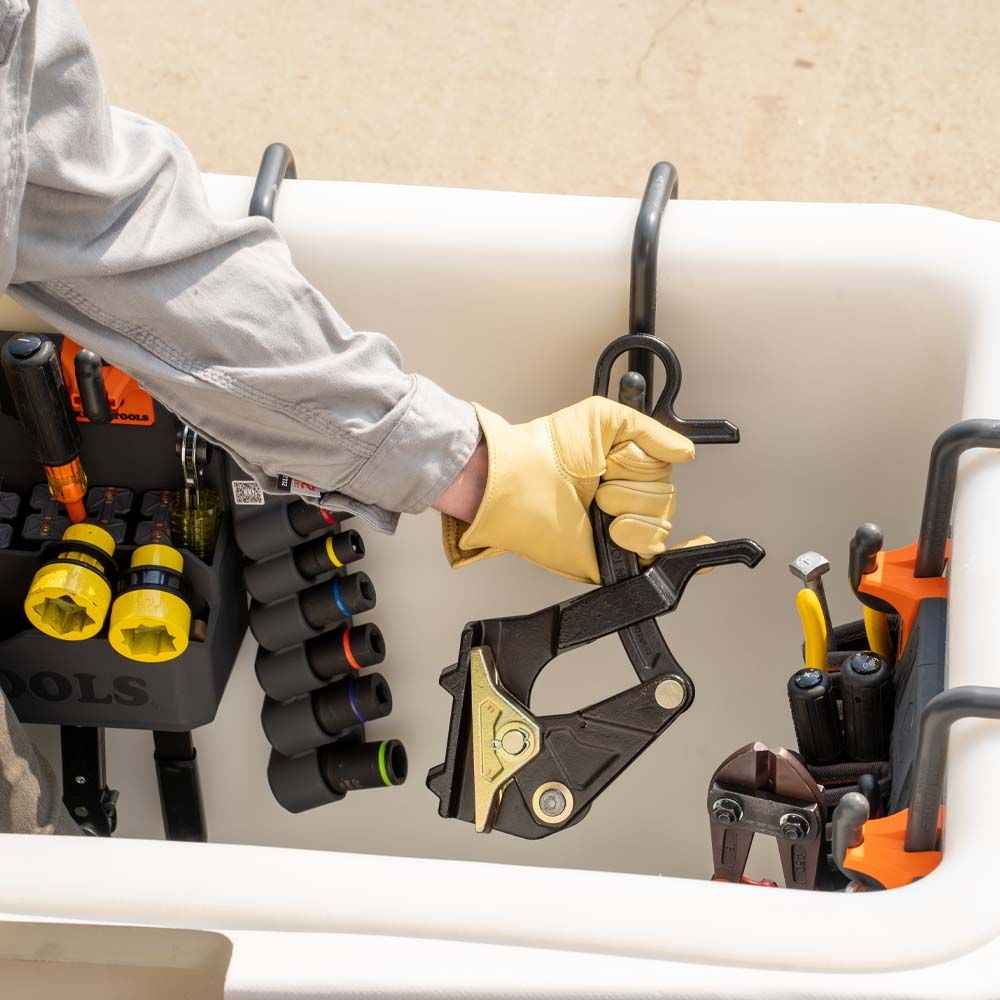

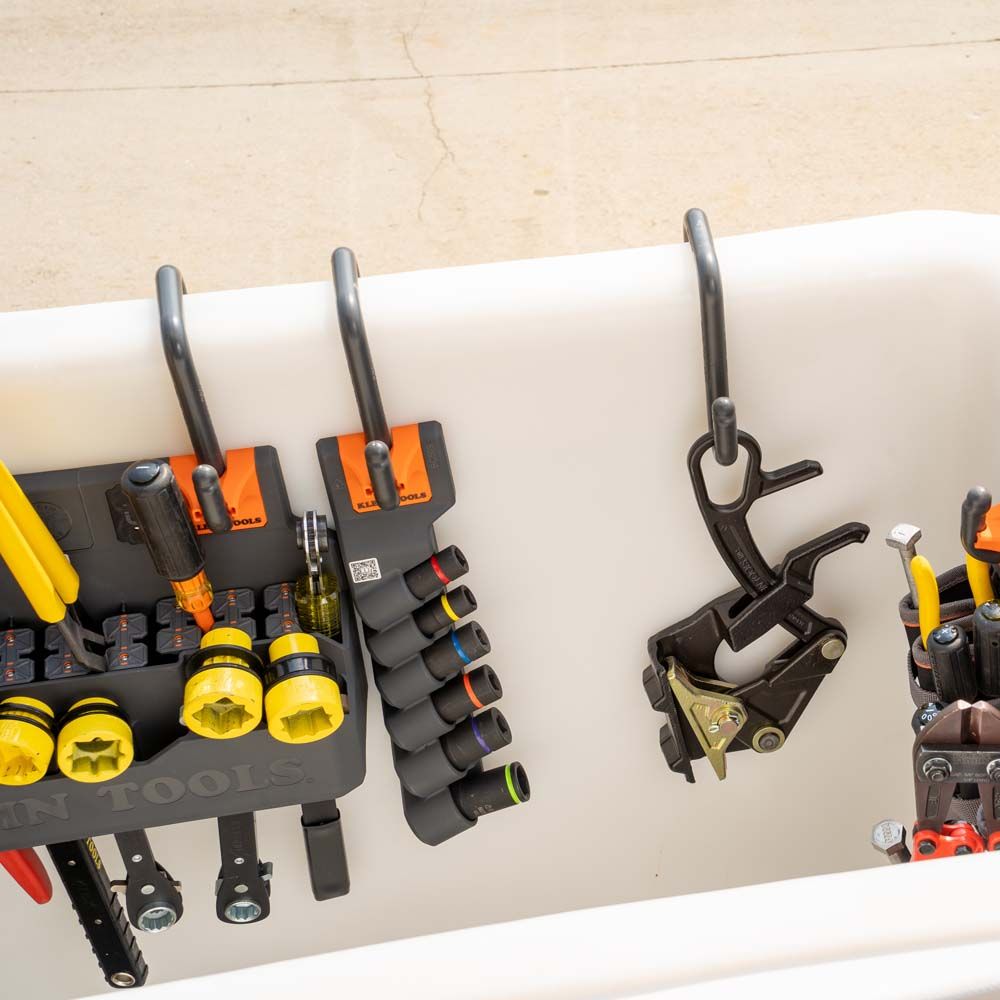

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches, and tackle blocks
• Max Safe Load of 12,000-Pound (5443 kg)
• Patent pending design

Specifications:

• Type: Parallel Jaw Grip
• Application: Wire Pulling

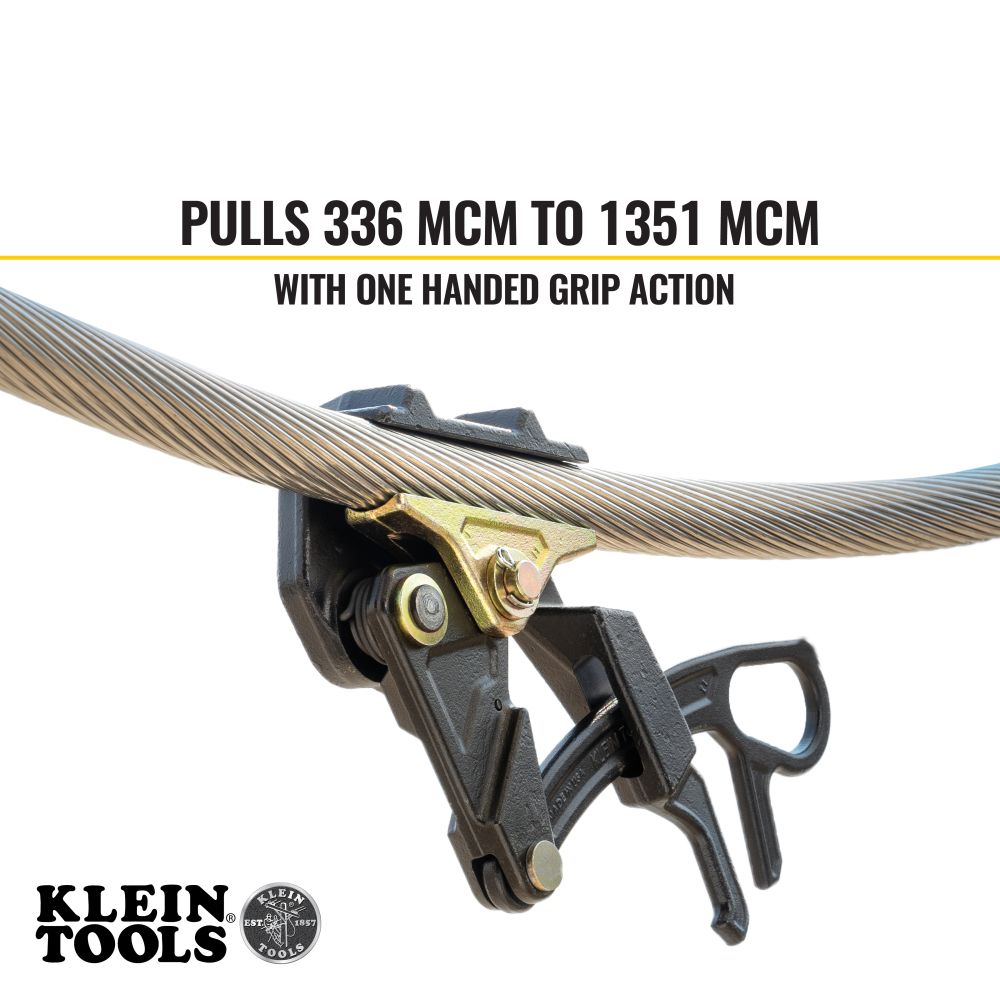

• Special Features: One-Handed Grip
• Overall Length: 13.1'' (33.3 cm)
• Overall Height: 8.1'' (20.6 cm)
• Overall Width: 2.4'' (6.1 cm)
• Material: Steel
• Cable Type: ACSR, AAC, Bare Copper
• Cable Diameter: 0.68'' to 1.42'' (17.3 to 36.1 mm)
• Hot Latch: N
• Swing Latch: N
• Spring: Y
• Locking Handle: Y
• Jaw Type: Round
• Jaw Length: 4.85'' (12.3 cm)
• Maximum Safe Load: 12,000 lb (5443 kg)
• Weight: 8.1 lb (3.7 kg)
• UPC: 092644470769

Warnings:

• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match the proper size and type of grip to the application.
• Before each use, clean the jaw area and inspect the grip for proper operation to avoid slippage.
