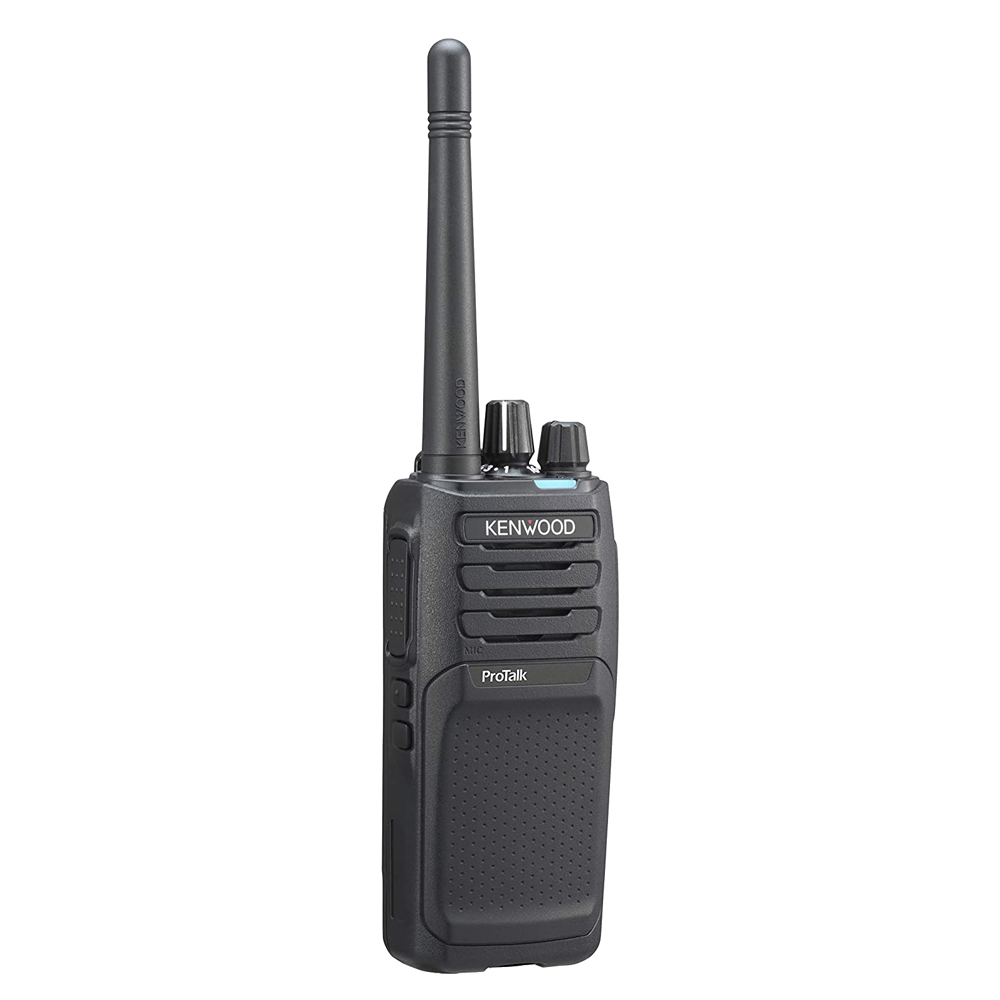

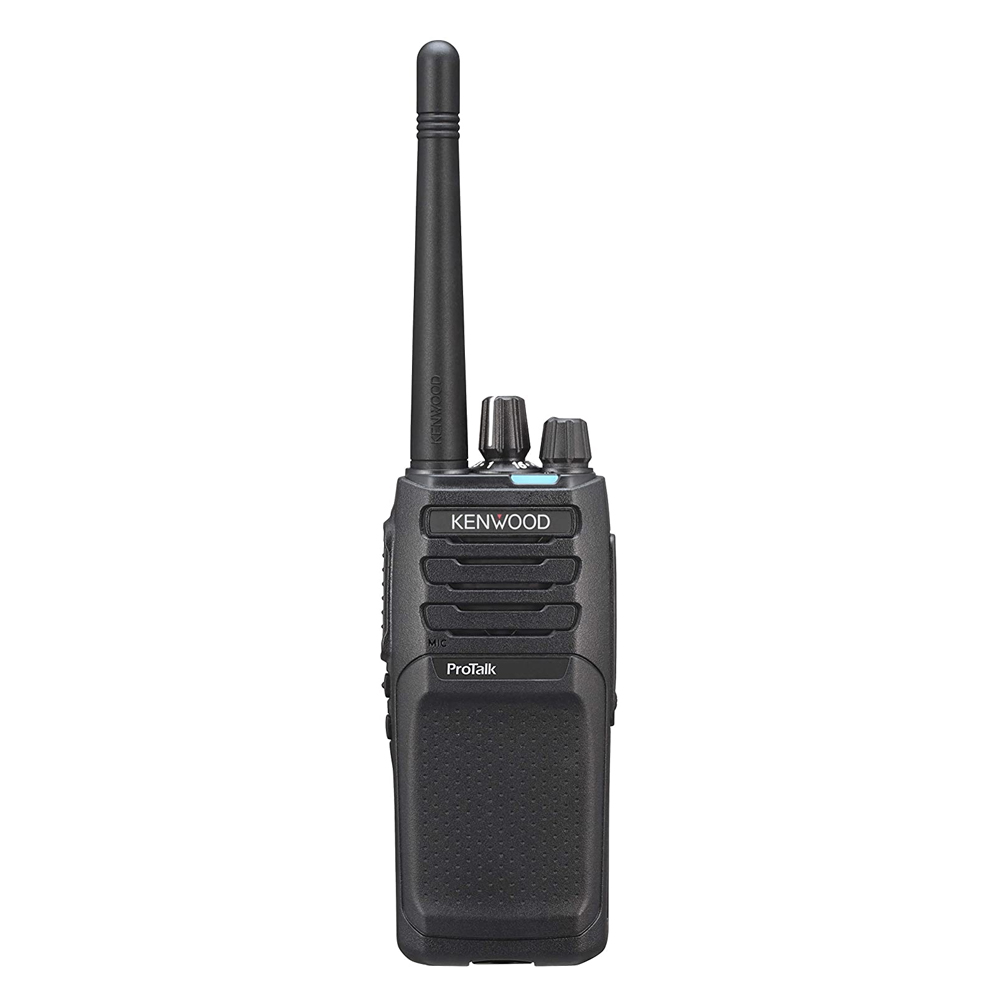

Kenwood NX-P1200AVK Analog 5-Watt 64 Channel VHF Radio

Kenwood NX-P1200AVK Analog 5-Watt 64 Channel VHF Radio

The Kenwood ProTalk NX-P1200AVK is a 5-Watt 64-channel analog VHF two-way radio that can be upgraded to operate on NXDN or DMR digital standards based on your specific needs. This portable radio is engineered to provide ease of use with 16 easily accessible channels on the dial, with a total of 4 accessible radio zones. It offers high-quality audio clarity and durability at an affordable price.

Features:

• 64 channels total
• 4 zones/16 channels per zone
• 5-Watts of Power
• Preset frequencies: 151 to 159 MHz
• Can communicate with existing analog two-way radios
• Superior clarity
• Easy to operate
• Channel confirmation mode
• Up to 12 hours of battery life between charges
• Battery saver
• Low battery alert
• Fully programmable
• Programmable function keys
• Repeater capable
• Upgradeable to NXDN or DMR mixed-mode digital

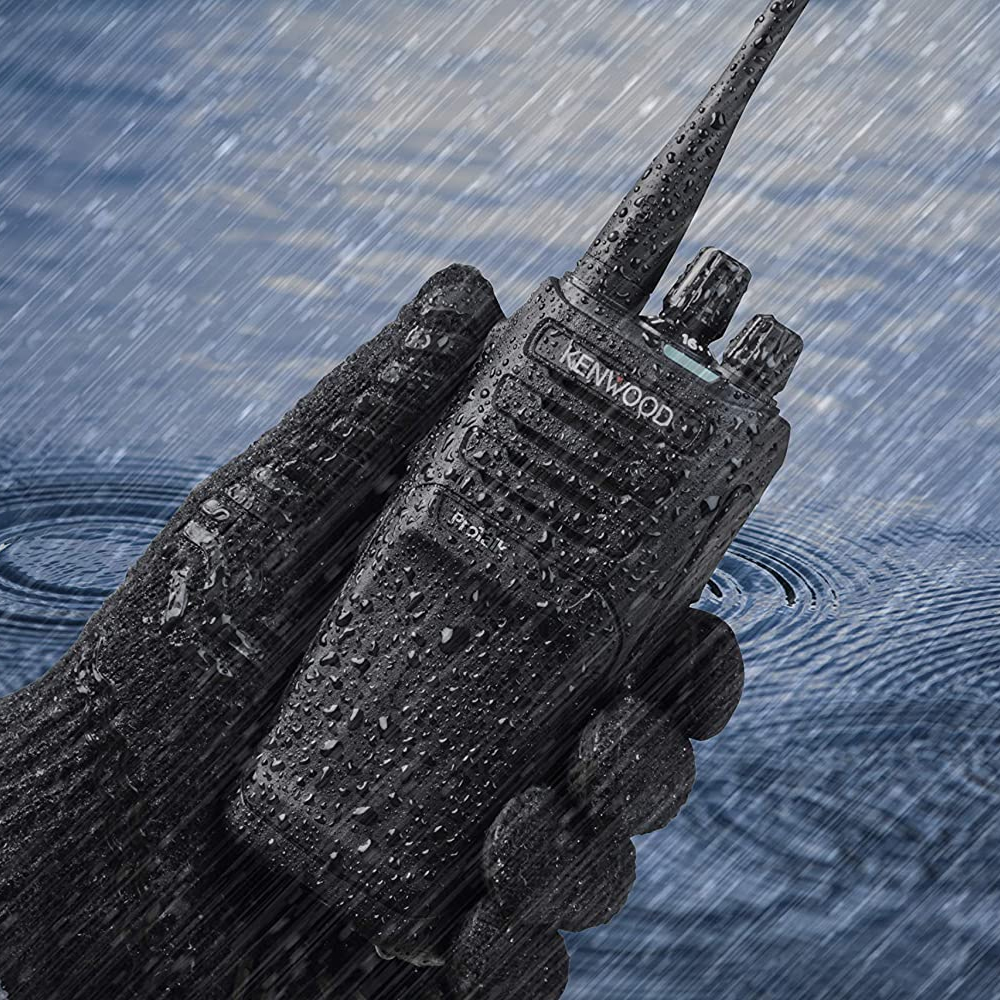

• Military standards for water and dust resistance

What's Included:

• 1 Kenwood NX-P1200AVK 5-Watt digital VHF two-way radio
• 1 Heavy-duty Kenwood KNB-45L lithium-ion battery
• 1 Kenwood KBH-10 spring action belt clip
• 1 Kenwood KSC-35K drop-in charging tray with charging cord
• 1 Kenwood KRA-26 removable antenna
• Owner’s manual
• 3-Year manufacturer’s warranty

Specifications:

• Pre-Set Frequencies: 151-159 MHz
• Max Channels per Radio: 64 Channels
• Number of Zones: 4
• Max Channels per Zone: 16
• Channel Spacing (Analog): 25 / 12.5 kHz
• Power Supply: 7.5 VDC ±20 %
• Battery Life (5-5-90)
  • KNB-45L (2000mAh): Approximately 11.5 Hours
  • KNB-69L (2550mAH): Approximately 14.5 Hours
• Operating Temperature (Radio Only): -22°F to +140°F (-30°C to +60°C)
• Frequency Stability: ±0.5 ppm
• Antenna Impedance: 50 Ω
• Weight:
  • Radio Only: 160 grams
  • Radio with KNB-45L/82LCM: 280 grams
  • Radio with KNB-69L: 295 grams

Receiver Specifications:

• Sensitivity: Analog @ 12.5/25 kHz (12 dB SINAD): 0.20 / 0.24 μV
• Selectivity: Analog @ 12.5/25 kHz: 68 dB / 74 dB
• Intermodulation Distortion: 70 dB
• Spurious Rejection: 70 dB
• Audio Distortion: 7%
• Audio Output:
  • 1 W / 12 Ω (Internal Output)
  • 500 mW / 8 Ω (External Output)

Transmitter Specifications:

• RF Power Output (High/Low): 5W / 4W / 1W
• Spurious Emission: 70 dB
• FM HUM & Noise (Analog @ 12.5 / 25 kHz): 40 dB / 45dB
• Audio Distortion: 2%
