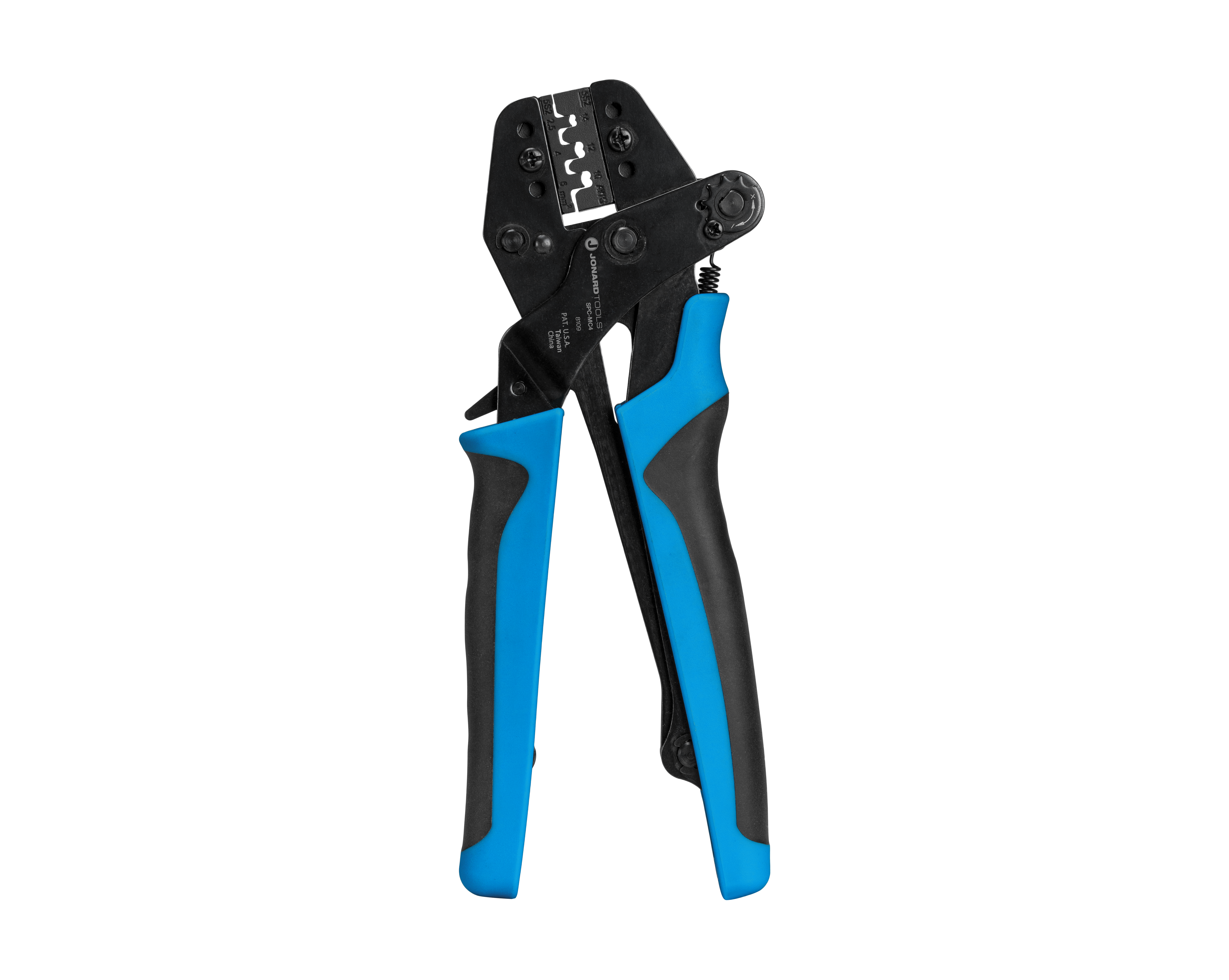

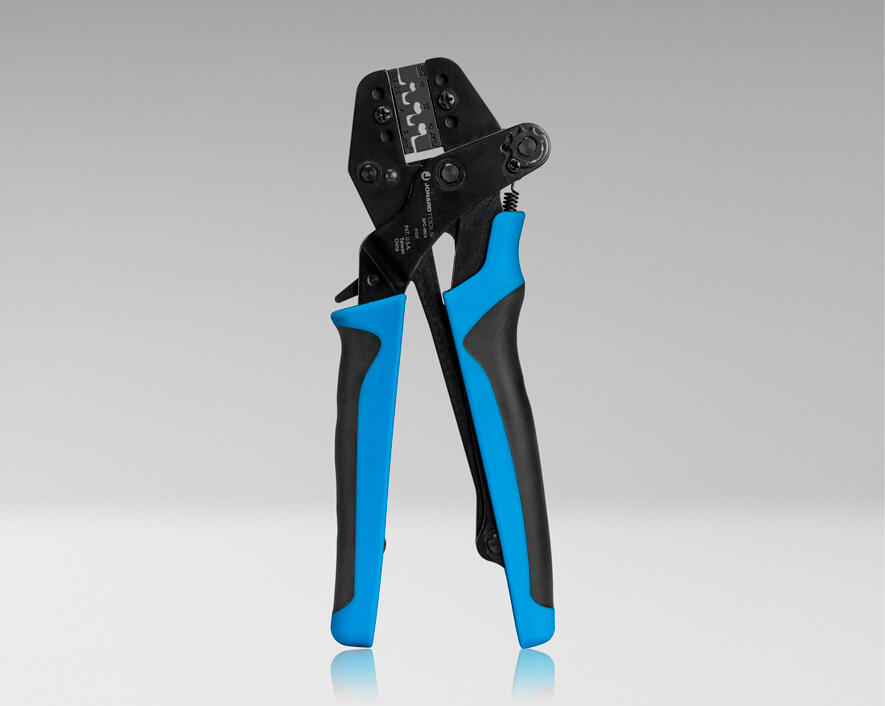

Jonard Solar Panel Crimper with Included MC4 Die
The Jonard Solar Panel Crimper with included MC4 Die that is designed to crimp MC4 connectors onto 14, 12, or 10 AWG (2.5 / 4.0 / 6 mm2) solar panel wire. The crimper is the perfect tool for installing and maintaining solar panel connectors. This crimper features the following:
Features:
- Parallel jaws with adjustable pressure-regulating gear and self-locking design crimp solar panel connectors perfectly every time
- Built-in ratchet makes crimping quick and easy
- Made of hardened carbon steel with a black oxide finish for strength and durability
- The dual-component grip provides greater comfort and ergonomics
- Able to crimp MC3 connectors using an MC3 die (SPD-MC3), sold separately
Specifications:
- Application Type: MC4 Solar Panel Crimping
- Connector Type: MC4 Male/Female Solar Panel Connectors, can also crimp MC3 connectors using a separate die
- Wire Diameter: 14, 12, or 10 AWG or (2.5 / 4.0 / 6 mm²)
- Material: Carbon Steel with Black Oxide
- Dimensions: 8.75" x 4" x 0.88" (22.23 cm x 10.16 cm x 2.24 cm)
- Weight: 1.32 lb (599.28 g)
- UPC #: 811490018181
